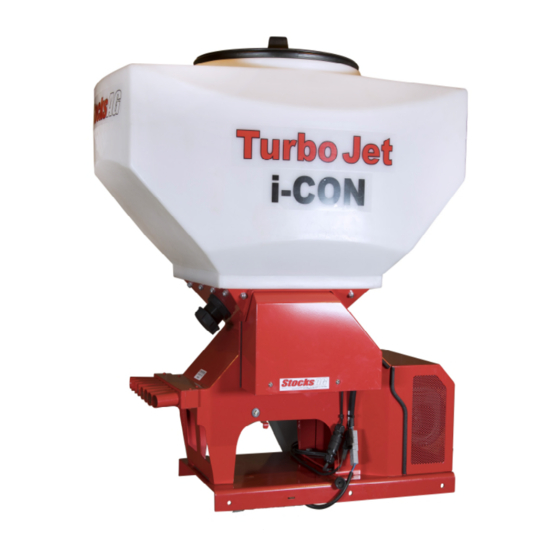

Stocks AG Turbo Jet 8 i-CON Operating Manual And Parts List
  1. Manuals
  2. Brands
  3. Stocks AG Manuals
  4. Farm Equipment
  5. Turbo Jet 8 i-CON
  6. Operating manual and parts list

Stocks AG Turbo Jet 8 i-CON Operating Manual And Parts List

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Original Instructions, Revision 1 August 2020
Turbo Jet 8 & 10 i-CON
Original Operating Manual
and Parts List
Read carefully before installation
and operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: 00 44 (0) 1945 464 909 Fax: 00 44 (0) 1945 464985 www.stocks-ag.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turbo Jet 8 i-CON and is the answer not in the manual?

Questions and answers

Related Manuals for Stocks AG Turbo Jet 8 i-CON

Summary of Contents for Stocks AG Turbo Jet 8 i-CON

  • Page 1 This document must not be copied duplicated or distributed without prior consent . All and patent rights apply STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK. Tel: 00 44 (0) 1945 464 909 Fax: 00 44 (0) 1945 464985 www.stocks-ag.co.uk...
  • Page 2 Index Revision 06.2020 Section Page No. Index 3.1 - 3.2 General information & Technical data 3.2 - 3.4 Intended use & Unintended use Contents of the EC Declaration of Conformity 5.1 - 5.2 Machine identification & Warranty Safety Safety WARNING decals 8.1 - 8.4 Emergency stop, Storage, Optional covers, Disposal General maintenance 10.1...

  • Page 3: General Information

    3 .2 Technical data Model: Turbo Jet 8 i-CON and Turbo Jet 10 i-CON Hopper capacity: 240 litre or 400 litre 240 litre machine: Net weight: 90kg with Spreader Kit 120kg...
  • Page 4 Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:...

  • Page 5: Machine Identification

    5.1 Machine identification The machine can be identified by the serial number decal mounted on the steel chassis to the left of the feed cassette 5.2 Warranty We provide a 12 month warranty as of the date of invoice (your invoice for the machine which will serve as a warranty certificate). This warranty is applicable for cases of material or construction faults and does not include parts that are damaged by normal or excessive wear.
  • Page 6 After working the machine ensure that any unused product is returned safely to its original packaging Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied If unsure contact the material supplier for more information.
  • Page 7 7 Safety WARNING decals Important ; observe this safely decals on the machine WARNING Read and understand the Operators Manual instructions before operating this machine Operator errors can result in serious injury WARNING Danger moving parts Risk of serious injury whilst the machine is in operation WARNING Risk of injury...
  • Page 8 Heavy Duty White PVC covers available for both the 240L and 400L machines Fitted with eyelets and bungie cord for easy attachment Please contact your locals Stocks AG dealer for more information 8 .4 Disposal Ensure that any persons handling the machine are aware that the machine may have been used to apply toxic chemicals and so the appropriate personal protection equipment should be worn.

  • Page 9: General Maintenance

    9 General maintenance WARNING Always ensure the power supply is disconnected before any maintenance work or cleaning of this machine by unplugging the power cable or removing the 40amp fuse in the power cable. Ensure the parent machine is stationary and parked on level ground before working on the machine The machine must be checked regularly by the operator for any damage loose bolts or electrical connections, vibrations, unusual sounds, and to ensure they function correctly.

  • Page 10: Fan Inspection

    10.1 12v Fan inspection WARNING Always isolate the power before inspecting or servicing the machine To inspect the fan unit undo the two over-centre catches and hinge up the guard as shown below. Use an air line and brush to clean the fan blades regularly to maintain performance and prevent eccentric running.
  • Page 11 11.1 Hopper emptying procedure The hopper drain cap can be removed to help empty the hopper. Any remaining product is best removed by using an industrial vacuum before the feed block is removed from the machine. Once the feed block has been removed from the machine dispose of any remaining product held in the feed block.

  • Page 12: Base Plate

    12.1 Installation guide (Page 1 of 2) The Turbo Jet can be used for a wide variety of seeding applications in conjunction with a wide variety of parent implements. It is not practical to supply tailored mounting brackets for every implement on the market, and so the final attachment of the Turbo Jet to the implement is the responsibility of the supplying dealer or end user.
  • Page 13 13 Installation guide (Page 2 of 2) Spreader Plates The machines have 8 or 10 outlet tubes, feed hoses can be split with the black “ Y” connectors provided, to give 16 or 20 spreader plates. Depending on the implement width and if you require a broadcast or band sown effect, use as many outlets as required, with or without the spreaders.

  • Page 14: Machine Components

    The 6m instrument lead connects to the junction box of the Turbo Jet, and runs to the control panel in the tractor cab. NOTE Extension power and instrument cables are available if required. Please contact your local Stocks AG dealer for more information.
  • Page 15 15 Machine components (Page 2 of 2) Stocks AG i-CON instrument A touch screen instrument which controls the sophisticated, CAN-based control system that provides complete control and monitoring of the applicator unit. Its primary function is to automatically maintain a pre-set target application rate as the forward speed varies, with on-the-move spot adjustment of the rate as required.

  • Page 16: Wiring Diagram

    16.1 i-CON Control system All control system components integral to the Seed Applicator Unit are factory fitted in. The Instrument has a 4.3" Colour Touch Screen which has 4 basic menu keys (see page 16) Separate heavy-duty power cable and head unit leads interconnect the tractor and the Seed Applicator Unit. The following components need to be installed during fitment (packed in hopper from factory) ...
  • Page 17 17.1 i-CON Instrument functions Application Rate (kg/ha or Seeds/m ) and Forward Speed / Area and % Nudge from Target Operating Range (0-100%) Nudge – Increase Manual Pre-Start Nudge – Decrease Forward Speed or Area display Set Application Rate Metering On/Off - Fan/Spinner On/Off Metering Status Fan/Spinner Status...
  • Page 18 18 Feed block assembly setup The moving parts of this machine are powerful and can cause injury. Be especially WARNING careful whilst performing calibration tests. WARNING Always observe all application standards and guidelines provided by the product manufacturer as some seed dressings and granular products may be toxic ! NOTE if unsure contact your seed or product supplier for more information.
  • Page 19 19.1 OPTIONAL Feed block assemblies For some applications such as applying very small seed or granular product a “Norwood” feed block assembly is recommended. This block has been developed to eliminate finer products from leaking around the feed rollers and into the airstream. Part Number;...
  • Page 20 20 i-CON Calibration (Page 1 of 2) You will need the supplied plastic calibration tray, and an accurate set of scales which weighs in grams At the Junction Box 1. Switch the fan OFF at the junction box 2. Release the two over-centre catches and drop the hinged panel under the cassette manifold 3.
  • Page 21 21 i-CON Calibration (Page 2 of 2) 1. For an Manual Calibration press and hold the Prime button on the junction box, the larger the quantity dispersed the higher the accuracy the final calibration factor will be, release the prime button once sufficient product has been dispensed 2.

  • Page 22: Parts Drawing

    22 Parts drawing...

  • Page 23: Parts List

    23 Parts list (Page 1 of 3) Item Part No. Description Qty. Remarks TJ400A Chassis (8 outlet) TJ400B Chassis (10 outlet) TJ422 Base Plate (8 & 10 outlet) TJ425A Fan Guard (8 outlet) TJ425B Fan Guard (10 outlet) TJ418 Motor Guard (8 outlet) TJ459 Motor Guard (10 outlet) TJ429...
  • Page 24 24 Parts list (Page 2 of 3) Item Part No. Description Qty. Remarks FJ033A M8 Fem Knob GRO03 Rubber Grommet TJ053 Rubber Washer TJ054 Rubber Washer GA046B Agitator Motor TJ040 Cassette Seal TJ041 Junction Box Seal GA103 Flanged PVC Bush TJ055-1 PVC Blank Cap TJ430...
  • Page 25 25 Parts list (Page 3 of 3) Item Part No. Description Qty. Remarks TJ050 Tank Outlet TJ051 TJ052 Blanking Cap TJ251A i-CON Hopper Level Sensor M4-006 M4 Flat Washer M4-003 M4 Setscrew TJ471 Tank Baffle (8 outlet) TJ472 Tank Baffle (10 outlet) TJ196A 8 Outlet Feed Block Assembly TJ196E...
  • Page 26 26 Feed roller kits...
  • Page 27 27 Parts list (Page 1 of 2) Item Part No. Description Qty. Remarks TJ195A 8 Outlet 5mm Small Seed Roller Kit consisting of the following; TJ199 Stainless Steel Shim TJ200 5mm Small Seed Roll (White) TJ201 5mm Small Seed Roll (Yellow) TJ203 24.6mm Spacer TJ204...
  • Page 28 28 Parts List (Page 2 of 2) Item Part No. Description Qty. Remarks TJ197C 10 Outlet 5mm Small Seed Roller Kit consisting of the following TJ199 Stainless Steel Shim TJ200 5mm Small Seed Roll (White) TJ201 5mm Small Seed Roll (Yellow) TJ210 18mm Spacer TJ205...
  • Page 29 29 Notes page...
