Page 1

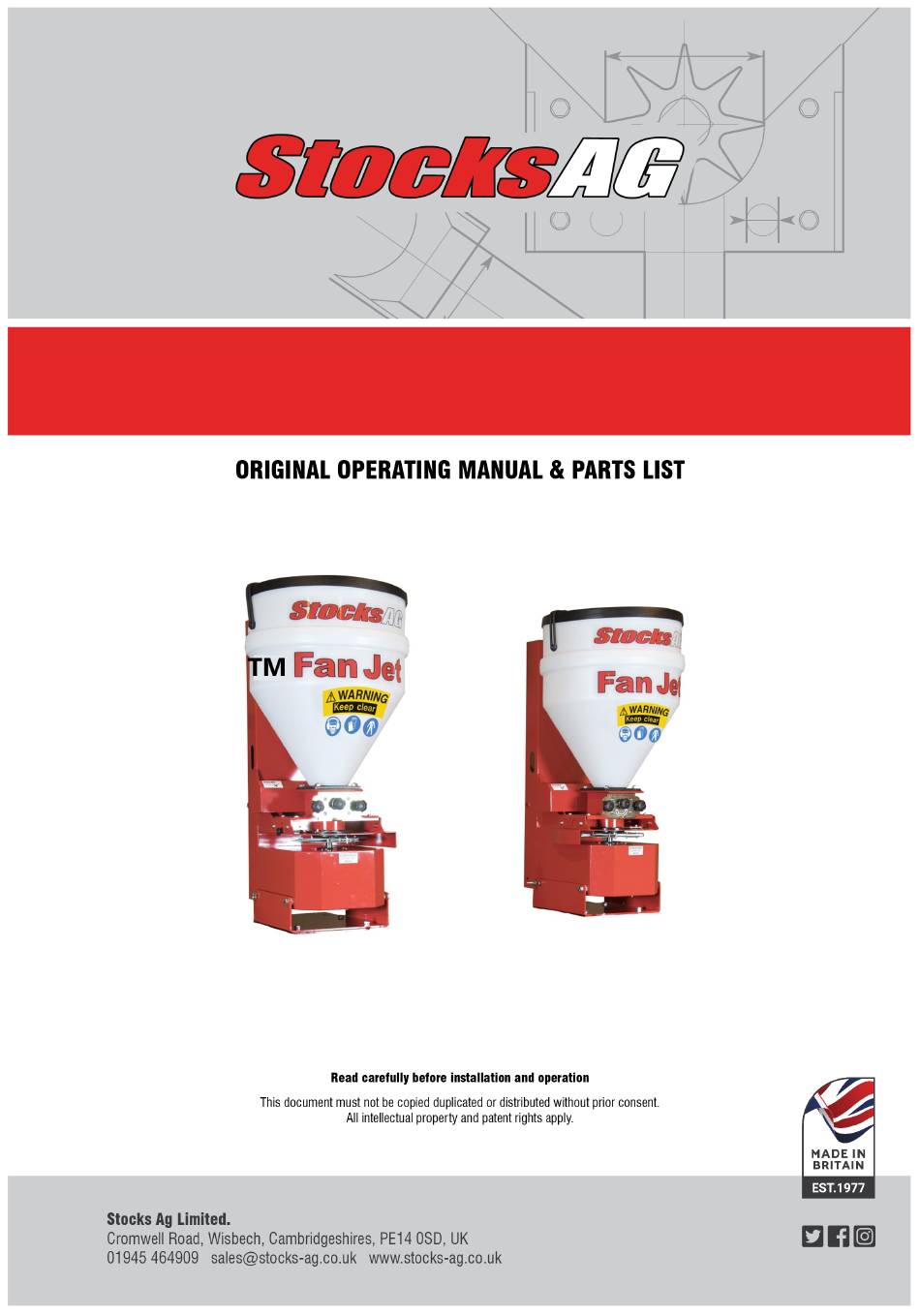

Revision 3 05/06/23 Fan Jet Duo TM Fan Jet Duo TM Operating Manual & Parts List P1...
Page 2
Configuration Left and Right Hand Machines 13.1 Configuration Continued 13.2 Configuration Continued 13.3 Swapping PODS 14.0 Spread Bias Adjustment 15.0 Spread Width and Pattern 16.0 Setting the Working Width Page 1 Fan Jet Duo TM Operating Manual & Parts List P2...
Page 3
29.2 Simulated Speed 30.0 Parts Drawing 30.1 Fan Jet Duo Plus TM Parts List 30.2 Fan Jet Duo Plus TM Parts List 30.3 Fan Jet Duo Plus TM Parts List Fan Jet Duo TM Operating Manual & Parts List P3...
Page 4
Fan Jet Duo TM Operating Manual & Parts List P4...
Page 5
Fan Jet Duo TM Operating Manual & Parts List P5...
Page 6
(boxed 62cm x 62cm x 98cm) 1.2 Intended Use This Fan Jet Duo has been designed for use in the agricultural, horticulture, and amenity sector to apply large dense slug pellets from 18-36m and various small seeds and granular products to varying widths depending upon the seed or product density.
Page 7
Please see our conditions of sale for full details, a copy of which available upon request. Please record the machine serial number here: ……………………………… Purchase date: …………………………………………… Dealer …………………………… Fan Jet Duo TM Operating Manual & Parts List P7...
Page 8
If in doubt contact the vehicle manufacturer for more information. After working the machine ensure that any unused product is returned safely to its original packaging. Stocks Ag Ltd. does not accept any liability for the storage and use of the material being applied.
Page 9
Maintain a safe distance from the machine when in operation. Wear the appropriate protective personal equipment. WARNING! Do Not Jet Wash This machine is not designed to withstand Jet Washing. Fan Jet Duo TM Operating Manual & Parts List P9...
Page 10
Heavy duty White PVC covers fitted with eyelets and bungie cord for easy attachment available for all machines. Please contact your locals Stocks Ag Ltd dealer for more information. Heavy duty White PVC covers available— Sold Individually 65L Waterproof PVC Covers- Part No. LC65DUO 130L Waterproof PVC Covers- Part No.
Page 11
2. Store in dry conditions to protect the machine and control system from moisture. WARNING DO NOT JET WASH THIS MACHINE Fan Jet Duo TM Operating Manual & Parts List P11...
Page 12
NOTE: Many self propelled sprayer manufacturers offer a suitable bracket or hydraulic raise and lower linkage for this purpose. Locally fabricated mounting frames are not the responsibility of Stocks Ag Ltd. If unsure seek advise from the parent machine manufacturer or supplier.
Page 13
*available upon request to reinforce the floor area of the UTV if required to enable mounting points to be used Fixing Points Plate for VS-2 Control Junction Box Not used on the TM model Forklift Point Fan Jet Duo TM Operating Manual & Parts List P13...
Page 14
To tip the hopper, remove the pin whilst supporting the hopper, lower gently when emptying the hopper. NOTE: Adaptor plates shown in fig D are not included as part of the standard kit (for more information contact your local Stocks Ag dealer) Fan Jet Duo TM Operating Manual & Parts List P14...
Page 15
(pair of adaptor plates c/w fix- Cost Option ings) M10-016 M10 Flat Washer M10-024 M10 Nyloc Nut M10-009 M10x40 Set Screw M12-006 M12x40 Screw M12-008 M12 Flat Washer M12-014 M12 Nyloc Nut Fan Jet Duo TM Operating Manual & Parts List P15...
Page 16
To tip the hopper, remove the pin whilst supporting the hopper, lower gently when emptying the hopper. PLEASE NOTE Not required if fitting to a Central Beam. NOTE: Image of similar machine. Supplied as part of the UTV fitting kit. Fan Jet Duo TM Operating Manual & Parts List P16...
Page 17
The alarm will sound once the product in hopper drops below the level of the sensor. Recommended if the hopers are not in full view of the operator. Part No. TJ-004-HLS-KIT Fan Jet Duo TM Operating Manual & Parts List P17...
Page 18
The “TM” controller is a simple, easy-to-use full colour touchscreen display. It has a single, compact 4.3-inch touchscreen display that controls all the key functions of the Fan Jet Duo as well as displaying all the important information.
Page 19
(Ensure the fused wire is connected to the positive (+) terminal). NOTE: Extension power and instrument cables available through your local Stocks Ag dealer. Power Cable Instrument NOTE: Powerpods are mounted at the rear of each hopper unit and can be accessed by removing the protective cover plate.
Page 20
Select this checkbox to turn the Alarm active or inactive. A tick in the box indicates the Alarm is active. WARNING! Inactive Alarms will not indicate when their set limits have been exceeded. Fan Jet Duo TM Operating Manual & Parts List P20...
Page 21
From the home screen, press the gears icon in the bottom right. Then press the larger gears icon in the top left. Select the Machine tap from the top. Fan Jet Duo TM Operating Manual & Parts List P21...
Page 22
13.1 Configuration Continued Press the CANBus tab from the menu. Select the POD’s tab. If required click configure POD’s. This is necessary when a new POD is installed. Fan Jet Duo TM Operating Manual & Parts List P22...
Page 23
POD’s is stamped on each POD. Which is mounted behind the removable panel on the rear of each applicator frame. Click the green tick to save and exit the screen. Fan Jet Duo TM Operating Manual & Parts List P23...
Page 24
Press the Green Tick to confirm and come out that screen. Press Green Tick a second time to return to machine menu. Press the House icon to return to Home screen. Fan Jet Duo TM Operating Manual & Parts List P24...
Page 25
NOTE: For most slug pellets applications the spread bias will need to be set between 60 and 75 degrees. Fan Jet Duo TM Operating Manual & Parts List P25...
Page 26
Low electrical power. Will not allow the disc to reach full speed. High application rates. Loads the disc more than a lighter rate and can slow it down. Incorrect disc angle. It must be at least horizontal – not angled downwards. Fan Jet Duo TM Operating Manual & Parts List P26...
Page 27
16.0 Setting the Spread Width From the home screen, press the gears icon in the bottom right. Then press the larger gears icon in the top left. Press the “Machine” tab. Fan Jet Duo TM Operating Manual & Parts List P27...
Page 28
16.1 Setting the Spread Width Continued Select the “Measurements” Tab. Select “Set Up Spinner Width”. Fan Jet Duo TM Operating Manual & Parts List P28...
Page 29
Press the Green Tick to confirm and come out that screen. Press Green Tick a second time to return to Machine menu. Press the House icon to return to Home screen. Fan Jet Duo TM Operating Manual & Parts List P29...
Page 30
NOTE: You should be able to rotate the feed shaft with your fingers – if it feels excessively tight, check the feed roller and spacer composition is correct as shown above or call Stocks Ag Ltd for advice. Fan Jet Duo TM Operating Manual & Parts List P30...
Page 31
NOTE: Minimum disc height of 2m above the crop canopy, or the ground required for 36m work. The Fan Jet Duo comprises of two separate machines. Each machine, left hand and right hand are calibrated as an individual machines. When setting the application rate, (kgs/ha) and spread width, the combined overall rate and spread width of both machines should equal the total required.
Page 32
Hang a suitable bucket under the calibration hopper. Make sure the tare weight of the bucket in known or accounted for. From the home screen, press the gears icon in the bottom right. Then press the larger gears icon in the top left. Press the product tab. Fan Jet Duo TM Operating Manual & Parts List P32...
Page 33
The red X will allow you to exit without saving. A product can be deleted by pressing the red The green tick will save and exit. minus symbol –. Press the calibrate tab. Fan Jet Duo TM Operating Manual & Parts List P33...
Page 34
For Ferric Phosphate slug pellets, a good starting point in 12200 pulses per kg. Press the green tick to confirm. The Manual Cal tab now shows the 12200 pluses per kg. Press the Calibration Set Up tab. Fan Jet Duo TM Operating Manual & Parts List P34...
Page 35
Select the drop-down menu from the Calibration method tab. Change it from “count” to “weight” then confirm and exit by pressing the green tick. Press “Start Calibration”. Press “Calibration Amount”. Fan Jet Duo TM Operating Manual & Parts List P35...
Page 36
Press the “PLAY” tab to start. The machine will start to meter out the product. Once the machine stops, press the bottom box labeled “measured amount”. Enter the weighed amount into the pop-out screen. Press the green tick to save and exit. Fan Jet Duo TM Operating Manual & Parts List P36...
Page 37
Confirm the new calibration factor when prompted by pressing “Ok”. Keep pressing the green tick to return to the screen required. Do not forget to repeat the process for the other hopper. Fan Jet Duo TM Operating Manual & Parts List P37...
Page 38
Right Disc is being edited up / down. 2. Tap on Left / Right Rate to bring up Rate menu. Left rate = 0kg/h actual, Right Rate is being edited up / down but demand is 5kg/ha. Fan Jet Duo TM Operating Manual & Parts List P38...
Page 39
20.0 Reset Jobs 1. Settings. 2. Jobs. 3. Edit. 4. Reset. Fan Jet Duo TM Operating Manual & Parts List P39...
Page 40
21.0 Fill Hoppers Go to Page 3. 2. Hopper Left / Right. 3. Weight of product added into hopper Kg. Fan Jet Duo TM Operating Manual & Parts List P40...
Page 41
To configure Headland Control - navigate into the ‘Machine’ tab of the Setup Menu. (Settings [cog] > Setup [cog] > Machine [tab] > Speed-GPS). Select GPS Speed Source. GPS Enabled. Fan Jet Duo TM Operating Manual & Parts List P41...
Page 42
23.0 Machine Offset Menu Navigate into the Implement Offset Menu. Fan Jet Duo TM Operating Manual & Parts List P42...
Page 43
The Implement centre is offset to the rear. In this example, the product is being thrown behind the implement, making the offset further back to match where the product is contacting the ground. Fan Jet Duo TM Operating Manual & Parts List P43...
Page 44
The distance ‘A’ in the diagram below represents the lead out distance, the system will turn on before leaving the headland once it is 'A' distance from the edge of the headland. Fan Jet Duo TM Operating Manual & Parts List P44...
Page 45
The diagram below has the coverage overlap at various percentages and shows the impact they have on coverage (lead in distance 0m). The positioning of the implement in the diagram represents when the system will turn off as it travels into the headland. Fan Jet Duo TM Operating Manual & Parts List P45...
Page 46
The hoppers will now turn on/off relative to the coverage map automatically. NOTE: Headland mode can be disabled by reverting the hopper symbol back to On (Green) or Off (Red). 25.1 User Name and Password Record Username Password Fan Jet Duo TM Operating Manual & Parts List P46...
Page 47
26.0 Checking Software Version 1. Settings. 2. Press Maintenance. 3. Press About. Version is displayed at the top. Fan Jet Duo TM Operating Manual & Parts List P47...
Page 48
2. Select on the Job you want to view the details of (it will highlight the Job blue). 3. Select on the Job details button. Job details button. Screen display. Fan Jet Duo TM Operating Manual & Parts List P48...
Page 49
If successful, all job data will now be exported to the USB Stick for viewing in any Farm software that can import a CSV file. CSV button 27.2 Resetting Jobs 1. Select the Job Reset button. Reset button 2. Confirm reset. Fan Jet Duo TM Operating Manual & Parts List P49...
Page 50
This changes the display view of the instrument for night time or daytime viewing as below. Unit type Allows settings to be changed from Metric or Imperial. WARNING! The instrument will restart. Fan Jet Duo TM Operating Manual & Parts List P50...
Page 51
29.0 Simulated Speed From the home screen, press the gears icon in the bottom right. Then press the larger gears icon in the top left. Select the Machine tap from the top. Fan Jet Duo TM Operating Manual & Parts List P51...
Page 52
29.1 Simulated Speed Continued Press the Control tab from the menu. Select the Control Speeds tab. Set Prime Time Mode to Continuous. Fan Jet Duo TM Operating Manual & Parts List P52...
Page 53
Press the Green Tick to confirm and come out that screen. Press Green Tick a second time to return to Machine menu. Press the House icon to return to Home screen. Fan Jet Duo TM Operating Manual & Parts List P53...
Page 54
30.0 Fan Jet Duo TM Parts Drawing Fan Jet Duo TM Operating Manual & Parts List P54...
Page 55
Metering Block Housing FJ722A Right Hand Fixing Bracket FJ721A Left Hand Fixing Bracket FJ722A Right Hand Fixing Bracket FJ721A Left Hand Fixing Bracket FJ733A Rotary Feed Outlet FJ731A Pointer GA108 Feed Block Fan Jet Duo TM Operating Manual & Parts List P55...
Page 56
M6 Flat Washer M6-002 M6x12 Set Screw M6-007 M6x20 Set Screw M8-012 M8 Repair Washer M8-017 M8 Nyloc Nut M10-023 M10 Nut M10-026 M10 Star Washer M12-004 M12x35 Set Screw Fan Jet Duo TM Operating Manual & Parts List P56...
Page 57
Grass Seed Roll GA110B-B Grass Seed Roll TJ208 10mm Spacer GA114 24mm Blanking Spacer (not shown) TJ204 13.5mm Blanking Spacer (not shown) TJ199 Stainless Steel Shim TJ033 Feed Block Gasket Fan Jet Duo TM Operating Manual & Parts List P57...
Page 58
Notes Fan Jet Duo TM Operating Manual & Parts List P58...
