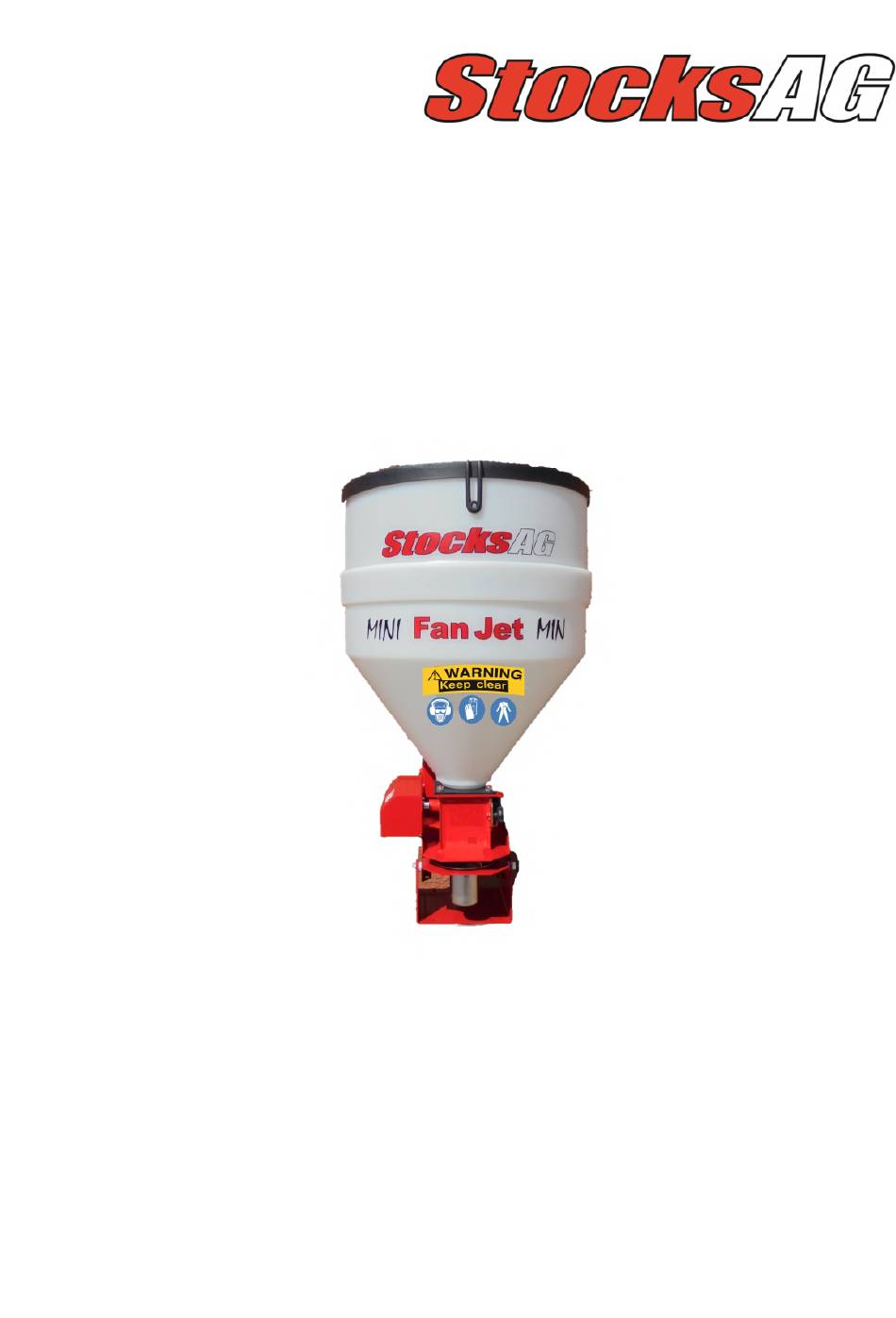

Original Instructions, Revision 1 August 2020

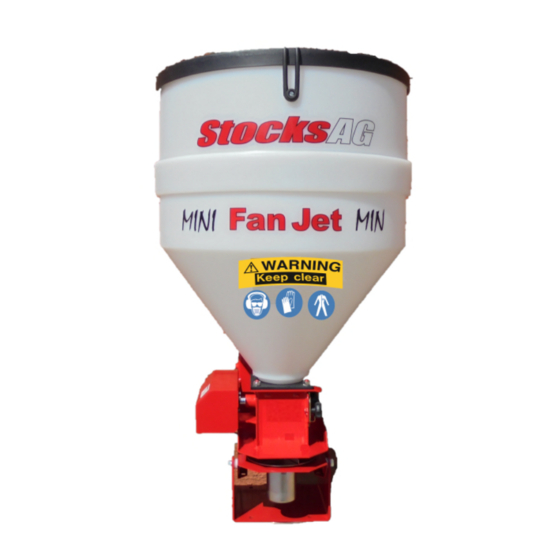

Fan Jet Mini
65 & 130
Original Operating Manual
and Parts List
Read carefully before installation and
operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk
1
Advertisement
Table of Contents
Related Manuals for Stocks AG Fan Jet Mini 65
Summary of Contents for Stocks AG Fan Jet Mini 65
- Page 1 Read carefully before installation and operation This document must not be copied duplicated or distributed without prior consent . All and patent rights apply STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK. Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk...
-
Page 2: Table Of Contents
Index Section Page No. Index General information Technical data Intended use Unintended use Contents of the EC Declaration of Conformity Contents of the UKCA Declaration of Conformity Machine identification Warranty Safety Emergency Stop Instructions Maintenance Safety warning decals and safety signs Clearing a blockage Hopper Removal Storage... -
Page 3: General Information
3 - 1 General information Congratulations on your Fan Jet Mini purchase; Please check the machine for any transport damage upon receipt and advise your supplier of any problems immediately. Late claims regarding any damage may be rejected. IMPORTANT This Operating Manual forms part of the machine and must be readily available for the operator who must read and follow the points covered before use 3 - 2 Technicaldata Model: Fan Jet Mini... -
Page 4: Contents Of The Ec Declaration Of Conformity
Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:... -
Page 5: Contents Of The Ukca Declaration Of Conformity
Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:... -
Page 6: Machine Identification
5 .1 Machine identification MINI The machine serial number decal is mounted on the steel chassis to one side of the hopper 5 .2 Warranty We provide a 12 month warranty as of the date of invoice (your invoice for the machine will serve as a warranty certificate). This warranty is applicable for cases of material or construction faults and does not include parts that are damaged by normal or excessive wear. -
Page 7: Safety
After working the machine ensure that any unused product is returned safely to its original packaging Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied If unsure contact the material supplier for more information. -
Page 8: Emergency Stop Instructions
7 .1 Emergency Stop instructions In the case of an emergency always switch of the main power switch on the control panel and isolate the power supply immediately by disconnecting the power cable Main Power On-Off switch 7 .2 Maintenance WARNING Always ensure the power supply is disconnected before any maintenance work or cleaning of this machine. -
Page 9: Safety Warning Decals And Safety Signs
8 Safety WARNING decals Important ; Be aware of the safely warning below which are all relevant to this machine WARNING Read and understand the Operators Manual instructions before operating this machine Operator errors can result in serious injury WARNING Danger due to thrown or flying objects Always maintain a safe distance whilst the machine is in operation... -
Page 10: Clearing A Blockage
65L Waterproof PVC Cover Part No. LC65 130L Waterproof PVC Cover Part No. LC130 Available through your local Stocks AG dealer 9 .5 Disposal Ensure that any persons handling the machine are aware that the machine may have been used to apply toxic chemicals and so the appropriate personal protection equipment should be worn. -
Page 11: Fitting To A Vehicle Or Implement
If unsure seek advise from the parent machine manufacturer or supplier. Locally fabricated mounting frames are not the responsibility of Stocks AG Ltd NOTE the machines can be operate facing forwards or backwards. Ensure the disc height is a minimum of 1 metre above the crop canopy or the ground –... -
Page 12: Mounting Plate
11 Mounting Plate Mount the machine using the tipping base plate. This has 4 holes in the base to take M12 bolts (see below) use these to attach to the parent vehicle. The base plate can be repositioned to fit the holes in the back of the machine to attach to a vertical mounting point –... -
Page 13: Electrical Components
12.1 Electrical Components 1. FJ110B Control Panel 2. FJ107D 5m Fused Power Cable 3. FJ108D 6m Control Connector Cable 4. FJ109D Tail Piece 5. FJ055A 12v Toggle Switch 6. FJ057D Disc Motor 6. MM044C Feed Motor 12.2 Electrical Connections Power requirement is 12 volts with a minimum continuous 30amp supply. The Fan Jet is supplied with a control console and all wiring Ensure the power supply cable (2) is connected direct to the vehicle battery to ensure maximum power. -
Page 14: Control Panel
13 Control Panel A simple and effective manually operated electric control used to instantly start and stop the feed motor at headlands, and uses a dial control to set the feed motor speed and thus the application rate. It is not linked to forward speed so once calibrated the operator drives at a consistent forward speed to maintain the rate, or can manually increase or decrease application rates on the move using the dial. -
Page 15: Setting The Headland Deflectors
14.1 Setting the headland deflectors Adjustable deflectors that reduce the exit aperture from the disc are incorporated into the Fan Jet to physically limit the spread width for headland control. Undo the black plastic knob at the rear of the chassis and slide each deflector around the disc as far as required to prevent chemical granules from entering a watercourse of grass margin. -
Page 16: Setting The Feed Rate
The assembled rollers and spacers should not be under compression. NOTE. You should be able to rotate the feed shaft with your fingers – if it feels excessively tight, check the feed rollers and spacer composition or call Stocks AG for advice. WARNING... -
Page 17: Optional Calibration Hopper
OPTIONAL Calibration Hopper NOT supplied with the machine Available through your local Stocks AG dealer Part No. FJ-005-CAL-MINI Fitting Instructions 1. With an empty hopper, remove the feed block assembly from the machine. 2. Slide the Calibration Hopper into the Fan Jet in place of the feed block with the hopper uppermost, ensure the drive shaft aligns and secure with the supplied screw knobs. -
Page 18: Product Calibration
17 Product Calibration NOTE to ensure the maximum spread width is obtained when applying slug pellets large hard dense pellets must be used. Some smaller, lighter and less dense pellets may not reach the full width especially in breezy conditions, and with many pellets the pattern may be thinner towards the outer edges. -
Page 19: Calibration Catch And Weigh Test
18 Calibration catch and weigh test The optional calibration hopper recommended when calibrating slug pellets or similar products. See page 17 for more information If using the calibration hopper only put a small amount of product in the calibration chute - do not fill in case the feed rolls have to be changed to achieve the rate (kgs/min) If no calibration hopper available only fill the hopper with a small amount of product and prepare to catch prod- uct spinning off the disc with a bag or sheet of some kind. -
Page 20: Fan Jet Mini Parts Diagram
19 Parts drawing... -
Page 21: Fan Jet Mini Parts List - (Page 1 Of 2)
Parts list (Page 1 of 2) Item Part # Description Remarks FJ003A Hopper Bracket 65L only FJ005A Hopper Bracket 130L only FJ008A M6x6mm Grub Screw FJ017D Hopper Base Plate FJ017S Base Plate Seal FJ026A-Ass. 65 Litre Hopper FJ026B-Ass. 130 Litre Hopper FJ027A-Ass. -
Page 22: Fan Jet Mini Parts List - (Page 2 Of 2)
Decal “Warning” Keep Clear - Wear PPE (not shown) MD050 “Warning” Decal Set- Thrown or Flying objects (not shown) MD002 Decal “STOCKS AG” (not shown) M5-012 M5x25 Slot Head CSK Screw Qty x 6 on 130L M5-014 M5 Flat Washer... -
Page 23: Notes Page
22 Notes page...
