Aries 1500255 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Qty Description
1 Driver / left front door
1 Passenger / right front door
1 Driver / left upper hinge assembly
1 Passenger / right upper hinge assembly
1 Driver / left lower hinge bracket
1 Passenger / right lower hinge bracket
2 Rubber bumpers
1 Driver / left latch assembly
1 Passenger / right latch assembly
1 Driver / left latch bracket
1 Passenger / right latch bracket
4 Latch mounting shims, 1mm
4 Latch mounting shims, 2mm
2 Tube spacers, 26mm x 23mm x 10mm
4 Double nut plates, 8mm
8 Button head bolts, 8mm x 25mm
2 Hex bolts, 8mm x 25mm
2 Flat washers, 8mm x 24mm x 2mm
8 Flat washers, 8mm x 16mm x 1.6mm
10 Lock washers, 8mm
8 Button head bolts, 6mm x 25mm
20 Flat washers, 6mm x 18mm x 1.6mm
6 Lock washers, 6mm
4 Nylon lock nuts, 6mm
2 Hex nuts, 6mm
2 Button head bolts, 4mm x 20mm
2 Flat washers, 4mm x 8.65mm x 0.8mm
1 Wrench, 5mm
1 Wrench, 4mm
1 Wrench, 2.5mm
ARIESAUTOMOTIVE.COM

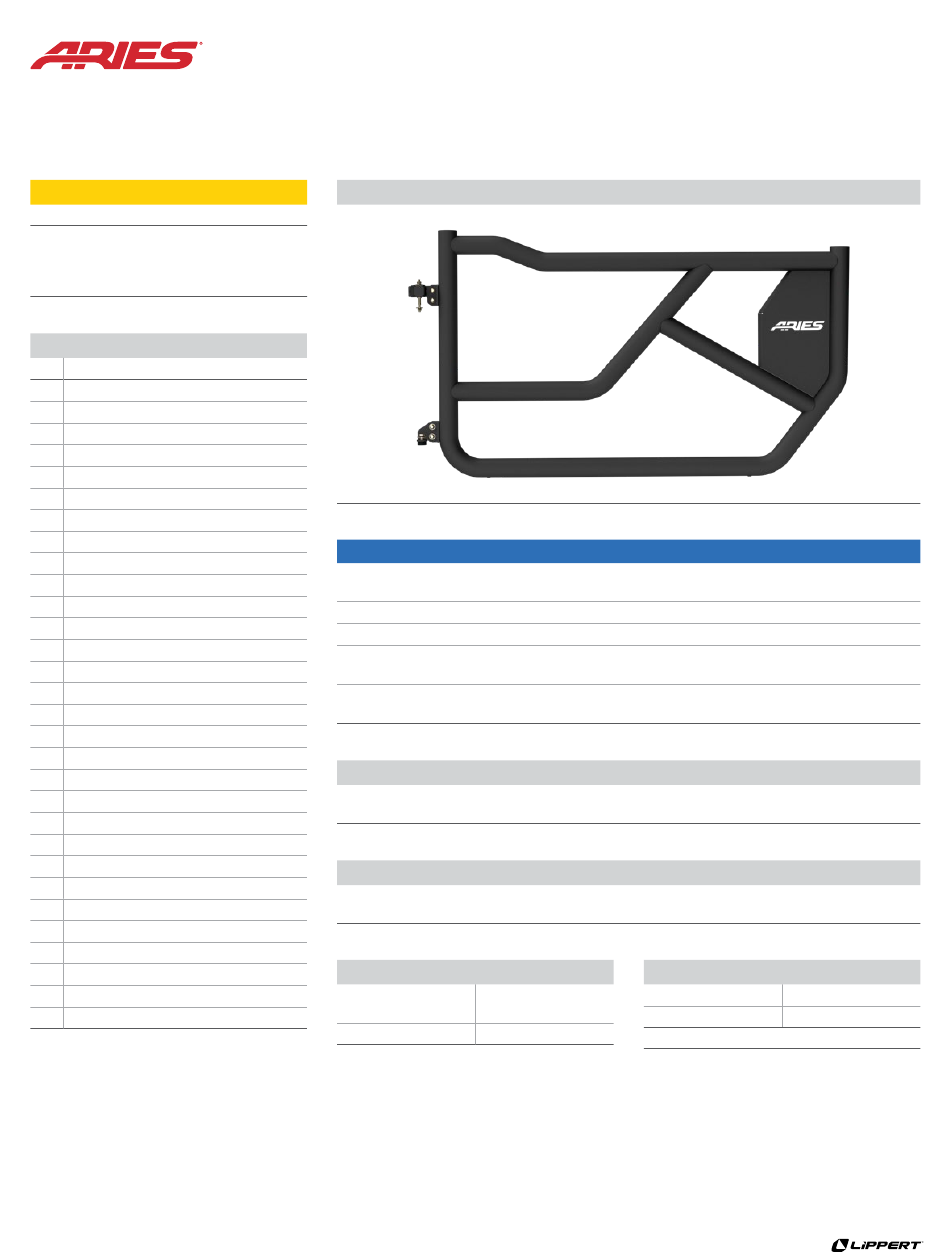

Product Photo
NOTICE
Visit www.ariesautomotive.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
ARIES stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
Tools Required
Socket wrench
Socket , 13mm
• PRODUCT SUPPORT: 877.287.8634
Allen wrenches
(included)
--
• 1500255-INS-RB • 11/03/2023
1500255
Torque Specifications
M6 bolt 7 ft-lbs.
M8 bolt 16 ft-lbs.
Use above torque setting unless otherwise noted
• ECN11246 • PAGE 1
