INSTALLATION MANUAL
Parts List
1
Driver / left mounting bracket
1
Passenger / right
mounting bracket
1
Driver / left logo plate
1
Passenger / right logo plate
8
Thread forming screw,
M4 x 10mm
10
Flat washer, M8
10
Button head screw,
M8 x 35mm
10
Spacer
Tools Required
Ratchet
Torx bit, T-20
Allen wrench,
Torx bit, T-50
5mm
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Moderate
Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
15911
Advertisement
Related Manuals for Aries 15911
Summary of Contents for Aries 15911

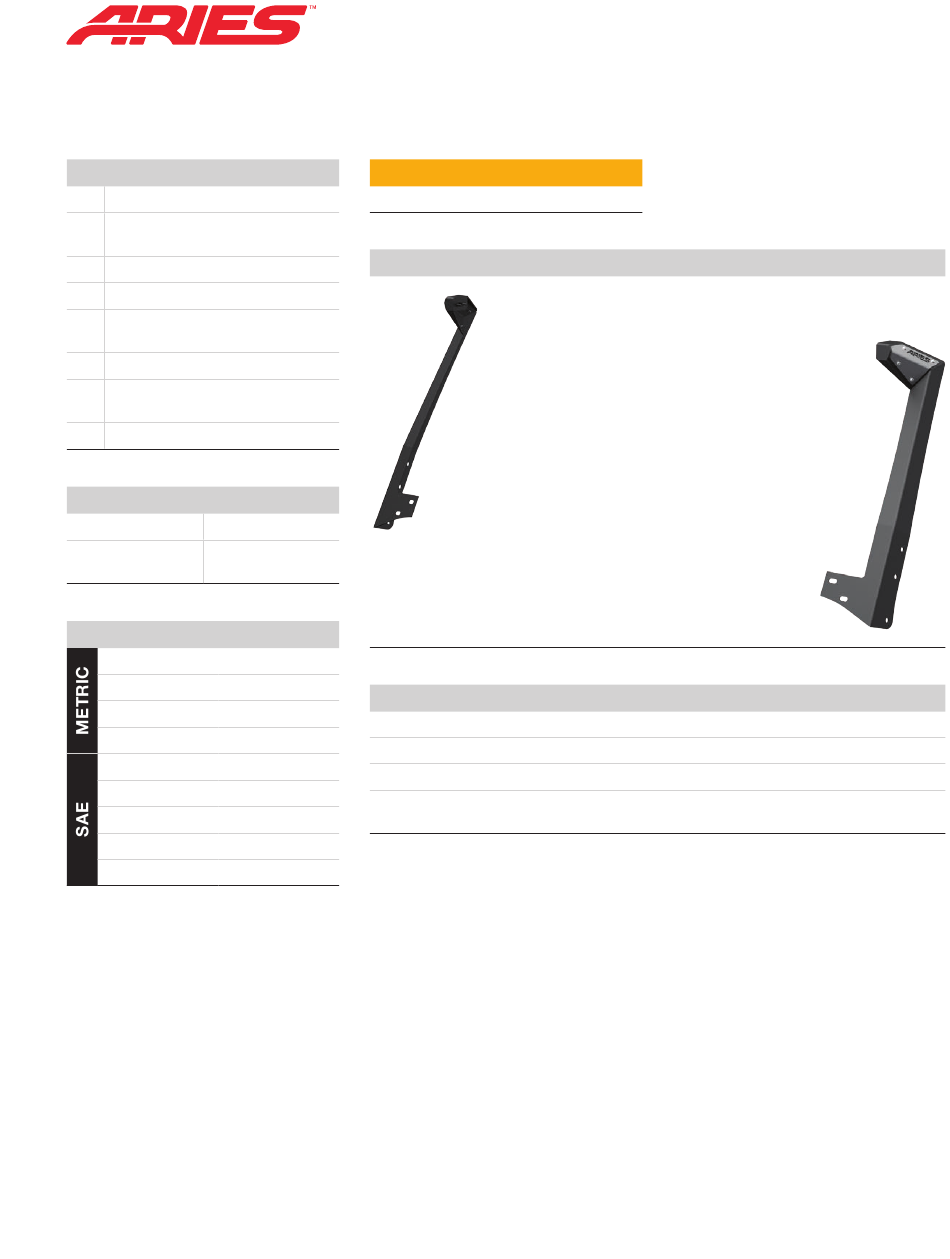

- Page 1 INSTALLATION MANUAL 15911 Parts List Level of Difficulty Moderate Driver / left mounting bracket Passenger / right mounting bracket Product Image Driver / left logo plate Passenger / right logo plate Thread forming screw, M4 x 10mm Flat washer, M8...
- Page 2 Step 1 Starting on the drivers side, use a ratchet and a T-50 Torx bit to remove the top five factory fasteners from the windshield pillar. Step 2 Select the driver-side mounting bracket and install using the provided M8 x 35mm button head screw, M8 flat washer and spacer.
- Page 3 M4 x 10mm thread forming screws. With the roof light mounting brackets installed, periodic inspections should be performed to ensure all mounting hardware remains tight. Congratulations on the installation of your new ARIES roof light mounting brackets.
- Page 4 INSTALLATION MANUAL 1501278 Parts List Level of Difficulty Easy LED light bar, 50" Mounting bracket, left Mounting bracket, right Product Image Wiring harness Security screw, M6 - 1.0 x 25mm Rubber spacer, M6 Flat washer, M6 Security screw L-wrench 30 amp fuse, pre-installed Step 1 Wiring Diagram Mount the LED light in the desired...
