Aries P3067 Installation Manual

INSTALLATION MANUAL
Parts List

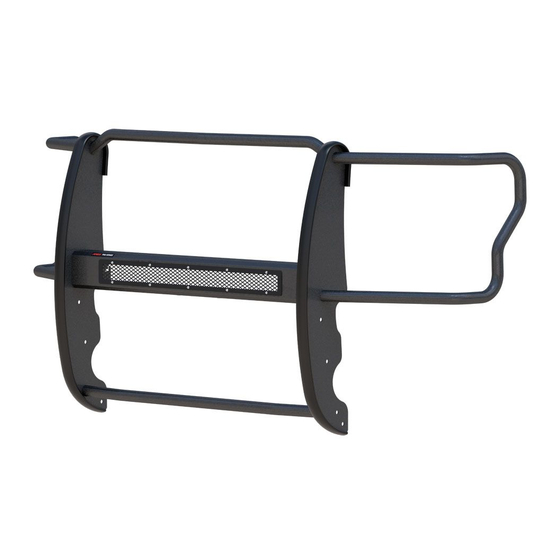

1 Grille guard
1 Driver / left
frame mounting bracket
1 Passenger / right
frame mounting bracket
2 Spacer plate
1 Driver / left
mounting bracket, lower
1 Passenger / right
mounting bracket, lower
1 LED support flange
2 Clip nut, M8
2 Hex bolt, M8
2 Flat washer, M8
2 Lock washer, M8
8 Hex bolt, M12 - 1.75mm x 35mm
16 Flat washer,
M12 x 32mm OD x 3mm
8 Lock washer, M12
8 Hex nut, M12
2 Plastic retainer, M12
Torque Specifications
M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Level of Difficulty
Easy
Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
