Aries 1500100 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left door
1 Passenger / right door
2 Flange nut, M6
6 Flat head cap screw,
M6 x 30mm
6 Flat washer, M6
6 Hex lock nut, M6

Tools Required

Ratchet Extension
T27 Torx drive Wrench, 10mm
T50 Torx drive Allen wrench, 4mm
Torque wrench Socket, 13mm

Torque Specifications

M6 flange nut 75 in.-lbs.
M6 lock nut 90 in.-lbs.
Level of Difficulty
Easy

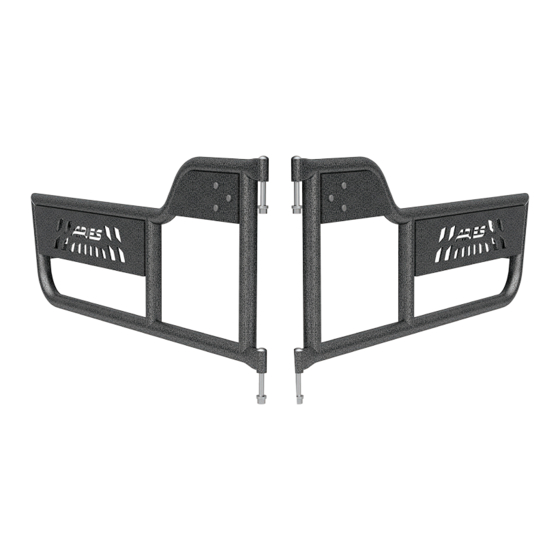

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product.
Do not use dish detergent, abrasive cleaners, abrasive pads,
wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 1500100-INS-RB • 877.287.8634 • NEED ASSISTANCE?
1500100
Scan
for helpful
install tips
• ARIESAUTOMOTIVE.COM
