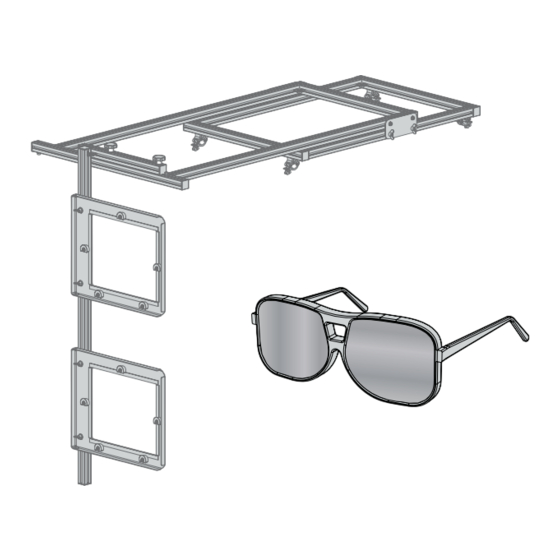

- Page 1 Polarization 3D Kit Installation manual For RLM W-series R9864220 R5905072/00 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download.
- Page 2 Barco nv Events Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.88.24 E-mail: sales.events@barco.com Visit us at the web: www.barco.com Printed in Belgium Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 3: Disposal Information
Changes Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war- ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice. - Page 4 Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 5: Table Of Contents
Enabling/Disabling the 3D polarization filters..................14 R5905072 POLARIZATION 3D KIT 28/02/2011... - Page 6 Table of contents R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 7: Polarization 3D Kit
1. Polarization 3D Kit 1. POLARIZATION 3D KIT Purpose of the Polarization 3D Kit The Polarization 3D Kit is exclusively designed for the Barco RLM W-series and can thus not be used on any other equipment. Overview • Introduction •... -
Page 8: Introduction
Article number Description Quantity Image R5905072 This installation manual R8760979 Frame assembly image 1-2 B364356 Clamp image 1-3 B362188 Hammer nut image 1-4 B362189 Screw image 1-5 R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download. - Page 9 1. Polarization 3D Kit Image 1-2 Image 1-3 Image 1-4 Image 1-5 R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 10: Installation Process Overview
1. Stack the two projectors. The two projectors must be stacked using the multifunctional frame, which is exclusively designed for the Barco RLM W-series projectors. See the installation manual (R5905038) of the multifunctional frame (R9899700). 2. Install the 3D polarizer assembly. The 3D polarizer assembly has to be mounted on the frame of the upper projector in the dual stack. -
Page 11: Installation Procedures
2. INSTALLATION PROCEDURES Overview • Installation of the 3D polarizer assembly • Adjustment the 3D polarization filters • Cleaning the polarization filters • Enabling/Disabling the 3D polarization filters R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download. -
Page 12: Installation Of The 3D Polarizer Assembly
(reference 4, image 2-2) which slide into the profile mounted on top of the projector. Tighten the two knobs (reference 5, image 2-2) on top of the filter assembly to secure the position of the polarization filters. R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download. - Page 13 5. Place the plastic cap (reference 9, image 2-3) upon the profile. R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download.
- Page 14 2. Installation procedures Image 2-3 R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 15: Adjustment The 3D Polarization Filters
filters is as big as possible without loss of content. Release the two wing screws (reference 4, image 2-6) at both sides of the assembly to reposition the assembly. Tighten the wing screws when finished. R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download. - Page 16 2. Installation procedures Image 2-6 4. Repeat step 1 to 3 until the projected surface upon the polarization filters is as big as possible without loss of content. R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 17: Cleaning The Polarization Filters
Do not leave cleaning cloth in either an open room or lab coat pocket, as doing so can contaminate the cloth. If smears occur when cleaning lenses, replace the cloth. Smears are the first indication of a dirty cloth. R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download. -
Page 18: Enabling/Disabling The 3D Polarization Filters
2. Slide the filter assembly away from the lenses for 2D projection or slide the filter assembly against the reference bracket (refer- ence 2, image 2-7) for 3D projection. 3. Tighten the two knobs (reference 1, image 2-7) to secure the position of the filters. Image 2-7 R5905072 POLARIZATION 3D KIT 28/02/2011 Download from Www.Somanuals.com. All Manuals Search And Download. - Page 19 Free Manuals Download Website h p://myh66.com h p://usermanuals.us h p://www.somanuals.com h p://www.4manuals.cc h p://www.manual-lib.com h p://www.404manual.com h p://www.luxmanual.com h p://aubethermostatmanual.com Golf course search by state h p://golfingnear.com Email search by domain h p://emailbydomain.com Auto manuals search h p://auto.somanuals.com TV manuals search h p://tv.somanuals.com...
