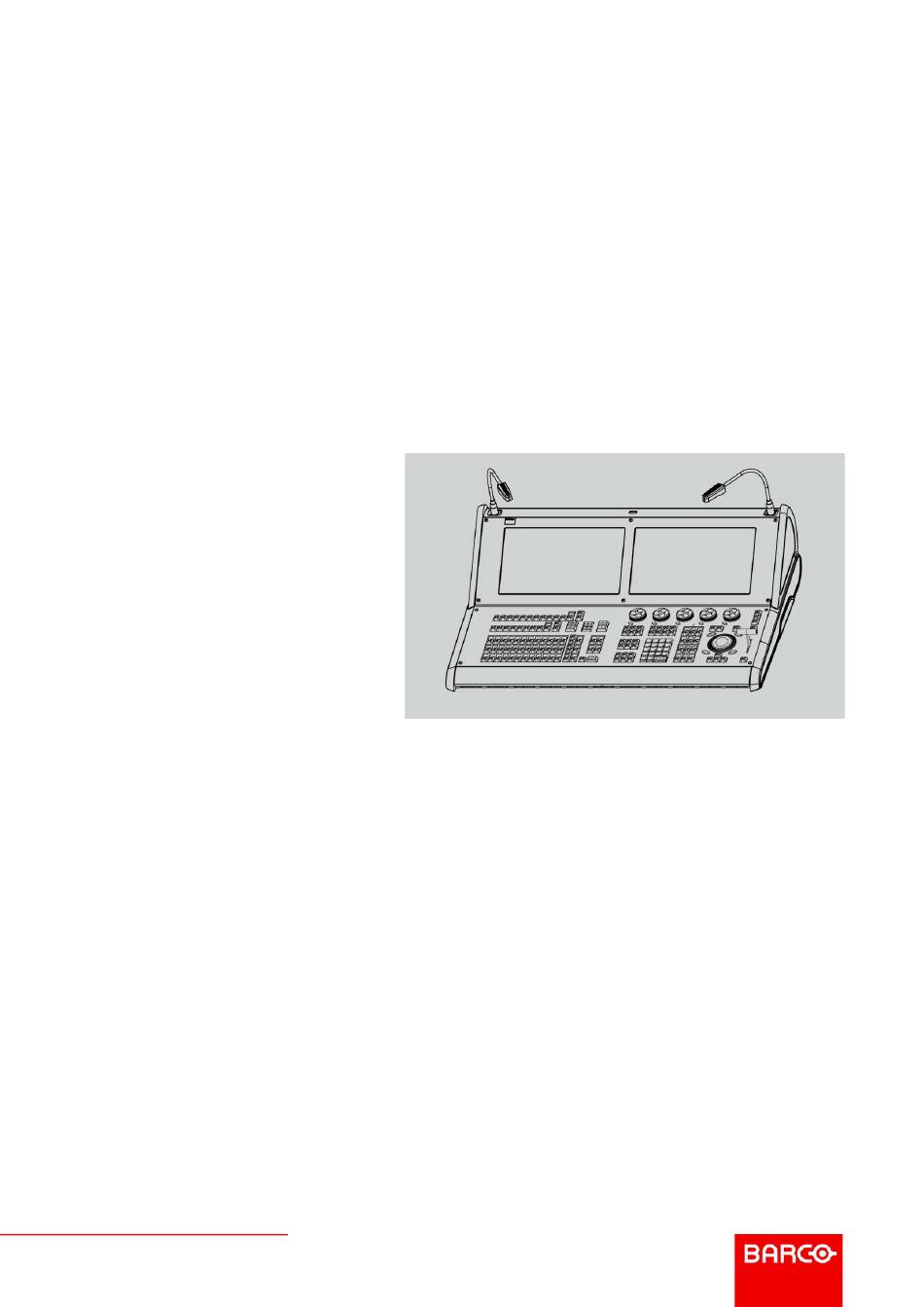

  • Page 1 EC-200 to EC-210 Conversion Kit Instructions ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco Inc, Image Processing 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA www.barco.com/en/support www.barco.com Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...

  • Page 3: Software License Agreement

    Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

  • Page 4: Federal Communications Commission (Fcc) Statement

    Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC responsible: Barco Inc. 3059 Premiere Parkway Suite 400 30097 Duluth GA, United States Tel: +1 678 475 8000...
  • Page 5 Introduction Overview • ESD recommendations • Ordering the EC-200 to EC-210 conversion kit General This kit contains all necessary parts and instructions for the customer to upgrade an EC-200 to an EC-210. Obtain all required tools and materials before beginning the upgrade. Disassemble the chassis, screen frame, and keyboard assembly components required to gain access to the parts that the conversion kit replaces.
  • Page 6 Introduction • Torx screwdriver T10 Required materials • RTV silicone Use one of the following or equivalent. Permatex 80050 (www.permatex.com) Loctite 37463 Image 1-1: Example of RTV silicone on motherboard connectors IMPORTANT: Where noted in the instructions, apply room-temperature-vulcanizing (RTV) silicone to help secure the motherboard connections, to prevent these connections from coming loose during handling or transit.

  • Page 7: Esd Precautions

    1.2 Ordering the EC-200 to EC-210 conversion kit The EC-200 to EC-210 conversion kit The part number for this kit is R9004796. Please contact your local Barco representative to order the conversion kit. 24-1701050-00 /01 EC-200 to EC-210 Conversion Kit...
  • Page 8 Introduction 24-1701050-00 /01 EC-200 to EC-210 Conversion Kit...
  • Page 9 Conversion process Overview • EC-200 unit overview • Process overview • Conversion kit parts • Removing EC-200 components • Installing EC-210 components 24-1701050-00 /01 EC-200 to EC-210 Conversion Kit...
  • Page 10 Conversion process 2.1 EC-200 unit overview EC-200 orientation and main components Image 2-1: EC-200: main components Desklights Ethernet board Screen Frame Motherboard and graphic card Touch screen (Left) Keyboard assembly Touch screen (Right) CTRL keypad (left) PROG keypad (right) Power supply Trackball Rear unit fan T-bar...
  • Page 11 Conversion process Behind the touchscreen assembly Image 2-2: Upper chassis: behind the touchscreen assembly Video card Motherboard Rear unit fan CPU cooler Rear DVI connectors DIMMs USB connectors Power supply Ethernet board 24-1701050-00 /01 EC-200 to EC-210 Conversion Kit...

  • Page 12: Process Overview

    Conversion process 2.2 Process overview Flow chart Image 2-3: Conversion process flow chart Process Follow this process to convert an EC-200 controller to an EC-210 controller. Remove the EC-200 components. Upper chassis Left and right touchscreen assembly cable disconnection Upper chassis disconnections Rear panel elements Install the EC-210 components.
  • Page 13 Conversion process Lower chassis Motherboard installation Rear I/O plate installation Final motherboard connections Touchscreen assembly connections Chassis reassembly 24-1701050-00 /01 EC-200 to EC-210 Conversion Kit...
  • Page 14 Conversion process 2.3 Conversion kit parts EC-200 to EC-210 conversion kit parts Image 2-4: EC-200 to EC-210 conversion kit parts 11-1701018-90 – PLATE REAR I/O EC-210 90409629EF – DUAL USB TYPE A PANEL F TO UPGRADE M (x2) 80430182 – KIT HARDWARE EC 200 TO EC 99310666 –...
  • Page 15 Conversion process EC-200 to EC-210 conversion kit parts list Description Quantity Part number 80430182 KIT HARDWARE EC 200 TO EC 210 UPGRADE (Hardware fastener kit) 90405353 KIT KEYCAP SET EC-210 UPGRADE 90409626EF CABLE USB MTHRBD TRACKBALL 20 (PROG keypad / trackball, 20–pin) 90409627EF CABLE USB TOUCHSCREEN 20 PIN 90409628EF...
  • Page 16 Conversion process Image 2-5: Desklights and screws Desklights Screen frame screws—front (3 mm) Screen frame screws—rear (2.5 mm) Remove the desklights (work lights), if installed. Remove the 6 screws on the front of Screen Frame and the 3 screws on the back of the Screen Frame Cover. Then remove the Screen Frame from the Base Unit.
  • Page 17 Conversion process Image 2-7: Rear view of touchscreen assembly, showing touchcreen interface boards Breakout board RS-232 interface (harness) board Remove the touchscreen assembly from the EC-200 unit. Note: After the screen assembly is removed, access holes for three of the motherboard screws can be seen in the support bar that runs the width of the unit.
  • Page 18 Conversion process Image 2-9: Touchscreen interface board connections RS-232 interface board (EC-200) DC In (J4) USB interface board (EC-210) DC Out (J2) Touchscreen In (J5) Comm Out (Comm to motherboard; not used in Comm In (J1 – Comm to Display Interface) EC-210) Touchscreen Out (J3 –...

  • Page 19: Rear-Panel Elements

    Conversion process Unplug the video card from the motherboard and remove it from the Unit. Press the white retention clip away from the rear of the unit to release the card from the motherboard. Unplug the rear Chassis fan from the motherboard. Unplug the red SATA SSD cable from the motherboard.

  • Page 20: Required Tools

    Conversion process Remove the Rear I/O plate along with the DVI and USB cables that are attached to it. 2.5 Installing EC-210 components It is important that you use room-temperature-vulcanizing (RTV) silicone to help secure some of the motherboard connections, to prevent these connections from coming lose during transit. These instructions will identify with a note those connections that may be stabilized with RTV silicone.

  • Page 21: Lower Chassis

    Conversion process Image 2-13: EC-210 rear I/O plate with connections Lower chassis Remove the four screws that secure the keyboard assembly to the lower chassis. Image 2-14: Lower chassis Lower-chassis screws EC-200 future expansion button group Tilt up the keyboard assembly and insert the left and right edges of the keyboard assembly in the chassis slots to hold the keyboard assembly upright.
  • Page 22 Conversion process Image 2-17: Trackball-cable connections Trackball (right-side) USB connectors from USB910 on the motherboard Close the lower chassis Put the lower edge (the edge near the wrist rest) in place first, and then lower the rest of the keyboard assembly in place.

  • Page 23: Motherboard Installation

    Conversion process Image 2-19: Cables from the lower chassis and "Play/Pause" and "Stop" keys “Play/Pause” and “Stop” keys Motherboard installation Slide the lower edge of the motherboard under the lower chassis. The lower edge has the 4-pin ATX12V1 and the CPUFAN1 connectors. The DIMMs should be on the left-hand side of the CPU cooler.
  • Page 24 Conversion process Image 2-21: Initial motherboard connections Black reset line and power button at USB to top at USB561112 JFP1 DisplayPort cable to the left side of Power button LED at JFP2 the touchscreen assembly at DP1 Rear system fan at SYSFAN2 (top of the DP1+HDMI1 header) USB to right side of keyboard (the Auxiliary power at ATX12V1...
  • Page 25 Conversion process Connect the rear unit fan to SYSFAN2. Make sure the key tab on the header connector aligns with the slot on the back side of the fan connector. (This is a 3-pin connector installed on 4-pin header.) Image 2-23: SYSFAN2 connection 3-pin connector from rear unit fan to 4-pin SYSFAN2 connection on the motherboard Unused pin Header key tab and fan connector slot...
  • Page 26 Conversion process Image 2-25: RTV silicone on USB connectors RTV silicone USB78 connector USB910 connector Connect Cable 90409634EF to the cable labeled 90409631EF. This is the Power button assembly, P/N 90409637EF. Connect the power-button LED cable (5-pin connector on 90409634EF) to JFP2. Make the connection so that the red wire is connected to pin 1.
  • Page 27 Conversion process Image 2-28: Motherboard connections: reset, power button, power-button LED, and rear unit fan Reset connection from right-side keyboard Power button LED connection Power button connection Rear unit fan at SYSFAN2 Note: For Step 8 and Step 9 refer to Image 2-28 and to Image 2-29. Image 2-29: JFP1 pinout Pin 1: +5V Pin 7: SPK_P3...
  • Page 28 Conversion process Image 2-30: Motherboard connections: USB, reset line, and power supply USB to left side of keyboard at USB561112 Power to motherboard at EATXPWR1 USB to right side of keyboard at USB910 / Auxiliary power to motherboard at ATX12V1 trackball Reset line (attached to Pin 9 of the JFP1 header on the motherboard)
  • Page 29 Conversion process Final motherboard connections The rear unit fan, USB to top, USB to left side of the keyboard (CTRL), USB to right side of keyboard (PROG), and the power supply (EATXPWR1) connections were made to the motherboard immediately after motherboard installation.
  • Page 30 Conversion process Image 2-33: Final motherboard connections Cable from the J3 connection on the 18" single link DVI-D male-to-male Ethernet board to the Ethernet cable (90409628EF) from the right- connection at the LAN2_USB34 side display assembly to the DVI connector at the DVI1 header Lower left USB cable from the rear I/ O plate to top USB connector of USB from the display assembly to...
  • Page 31 Conversion process Image 2-34: Motherboard I/O connections COM1 USB561112 (USB 2.0 on DVI1 top; USB 3.0 on bottom) DP1+HDMI1 (DisplayPort LAN1_USB12 (RJ-45 on on top) top; USB 3.0 on bottom) DP1+HDMI1 (HDMI on LAN2_USB34 (RJ-45 on top; USB 3.0 on bottom) bottom) AUDIO1 Image 2-35: Ethernet and USB connections from the Ethernet board to the...
  • Page 32 Conversion process Coil and tie wrap the extra length of the HDMI output (“Screen 3”) cable. Connect one end of the 18" single link DVI-D male-to-male cable (90409628EF) from the right-side display assembly to the DVI connector at the DVI1 header. Connect the 20–pin connector of the USB cable from the display assembly to the USB78 connection.
  • Page 33 Conversion process Image 2-38: Touchscreen assembly—right-side connections Right-side display DVI (from motherboard) DisplayPort (not connected on the right-side display) USB input (from USB78 on motherboard) to right side (longer cable) USB input (from USB78 on motherboard) to left side (shorter cable Attach the right-side DVI cable from the motherboard.
  • Page 34 Conversion process Route the USB input cable (90409627EF from USB78 on the motherboard) to the left-side USB interface board and zip-tie it to the touchscreen assembly frame. (See #4 in Image 2-39.) The rear of the left-side touchscreen assembly is shown in Image 2-40; this screen is on the left side, when viewed from the front.
  • Page 35 The unit may power on, but if it does not, press the power button to turn on the power. A Barco logo appears on each display as the unit boots. Check the power button on the rear of the unit.
  • Page 36 Conversion process Image 2-43: Final assembly Desklights Screen frame screws—front (3 mm) Screen frame screws—rear (2.5 mm) Product label 24-1701050-00 /01 EC-200 to EC-210 Conversion Kit...
  • Page 37 Conversion process 24-1701050-00 /01 EC-200 to EC-210 Conversion Kit...
  • Page 38 24-1701050-00 /01 | 2019-01-15 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
