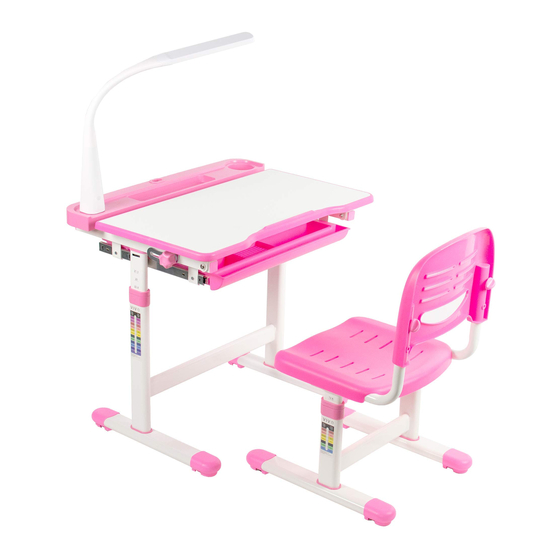

Pink Kids' Height Adjustable Desk and Chair
Instruction Manual
SKU: DESK-V303P
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v303p
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V303P
Summary of Contents for Vivo DESK-V303P
- Page 1 Pink Kids’ Height Adjustable Desk and Chair Instruction Manual SKU: DESK-V303P Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v303p GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Assembly Steps
WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED. DO NOT EXCEED WEIGHT CAPACITY. 165lbs 220lbs Failure to do so may result in serious injury. (75kg) (100kg) CHAIR DESK ASSEMBLY STEPS STEP 1 STEP 2 Secure feet using x4 M6x20 screws (A2) and x4 Adjust sides of chair legs (B1) to equal length. - Page 4 STEP 6 STEP 5 Slide plastic seat back (B7) onto chair frame, Mount plastic seat bottom (B6) aligning upper or lower holes in seat back with to assembled chair frame using 1” screws (A4). Tighten with screw holes in frame depending on the needed height.
- Page 5 STEP 10 Secure feet using x4 M6x20 screws (A2) and x4 lock washers (A1). Tighten with Allen wrench (A8). STEP 11 Assemble desktop (B8) to legs using M6x45 screws (A6) and x4 plastic washers (A3), making sure the front of the desktop faces in the same direction as the long ends of the feet.
- Page 6 STEP 13 Adjust desk feet to sit level if needed. Place lamp (B10) into left side hole in desktop. Connect power adapter to lamp and plug into wall outlet. Lamp Operation: Touch power button to turn lamp on. Touch button again repeatedly to change brightness (low, medium, high).
- Page 7 Height Adjustment RAISE: Step on the support bar with one foot and pull up with even motion on both sides of the desk, until it reaches desired height. Repeat with chair. LOWER: Step on the support bar with one foot and pull up with even motion on both sides of the desk, until it reaches max height.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
