Summary of Contents for Seikom Electronic NLSW 45-3 SIL1 Analog

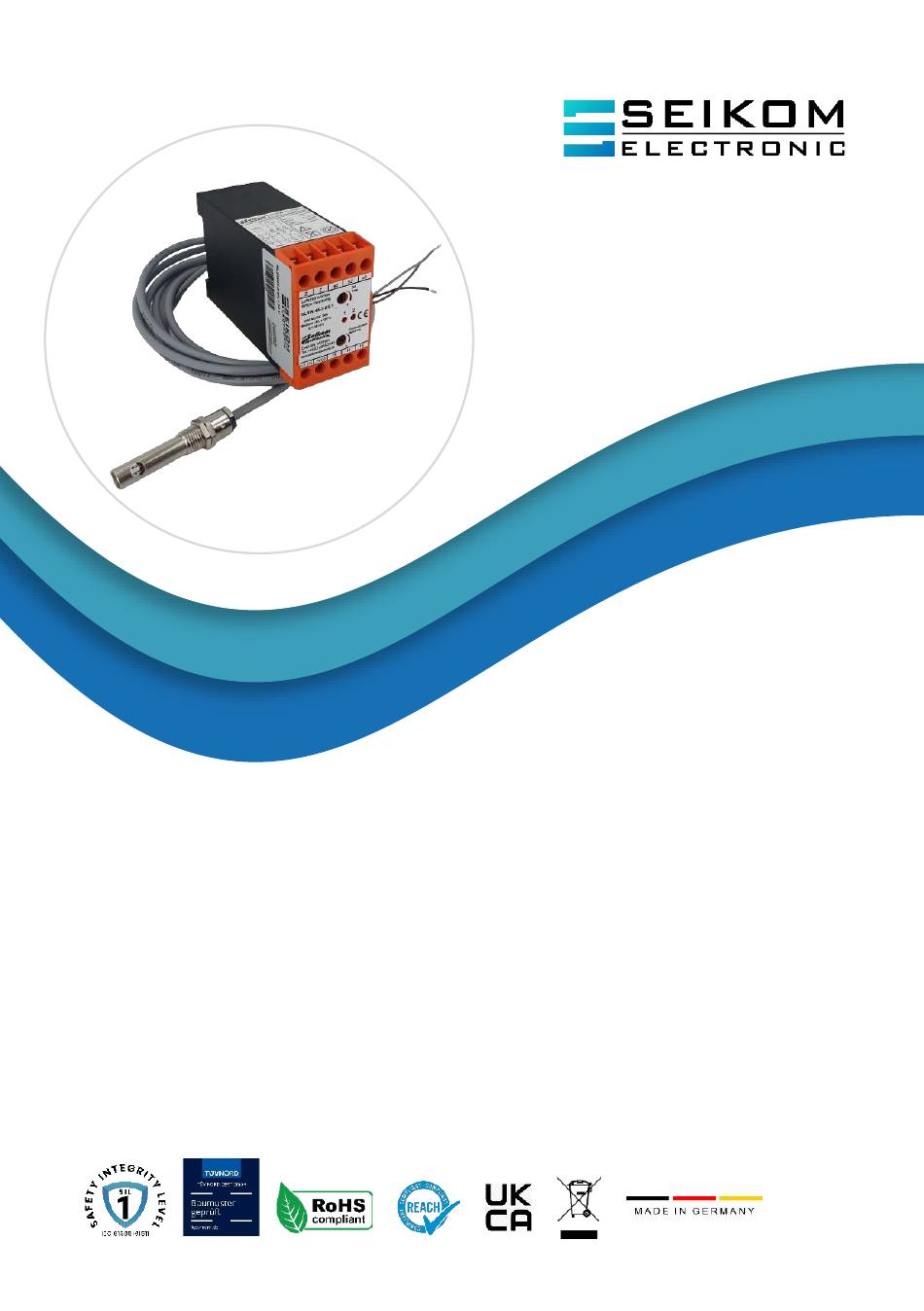

- Page 1 Operating instructions NLSW®45-3 SIL1 Analog 24 V AC/DC, 230 V AC...
- Page 2 page 2 +49 2058 916 900 0• info@seikom-electronic.com• www.seikom-electronic.com...
-
Page 3: Table Of Contents
Operating instructions NLSW®45-3 SIL1 Analog CONTENTS CONTENTS ..........................3 1. SAFETY INSTRUCTIONS ....................4 2. GENERAL INFORMATION ....................4 2.1 Field of application and practical use ..................4 2.2 Outputs ..........................4 3. TECHNICAL DATA ......................5 3.1 Device dimensions ........................6 4. -
Page 4: Safety Instructions
Operating instructions NLSW®45-3 SIL1 Analog 1. SAFETY INSTRUCTIONS Please read the operating instructions carefully before using the device. Make sure that the product is fully suitable for your application. Improper use can lead to malfunctions of the device or to undesirable effects on your application. For this reason, installation, electrical connection, commissioning, operation and maintenance of the de- vice may only be carried out by trained personnel. -
Page 5: Technical Data
Operating instructions NLSW®45-3 SIL1 Analog 3. TECHNICAL DATA Type NLSW®45-3 SIL1 Analog NLSW®45-3 SIL1 Analog 24 V AC/DC 230 V AC Item number 1134SIL1/A 1134SIL1/V 1135SIL1/A 1135SIL1/V Operating voltage 24 V AC/DC 230 V AC 50/60 Hz Voltage tolerance ± 15% ±... -
Page 6: Device Dimensions
If the sensor cable is laid in a duct together with other live cables (e.g. motors or solenoid valves), we recommend shielding the sensor cable (connect a shield). Sensors with shielded cables are available as accessories from SEIKOM Electronic. page 6... -
Page 7: Installation
Operating instructions NLSW®45-3 SIL1 Analog ▪ To avoid malfunctions, the sensor cable must be extended with a cross-section of at least 1.5 mm². The maximum cable length should not exceed 50 m. ▪ Maintenance instructions: Regular cleaning is necessary depending on the application. Maintenance intervals must be determined and specified as required 4.2 Installation It is mounted using the PG7 thread on the sensor housing. -
Page 8: Electrical Connection Of The Device
Operating instructions NLSW®45-3 SIL1 Analog Color code: GY=grey | BK=black | BN=brown 4.4 Electrical connection of the device The following sequence must be observed when commissioning and adjusting the devices: Mounting the sensor in the air duct Connect the corresponding sensor (F3.x SIL1) to the device; [gray to b1, black to a2 and brown to b2] (light blue). -
Page 9: Adjusting The Settings On The Nlsw®45-3 Sil1 Analog
Operating instructions NLSW®45-3 SIL1 Analog Iout must not be connected to negative supply voltage or earth! 4.4.1. Adjusting the settings on the NLSW®45-3 SIL1 Analog Set the "Switching point" potentiometer (dark blue) to clockwise deflection (high). +49 2058 916 900 0• info@seikom-electronic.com• www.seikom-electronic.com Page 9... -
Page 10: Typical Output Values
Operating instructions NLSW®45-3 SIL1 Analog Set the "Start delay" potentiometer [Delay] (orange) to the desired start-up delay time of approx. 5 ... 60 seconds (left stop approx. 5 seconds/right stop approx. 60 seconds) Apply mains voltage. The green LEDs light up. The device is ready for operation within 2 seconds. -
Page 11: Switching Point Setting
Operating instructions NLSW®45-3 SIL1 Analog If the NLSW®45-3 SIL1 Analog is set to a different measuring range, the curve scales accordingly. For example, Iout at a maximum set air flow of 10 m/s or 25 m/s is approx. 20 mA in each case. The media temperature has only a negligible influence on the current or voltage output and switching point. -
Page 12: Servicing And Maintenance
Operating instructions NLSW®45-3 SIL1 Analog Small flow change in the low flow velocity range: The switching point can be selected with a greater distance to the measured value of the normal flow, as the measured value change is large when the flow changes. -
Page 13: Troubleshooting
6. TROUBLESHOOTING The following instructions are intended to help you if your airflow monitor is not working properly. If you have any further questions, the SEIKOM Electronic team will be happy to help you at any time by phone or e-mail. -
Page 14: Disposal
Operating instructions NLSW®45-3 SIL1 Analog increase or decrease in media fault, set the switching point temperature with hot flowing medium. Current output drops to 0 mA Sensor or cable breakage of Check the sensor connec- (the relay has also dropped the heated sensor, or the ap- tions and wiring. -
Page 15: Eu Declaration Of Conformity
Operating instructions NLSW®45-3 SIL1 Analog 8. EU DECLARATION OF CONFORMITY +49 2058 916 900 0• info@seikom-electronic.com• www.seikom-electronic.com Page 15... - Page 16 Growing network of local distributors available online www.seikom-electronic.com Our product portfolio Flow rate Temperature Pressure Air quality and CO Zener barriers Universal Transmitters +49 2058 916 900 0 info@seikom-electronic.com www.seikom-electronic.com SEIKOM-Electronic GmbH & Co KG Gold-Zack-Straße 7 40822 Mettmann...
