Seikom Electronic FlowGuard FT410 Operating Instructions Manual

24 v ac/dc; 230 v ac; 110 v ac
Hide thumbs

Advertisement

Quick Links

Download this manual
Operating instructions
FlowGuard® FT410
24 V AC/DC; 230 V AC; 110 V AC

Advertisement

loading
Need help?

Need help?

Do you have a question about the FlowGuard FT410 and is the answer not in the manual?

Questions and answers

Related Manuals for Seikom Electronic FlowGuard FT410

Summary of Contents for Seikom Electronic FlowGuard FT410

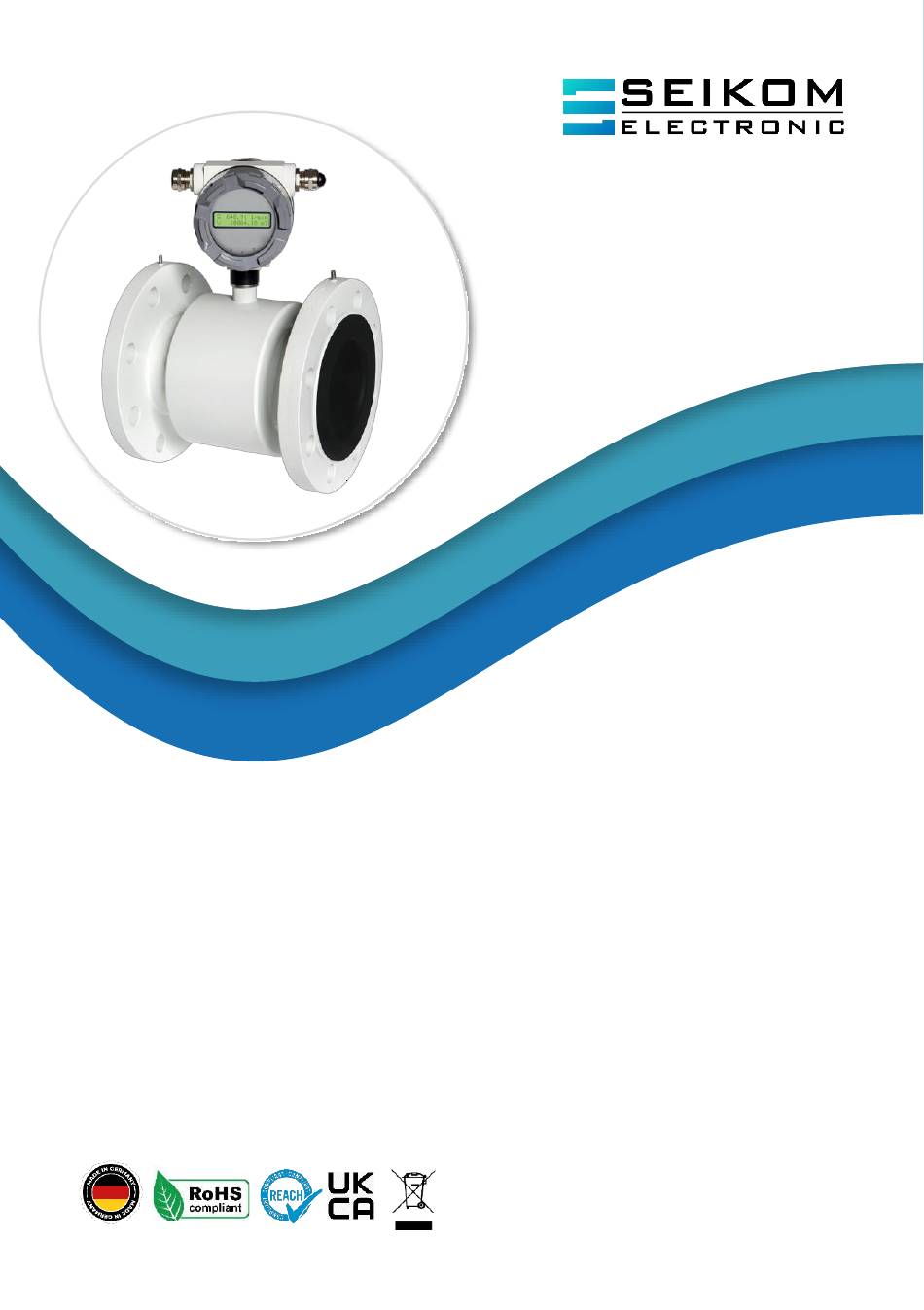

  • Page 1 Operating instructions FlowGuard® FT410 24 V AC/DC; 230 V AC; 110 V AC...

  • Page 3: Table Of Contents

    Operating instructions FlowGuard® FT410 Contents Contents ............................3 1. General information ......................7 2. Transportation, packaging and storage ................... 8 2.1 Transportation ............................8 2.2 Packaging ..............................8 2.3 Storage ..............................8 3. Safety instructions ........................ 8 3.1 Intended use of the product ........................8 3.2 Personnel qualification ...........................
  • Page 4 Operating instructions FlowGuard® FT410 4.12 Checking the wiring/installation ....................29 5. Operation ..........................30 5.1 Status of the device ..........................31 6. Technical data ........................32 6.1 Factory configuration ..........................35 6.2 Setting and checking the FlowGuard® FT410 ..................36 6.3 Operation FlowGuard®...
  • Page 5 Operating instructions FlowGuard® FT410 6.4.18. Change password ....................65 7. Application notes ......................... 70 7.1 Disassembly and assembly of printed circuit boards ................71 7.2 Basic dimensions of the sensor ......................72 7.3 Nomogram for quick selection of the measuring point ................76 7.4 Reduction of the pipe diameter ......................
  • Page 6 Operating instructions FlowGuard® FT410 +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 6...

  • Page 7: General Information

    Operating instructions FlowGuard® FT410 1. General information 1.1 Description Measuring principle The FlowGuard® FT410 flow meter is a measuring device based on Faraday's law of electromagnetic induction. A voltage is induced when a conductive liquid flows through the magnetic field of the device. This voltage is recorded by two electrodes that are in direct contact with the liquid and evaluated by the electronics.

  • Page 8: Transportation, Packaging And Storage

    Operating instructions FlowGuard® FT410 2. Transportation, packaging and storage 2.1 Transportation Inspect the appliance for any transport damage. Report any obvious damage immediately. The transport and storage temperature must be between -10 ... 50°C. 2.2 Packaging The packaging should only be removed immediately before installation. Please keep the packaging as it offers optimum protection during transportation (e.g.

  • Page 9: Special Hazards

    Operating instructions FlowGuard® FT410 independently. Depending on the operating conditions, other knowledge may also b e required, e.g. aggressive media. Special dangers Comply with the country-specific regulations (e.g. standards) and observe the applicable standards and guidelines for special applications (e.g. for hazardous media such as acetylene, flammable or toxic substances and for refrigeration systems and compressors).

  • Page 10: Commissioning

    It is necessary to protect the sensor from the direct effects of weather conditions such as direct sunlight, rain, snow or frost. If the sensor is installed outdoors, SEIKOM Electronic recommends a t t a c h i n g a protective device with a canopy to the device to prevent damage.

  • Page 11: Installation Examples

    Operating instructions FlowGuard® FT410 For the same reason, the sensor should not be installed on the suction side of the pump. In addition, the flow meter should b e installed on a slightly rising or vertical pipe to prevent the formation of gas bubbles on the device when the medium is slow.

  • Page 12: Free Inlet Or Outlet

    Operating instructions FlowGuard® FT410 Horizontally arranged pipe Long tube Positioning recommended in a Always install the control and shut-off slightly rising pipe components downstream of the sensor Free inlet or outlet Pumps The flow meter must not be installed on the Installation in a U-tube suction side of the pump The flow of the medium in the sensor should be steady and without turbulence.

  • Page 13: Compact Design

    Operating instructions FlowGuard® FT410 4.3.5. Compact design The following points are particularly important for the compact design: The maximum temperature of the medium (max. +90° C, please refer to the lining data sheet). If the temperature is exceeded, this can lead to incorrect measurement or even destruction of the appliance.
  • Page 14 Operating instructions FlowGuard® FT410 Measurement error due to incorrect mounting installation 1) Correct installation (the flow sensor should be installed in any position in vertical pipelines. Empty conduit Empty conduit testing Empty conduit testing testing Empty conduit Earthing electrode Earthing electrode Earthing electrode 2) Incorrect installation (device set up at an angle, empty test - ON) Error...
  • Page 15 Operating instructions FlowGuard® FT410 - In the version without the earthing electrode and/or empty conduit test electrode (2 electrodes) - In the version with the earthing electrode and/or empty conduit test electrode (3/4 electrodes) +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 15...
  • Page 16 In the same way, the mating positions of the holes for the connecting screws should be observed and there should be sufficient space for them behind the flanges. SEIKOM Electronic recommends using a suitable welding adapter for welding in order to avoid damaging the flow meter. The welding current must not flow through the device during electric welding.
  • Page 17 Operating instructions FlowGuard® FT410 Tightening torques The connecting bolts and nuts should b e tightened evenly and crossed (see illustration) to ensure optimum installation. Diameter Tightening torque Tightening torque Screws Screws [Nm] [Nm] Rubber Rubber +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 17...
  • Page 18 Operating instructions FlowGuard® FT410 Diameter Tightening torque [Nm] Tightening torque [Nm] Screws Screws Rubber Rubber When using a tube made of corundum or thermoplastic, the same torques apply as when using the PTFE tube according to the specified pressure series. Threaded connection (EN 10226-1): Process connection Tightening torque [Nm]...
  • Page 19 Operating instructions FlowGuard® FT410 Earthing Each flow sensor must be earthed. The earthing cable must not transmit interference voltage, i.e. this cable must not be used for earthing other sensors at the same time. The sensor is equipped with an earthing screw, a washer and a stainless steel M5 nut. These must be connected to the earthing cable.
  • Page 20 Operating instructions FlowGuard® FT410 Pipeline with high temperature If the temperature of the measuring liquid is higher than 100°C, it is necessary to compensate for the forces caused by linear expansion. If a short pipe is used, a flexible gasket should be used. If a long piece of pipe is used, flexible components such as bends should be used.

  • Page 21: Electrical Connection

    Operating instructions FlowGuard® FT410 Electrical connection This work may only be carried out by a competent person with the appropriate electrical engineering qualifications. If this is not the case, the warranty will be void. The device should be switched off if the evaluation unit is to be opened. 4.4.1.
  • Page 22 Operating instructions FlowGuard® FT410 - Input/output and power supply board Note: the connections of the terminal strip are described on the inside of the cover. Standard connection: Terminal 1 and 2 Current output 4÷20 mA T e r m i n a l 3 and 4 Pulse output OUT IMP T e r m i n a l 5 and 6 RS485 communication Terminals 7 and 8 Output 2...

  • Page 23: M12 Plug Assignment

    Operating instructions FlowGuard® FT410 4.4.2. M12 plug assignment Installation of the separate flow meter evaluation unit The HEAD version (85 mm) - this is a remote evaluation electronics unit (as per order). +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 23...

  • Page 24: Power Supply Cover

    Operating instructions FlowGuard® FT410 First decide whether you want to mount the mounting bracket behind or below the electronics (the bracket with holes facing upwards or downwards). Mount the mounting bracket on the aluminum housing of the measuring device, p l a c e the device on the wall or on a structure as required and mark the holes in this position for mounting the bracket.
  • Page 25 Operating instructions FlowGuard® FT410 closing/opening). The degree of contact making and contact opening is different - the contact has a hysteresis. The hysteresis can be set in %. The status output is used to evaluate the counter status - error, warning, fault, error + warning.
  • Page 26 Operating instructions FlowGuard® FT410 Connection example - active pulse output: Terminal strip Cable connection: Due to CTR≈100% and If = 2.5mA, it is necessary to select the collector current of up to 2.5 mA. +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 26...

  • Page 27: Current Output

    Operating instructions FlowGuard® FT410 Current output The FlowGuard® FT410 has a resolution of 16-bit with an update of the data every second. The converter is galvanically isolated from the sensor. With a passive current output, it is necessary to set up an external power supply.

  • Page 28: Control Input

    Operating instructions FlowGuard® FT410 Control input External reset The volumetric counter is zeroed via the external input PIN9 and PIN10, provided the jumpers on the power supply unit (as shown in the following illustration) are switched to the position. The input is isolated by an optocoupler.

  • Page 29: Checking The Wiring/Installation

    Operating instructions FlowGuard® FT410 The device fuse is located on the power supply board and is replaced as follows: Switch off the power supply. Unscrew the rear cover of the meter housing. Remove the protective cover and replace the appliance fuse (only use T250mA / 250V tube fuses) 4.12 Checking the wiring/installation...

  • Page 30: Operation

    Operating instructions FlowGuard® FT410 5. Operation Before switching on the appliance, check that the flow sensor has been correctly installed and wired. If an exact measurement (reference measurement) is to be carried out directly after installation, it is recommended to cover the measuring electrodes with water 1 or 2 days before installation.

  • Page 31: Status Of The Device

    Setting up the basic parameters The parameters of the FlowGuard® FT410 are preset by SEIKOM Electronic according to your order. If no desired parameters have been ordered, the meter will h a v e the standard parameterization. The user can change the parameters u s i n g the buttons and the operating menu.

  • Page 32: Technical Data

    Operating instructions FlowGuard® FT410 6. Technical data Evaluation electronics Supply voltage: 230 V ( +10;-20%) 50 60 Hz (standard) 24 V AC/DC with Reverse polarity protection (on order) Power consumption: 4.6 VA Display: LCD 2 x 16 characters, backlight Size: DN10-400 Lining material: Rubber (hard, soft, certified for drinking water): DN25 ...
  • Page 33 Operating instructions FlowGuard® FT410 Output: Pulses up to 400 Hz; selectable constant current loop 4 ... 20 mA; selection range Input: Reset of the zero counters (only when ordered) Communication: RS485 interface; MODBUS, M-Bus protocol (control: external buttons ▲ and ▼) (internal buttons ▲, E , ▼) Protection class: min.
  • Page 34 Operating instructions FlowGuard® FT410 Error limit under reference conditions (measuring range 1:1000) +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 34...

  • Page 35: Factory Configuration

    Operating instructions FlowGuard® FT410 Factory configuration The current loop is set so that the zero flow corresponds to 4 mA and the maximum flow 20 mA. The address of the meter is set to 1 and the communication parameters are set to 2400 Bd, 8 db, 1 sb, parity EVEN (Mbus) or 9600 Bd, 8 db, 1 sb, without parity (Modbus).

  • Page 36: Setting And Checking The Flowguard® Ft410

    Operating instructions FlowGuard® FT410 Flow ranges for the individual DN sizes: Diameter [mm] Setting and checking the FlowGuard® FT410 User modification The flow meter allows the user to rotate the display depending on how it needs to be installed. To rotate the display, the cover must b e removed from the display head.

  • Page 37: Operation Flowguard® Ft410

    Operating instructions FlowGuard® FT410 The instructions for adjusting the position of the display: 1. Remove the top cover with glass viewing window 2. Loosen the four fastening screws 3. Remove the metal frame 4. Rotate the circuit board with display to the desired position (by ± 90° or 180°) 5.
  • Page 38 Operating instructions FlowGuard® FT410 Inner button functions: Before pressing the E button and entering the password: ▲ short press Move up in the current menu, change the price value upwards ▼ Shift downwards in the current menu, change the cursor short press value downwards ▲/ E...
  • Page 39 The PRODUCTION PASSWORD is a generated, unique password that is linked to the respective meter and is not publicly accessible. The data can only be changed under the production password by a person authorized by SEIKOM Electronic. These are the following data:...
  • Page 40 Operating instructions FlowGuard® FT410 Basic menu The basic display menu contains the following items: NAME INDEX Date and time Flow rate Flow bar graph " Volume (+) Volume (-) Total volume ΣV User volume Status The order may vary depending on the meter settings. You can select the data to be displayed on the first two lines (or change the order) to suit your requirements.
  • Page 41 Operating instructions FlowGuard® FT410 The outer and inner menu buttons ▲ and ▼ can be used to scroll through the basic menu, reset user volumes, change parameters or exit the menu. The parameter menu contains the following elements: 1. Date and time 2.
  • Page 42 When operating the parameter menu for the first time (long press on the ▲ button), an authorization password must be entered (the default password of SEIKOM Electronic: 0000). This is set separately for each of the four numbers from left to right using the ▲ or ▼ buttons. The password is confirmed with the E button.

  • Page 43: Date And Time

    Operating instructions FlowGuard® FT410 If you do not want to set a simple numerical number, but a list of possible values, the units are selected using the ▲ and ▼ buttons and confirmed individually with the E button. After a successful entry, you will be asked whether the changed password should be saved: Answer with Yes/No and confirm with the E button.

  • Page 44: Power Supply Failure

    Operating instructions FlowGuard® FT410 6.3.3. Failure of the power supply This item monitors the time of the power failure at the meter. The first line contains the date of the last reset and the second line the duration of the outage. The position can be reset by pressing the E button.
  • Page 45 Operating instructions FlowGuard® FT410 *Note Period [ms] = pulse width [ms] + interpulse interval [ms] where gap ≥ width The pulse width is selected in steps by scrolling through predefined values using the ▲ or ▼ buttons. Flow switch The logic (polarity) of the electrical signal (positive/negative) can be changed for the flow switch (note that no pulse output is possible in this case).
  • Page 46 Operating instructions FlowGuard® FT410 OUT2 Pulse output settings To fully set the pulse output parameters, it is possible to change the logic (polarity) of the electrical signal (positive/negative), set the pulse output to which the volumetric counter should respond (volume runs in the positive direction, in the opposite direction and in both directions) and set your own pulse constant including its display (imp/L or L/imp).
  • Page 47 Operating instructions FlowGuard® FT410 The status contact makes it possible to set the hysteresis between the Qon and Qoff states. *Qlimit - the number of decimal places is specified by DN of the specified counter and cannot be changed. Meter reading - error output Output 2 opposite output 1 can also be set as the error status output of the meter.

  • Page 48: Current Output

    Operating instructions FlowGuard® FT410 6.3.4. Current output There are two parameters for setting the current output that can be used to define the limits of the current loop for the desired flow and the type of connection to the flow direction. If "+Q"...

  • Page 49: Offset

    Operating instructions FlowGuard® FT410 6.3.5. Offset The analog output 4 ... 20 mA can also be adjusted with an offset. 6.3.6. Communication (optional) If the flow meter is ordered with an RS485 communication interface, these parameters can be set. A number between 0 and 255 can be selected for the address.

  • Page 50: Modbus Rtu Communication Protocol

    Operating instructions FlowGuard® FT410 6.3.7. Communication protocol MODBUS RTU transmission service The master station is the primary station that initiates all information transmissions. The satellite stations are secondary stations that only transmit information w h e n requested. Transmission speed The transmission speed can be 1200, 2400, 4800 or 9600 baud.
  • Page 51 Operating instructions FlowGuard® FT410 *Error Code: Hi Byte = 0 Lo Byte = Error Code: bit 0 Add volume overflow (inappropriate increase) bit 1 Frame error bit 2 Empty conduit bit 3 Input/ output overflow bit 4 reserved bit 5 reserved bit 6 reserved...
  • Page 52 Operating instructions FlowGuard® FT410 Answer: address Function code Number of bytes Number of registers Hi xxh (volume ∑) Number of registers Lo Number of registers Hi xxh (volume +) Number of registers Lo Number of registers Hi xxh (volume -) Number of registers Lo Number of registers Hi xxh (volume user) xxh...
  • Page 53 Operating instructions FlowGuard® FT410 Modbus register *1 Calculate the serial number using the following formula: Serial number = (upper register * 65536) + lower register *2 Calculate the totals using the following formula: Sum X = ((upper register *65536) + lower register) /100 +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 53...

  • Page 54: M-Bus Communication Protocol

    Operating instructions FlowGuard® FT410 *3 Contents of the status register: bit 0 Error during summation (incorrect increment) bit 1 FRAME error bit 2 Empty measuring tube bit 3 Pulse output overflow bit 4 ReserveCC bit 5 Reserve bit 6 Reserve bit 7 Reserve 6.3.8.
  • Page 55 Operating instructions FlowGuard® FT410 Answer: The measuring device responds with a frame consisting of the following parameters: Identification number Volume Σ Volume User Volume + Volume - Flow Software Version Error Code Volume Σ, volume user, volume +, volume - The volume is transmitted (32-bit integer coded) with the unit of the lowest digit/digit on the display.
  • Page 56 Operating instructions FlowGuard® FT410 Flow rate The flow rate is transmitted in 4 binary bytes (32-bit integer coded). The following options are available for the VIF value: Transferred unit Software version Format 8 bit integer Alarms (8-bit integer) Bit 0 Add volume overflow (inappropriate increase) Bit 1 Frame error Bit 2...
  • Page 57 Operating instructions FlowGuard® FT410 Meter Answer Frame Start (total length of the frame) - 6 (total length of the frame) - 6 Start Address CI (mode 1) Identification number (LSB) " " xxh " (MSB) Manufacturer identification " Dimension code Water meter xxh Number of the access Error code...

  • Page 58: Basic Display

    Operating instructions FlowGuard® FT410 Volume - (LSB) " " " (MSB) DIF: 4 bytes binary coded 38h-4Eh VIF: Flow rate, depending on the decimal place Flow rate - (LBS) " " " (MSB) DIF: 1 byte binary coded VIF: Extension of the VIF code VIFE: Software version Software version Value DIF: 1 byte binary coded...

  • Page 59: Attenuation

    Operating instructions FlowGuard® FT410 6.4.1. Attenuation This parameter is used to set the time for averaging the flow rate values. The maximum time is 29 seconds. 6.4.2. Lighting This parameter is used to select the time after which the display goes dark again if it is not used. The required setting is saved by pressing the ▲...

  • Page 60: Serial Number

    Operating instructions FlowGuard® FT410 6.4.3. Serial number A serial number is assigned by SEIKOM Electronic and cannot be changed by the user. 6.4.4. Calibration constants Calibration constants are set by SEIKOM Electronic and cannot be changed by the user. Changes can only be made by an authorized person with a production password.

  • Page 61: Firmware Version

    FlowGuard® FT410 6.4.6. Firmware version The firmware version is assigned by SEIKOM Electronic and cannot be changed by the user. 6.4.7. Insensitivity range - suppression of the measuring start point The start of the measurement is recorded during production and cannot be changed by the user.

  • Page 62: Flow Simulation

    Operating instructions FlowGuard® FT410 6.4.9. Flow simulation The flow simulation is used to easily set and check the system without actually installing the device and without the flowing medium. The display shows the simulated flow rate as well as the current and pulse output.

  • Page 63: Resetting The Counters

    (ΣV, -V, +V or all). 6.4.12. Nominal diameter (DN) This parameter is configured by SEIKOM Electronic and cannot be changed. The DN change can only be carried out by an authorized person with a production password.

  • Page 64: Flow Units [Q]

    Operating instructions FlowGuard® FT410 6.4.14. Flow units [Q] The flow units are changed using the E button. The required number of decimal places is set by clicking on the ▲ and ▼ buttons and confirmed with the E button. 6.4.15. Share of flow units [Q] in percent (bar graph) This parameter is used to set the bar graph.

  • Page 65: Volume Units [V]

    6.4.18. Change password The default password of SEIKOM Electronic is 0000, but the user can change it by pressing the E key. The password must consist of 4 digits. +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com...
  • Page 66 Operating instructions FlowGuard® FT410 Factory setting (SEIKOM Electronic factory setting) This function resets the configuration of the measuring device to the factory settings. All user settings are deleted. If jumper J1 is set, the volume counters are also reset. This function can be activated without a user password! To change the factory setting, press the E button and click on the ▲...
  • Page 67 Operating instructions FlowGuard® FT410 Extension module The FlowGuard® FT410 can be equipped with an extension module for expansion with the following function: 1) DATA LOGGER 2) MBus 3) DATENLOGGER + MBus The extension module is inserted into the slot in the power supply unit of the meter and fastened with an M3 screw.
  • Page 68 Operating instructions FlowGuard® FT410 Data logger Switch off the power supply, insert the expansion card into the free slot and secure it with an M3 screw. Insert the prepared microSDHC card into the module after switching it on. After insertion, the DATALOGGER is automatically created in the SET menu of the measuring device.
  • Page 69 Operating instructions FlowGuard® FT410 MBus Switch off the power supply, insert the expansion card into the free slot and secure it with an M3 screw. After switching off, connect the MBus communication cable to the terminals of the extension module. Communication parameters: 2400Bd paEven...

  • Page 70: Application Notes

    Operating instructions FlowGuard® FT410 7. Application notes Installation of the sensor with a separate evaluation unit: First of all, it should be determined which type of mounting is to be used, whether the mounting is to be mounted behind the electronics or under the electronics. The mounting corner is attached to the wall using screws.

  • Page 71: Disassembly And Assembly Of Printed Circuit Boards

    Operating instructions FlowGuard® FT410 Disassembly and assembly of printed circuit boards Mains board with terminals Risk of electric shock! Before removing the electronics, make sure that the appliance is switched off and disconnected from the power supply. Unscrew the cover of the appliance Remove the cables from the plug-in terminals if necessary.

  • Page 72: Basic Dimensions Of The Sensor

    Operating instructions FlowGuard® FT410 Basic dimensions of the sensor Screw thread +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 72...
  • Page 73 Operating instructions FlowGuard® FT410 Sandwich +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 73...
  • Page 74 Operating instructions FlowGuard® FT410 Flange Page: 74 +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com...
  • Page 75 Operating instructions FlowGuard® FT410 Food industry +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 75...

  • Page 76: Nomogram For Quick Selection Of The Measuring Point

    Operating instructions FlowGuard® FT410 Nomogram for quick selection of the measuring point Reduction of the pipe diameter If the diameter of the pipe is larger than the diameter of the sensor. +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 76...

  • Page 77: Interference During Measurement

    Operating instructions FlowGuard® FT410 Interference during measurement If errors occur during the measurement, this may be due to the following causes: High solids content Inhomogeneity of the liquid Interruption of mixing Continuous chemical reactions of the liquid Use of diaphragm and piston pumps Poor earthing 8.

  • Page 78: Eu Declaration Of Conformity

    Operating instructions FlowGuard® FT410 9. EU DECLARATION OF CONFORMITY +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 78...
  • Page 79 Operating instructions FlowGuard® FT410 Notes +49 2058 916 900 0 - info@seikom-electronic.com - www.seikom-electronic.com Page: 79...
