NOVATEK-ELECTRO LTD
intellectual commercial electronics
Quality control system on the production complies with requirements ISO 9001:2008
Store the unit in the operating environment for 2 hours before switching to the mains.
WARNING! THE UNIT SHOULD BE OPERATED IN THE ELECTRIC MAINS PROTECTED WITH
AUTOMATIC CIRCUIT BREAKER WITH THE BREAKING CURRENT OF 32 A, NO MORE.
This unit is not designed for power-cut in event of a short circuit
This unit is safe for use in case of compliance with operating rules
Do not use abrasives or organic compounds for cleaning (spirit, gasoline, solvents, etc.).
NEVER ATTEMPT TO REMOVE AND REPAIR THE UNIT.
NEVER ATTEMPT TO OPERATE THE UNIT WITH THE MECHANICAL DAMAGE OF THE HOUSING.
NEVER ATTEMPT TO OPERATE THE UNIT UNDER CONDITIONS OF HIGH HUMIDITY.
DO NOT LET WATER INTO THE UNIT.
UNPLUG THE UNIT BY DISCONNECTING THE POWER CORD FOR TROUBLESHOOTING, MAINTENANCE,
OR INSTALLATION WORKS
The device is safe for use when observing the rules of exploitation
UKRAINE, Odessa

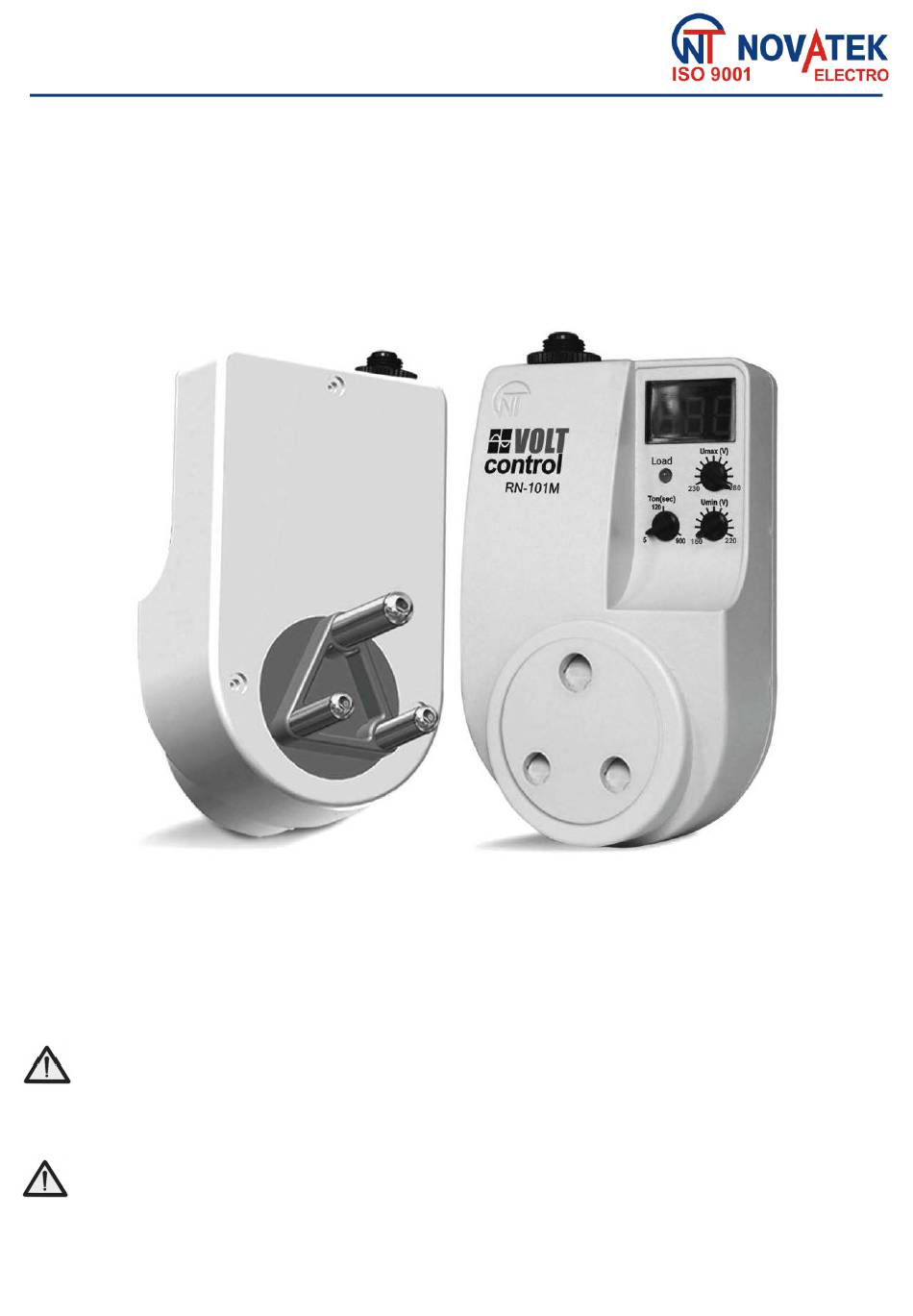

VOLTAGE MONITORING RELAY
RN-101М
"VOLT CONTROL"
OPERATING MANUAL
Review the Operating manual before using the unit
www.novatek-electro.com
Advertisement
Related Manuals for Novatek-electro VOLT CONTROL RN-101M
Summary of Contents for Novatek-electro VOLT CONTROL RN-101M
- Page 1 NOVATEK-ELECTRO LTD intellectual commercial electronics VOLTAGE MONITORING RELAY RN-101М “VOLT CONTROL” OPERATING MANUAL Quality control system on the production complies with requirements ISO 9001:2008 Review the Operating manual before using the unit Store the unit in the operating environment for 2 hours before switching to the mains.
- Page 2 Control and distribution equipment Typical operation Continued Index protection of electrical shock Face panel protection degree IP30 °С Operational temperature range from -20 to + 55 Permissible degree of pollution Overvoltage category Nominal voltage of insulation Rated impulse withstand voltage, RN-101M NOVATEK-ELECTRO...
- Page 3 The relay is in the normal state when the monitored voltage is within the specified limits, the overcurrent protection breaker is closed and the AR delay time has expired. In this state, the load is connected to the mains, the LOAD LED is ON, and the display shows the monitored voltage value. RN-101M NOVATEK-ELECTRO...
- Page 4 Date of manufacture ____________________ ______________ 8 NOTICES OF CLAIMS ______________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ Contacts: "Novatek-Electro" Ltd. 59, Admiral Lazarev str., Odessa, Ukraine, 65007; Tel: +38 048 738-00-28; +38 0482 37-48-27; Fax: +38 0482 34 36 73; www.novatek-electro.com _______________ Date of sale...
