NOVATEK-ELECTRO LTD
Research-and-Manufacture Company

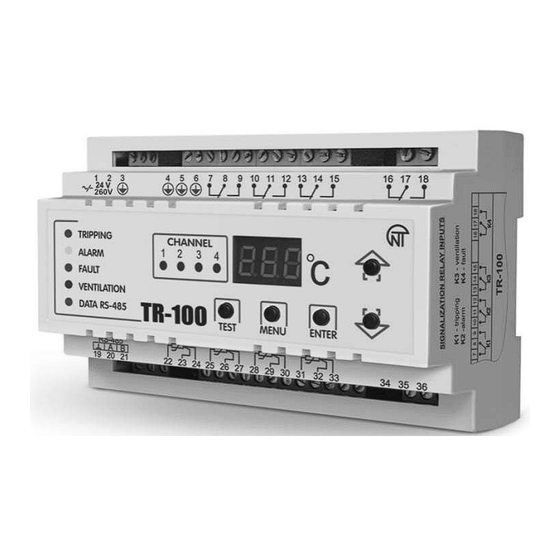

DIGITAL TEMPERATURE RELAY
TR-100
OPERATING MANUAL
UKRAINE, Odessa
www.novatek-electro.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Novatek-electro TR-100

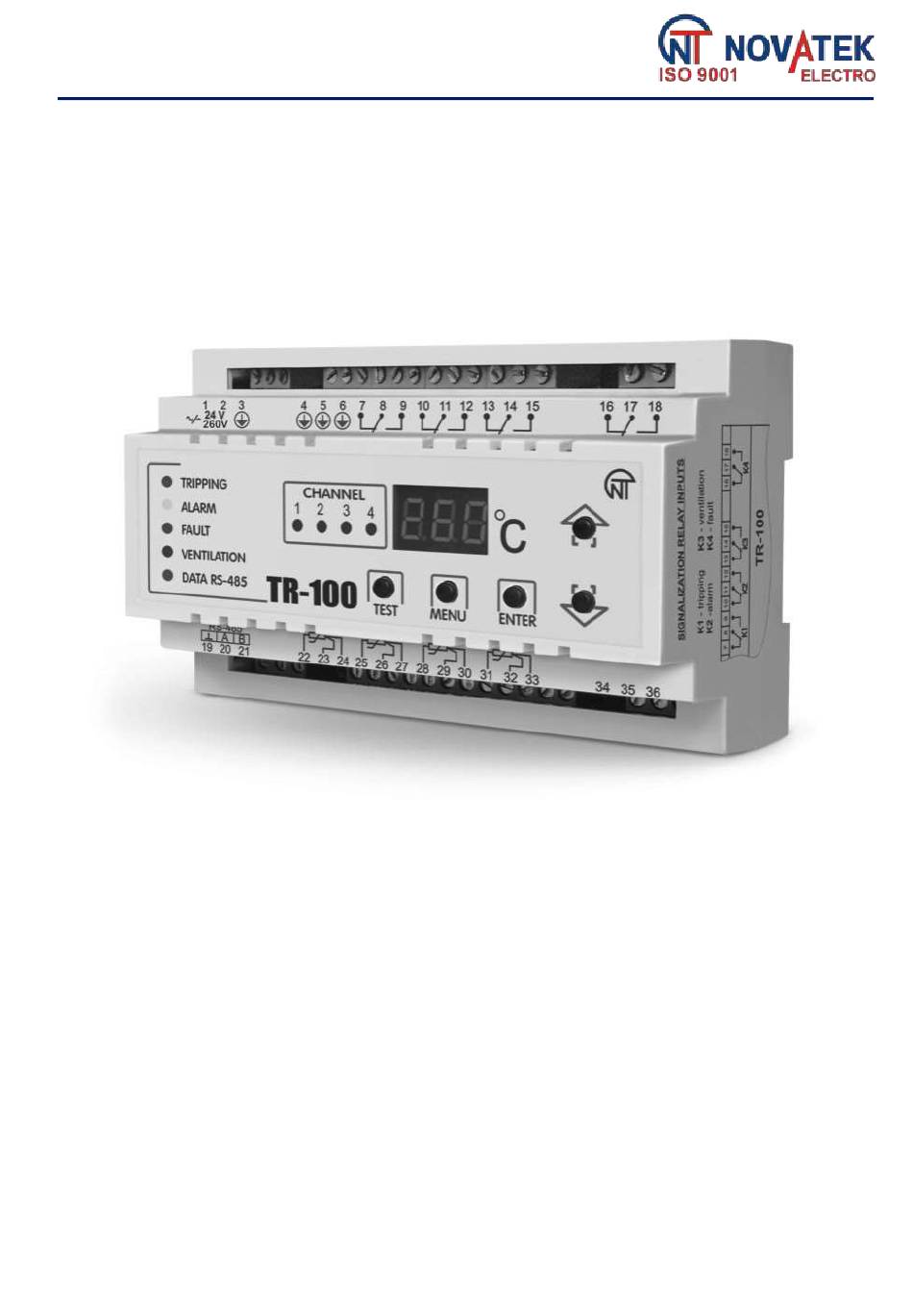

  • Page 1 NOVATEK-ELECTRO LTD Research-and-Manufacture Company DIGITAL TEMPERATURE RELAY TR-100 OPERATING MANUAL UKRAINE, Odessa www.novatek-electro.com...
  • Page 2: Technical Characteristics

    TR-100 is designed for take measurement and control of temperature of device by 4 sensors which are may connected by two or three wire connection scheme. Temperatures will be indicated on digital display. It is possible to use alarm signals when some of parameters come out of user adjusted ranges. TR-100 can be use for protection ...
  • Page 3 2 TR-100 OPERATION AND APPLICATION 2.1 TR-100 START-UP 2.1.1 Safety All connection must be completed only BEFORE TR-100 gets power supply. 2.1.2 Connection TR-100 must be according to picture 2. Note: All measurement transmission cables from temperature sensors should be corresponded with next requirements: ...
  • Page 4 To enter in menu item, press button, to return to previous item, press once again. If any buttons are in inaction for more than 20 seconds, TR-100 will return to initial mode. In viewing mode, changing of parameters is impossible.
  • Page 5 2.2.4 Usage ventilation. TR-100 is able to control of switching on and cutting off of cooling fan, for this it is necessary to set value of parameter as different from 0 (see Table 3):  Mode 1 – In this mode, temperature is detected due THREE sensors 1, 2 and 3. As soon as temperature of...
  • Page 6 Fault relay operates in normally close conditional. It is ON, when device is turned ON, and it is OFF when there are faults of sensors or power is cut off, indication of faults is ON if there are faults of TR-100 or sensors. In case damage of one of connected thermal sensors indicators “TRIPPING”, “ALARM”,”...
  • Page 7 0x126 Version Device version Channel 1 Usage of channel1: 0 – Channel is OFF; 0x128 Channel is ON 1 – Channel is ON; Scale shift on CA1 relatively measured by -9/9 ºС 0x12A Calibration thermal sensor TR-100 NOVATEK-ELECTRO...
  • Page 8 2 – KTY83 (1000 Ohms); 3 – KTY84 (1000 Ohms); 4 – PTC (1, 3, 6); Maximal value Maximal detected value for Channel 4 since 0x146 for channel 4 the moment of last settings reset. ______ * Parameters is read only. TR-100 NOVATEK-ELECTRO...
  • Page 9 “3” of parameters as per Table 3. Measurement range of temperature is -40 to +140 °C. TR-100 detects break and shorting of measuring lines. 2.2.8.5 Sensors of PTC type. Semiconductor resistors which are able to sharply change electrical resistance under temperature changing on the body surface in range of sensitivity limit.
  • Page 10 The software, allowing to print a current state on the display of the personal computer, it is possible to download from a site www.novatek-electro.com in part “Production”. Addresses of registers of programming parameters in decimal style are given in Table 3.
  • Page 11: Maintenance

    The manufacturer shall repair the unit, in the compliance with the operating manual by the user, within the warranty period. TR-100 is not subject to the warranty service in the following cases: expiry of the warranty period; availability of mechanical damages;...
