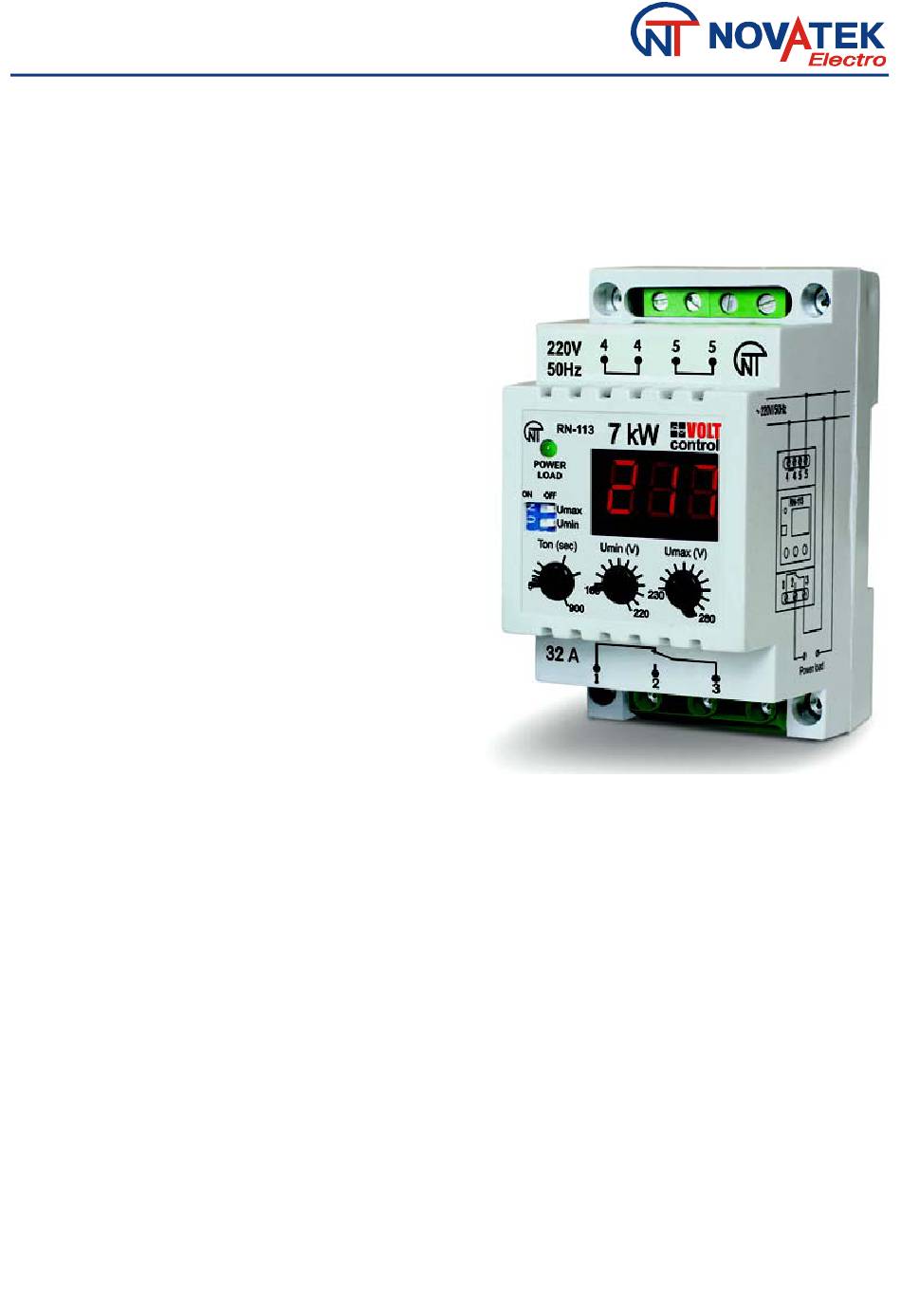

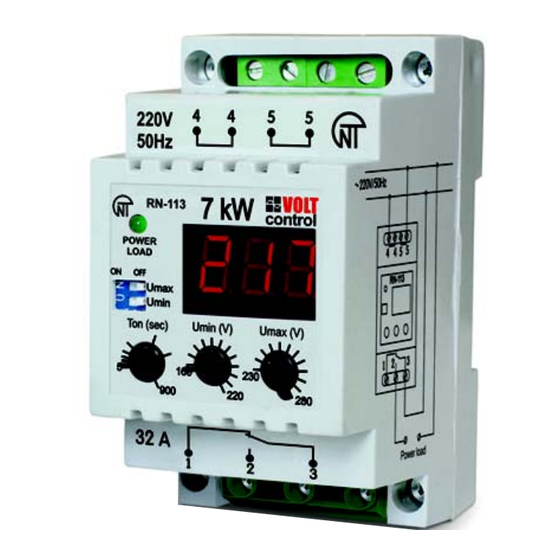

- Page 1 NOVATEK-ELECTRO LTD Research-and-Manufacture Company SINGLE PHASE VOLTAGE MONITORING RELAY RN-113 USERS MANUAL...
- Page 2 – it automatically turns ON the power load with the user adjusted time delay (autoreclosing time). If power load is less than 7,0 kW (32A) then RN-113 may operate with the power load directly using its own output terminals; ...
- Page 3 1 and 3. If power load is less than 7kW (32A) then it could be commutated directly by the output contacts of the RN-113; if the power load is more than 7 kW – then it should be commutated using contactor of appropriate rated parameters and the RN-113 should operate with the magnetic coil of the contactor.
- Page 4 Left position. In case the voltage level will get lower/higher than the user adjusted allowable values – the power load will be turned OFF. RN-113 will turn ON the power load with the user preset time delay (Ton) only after voltage parameters returned back to normal.
- Page 5 If input voltage gets higher than the maximal tripping voltage threshold for more than 1 sec or accelerated tripping time of 0,2 sec is applied if the voltage is 30V higher than the maximal tripping threshold – then the RN-113 comes to Alarm mode –...
