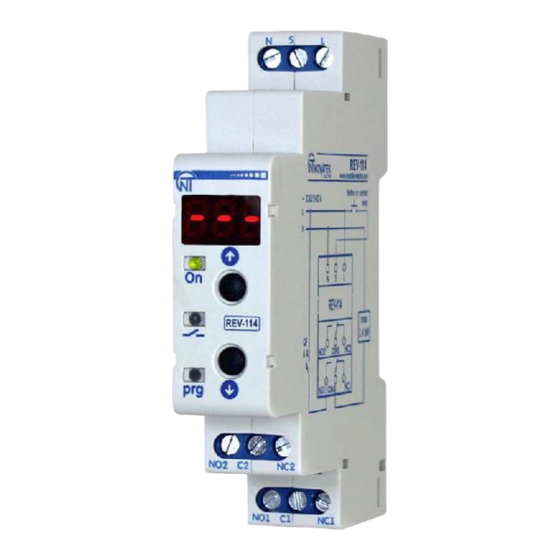

Novatek-electro REV-114 Operating Manual

Novatek-electro REV-114 Operating Manual

Time delay relay

Advertisement

Quick Links

NOVATEK-ELECTRO Ltd
Intelligent industrial electronics
TIME DELAY RELAY
REV-114
The quality management system of development and production production complies with the requirements
You will be able to use properly the product after carefully studying the Operating Manual.
OPERATING MANUAL
of ISO 9001:2015
Dear Customer,
Company thanks you for purchasing our products.
Keep the Manual throughout the service life of the product.
www.novatek-electro.in

Advertisement

loading
Need help?

Need help?

Do you have a question about the REV-114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Novatek-electro REV-114

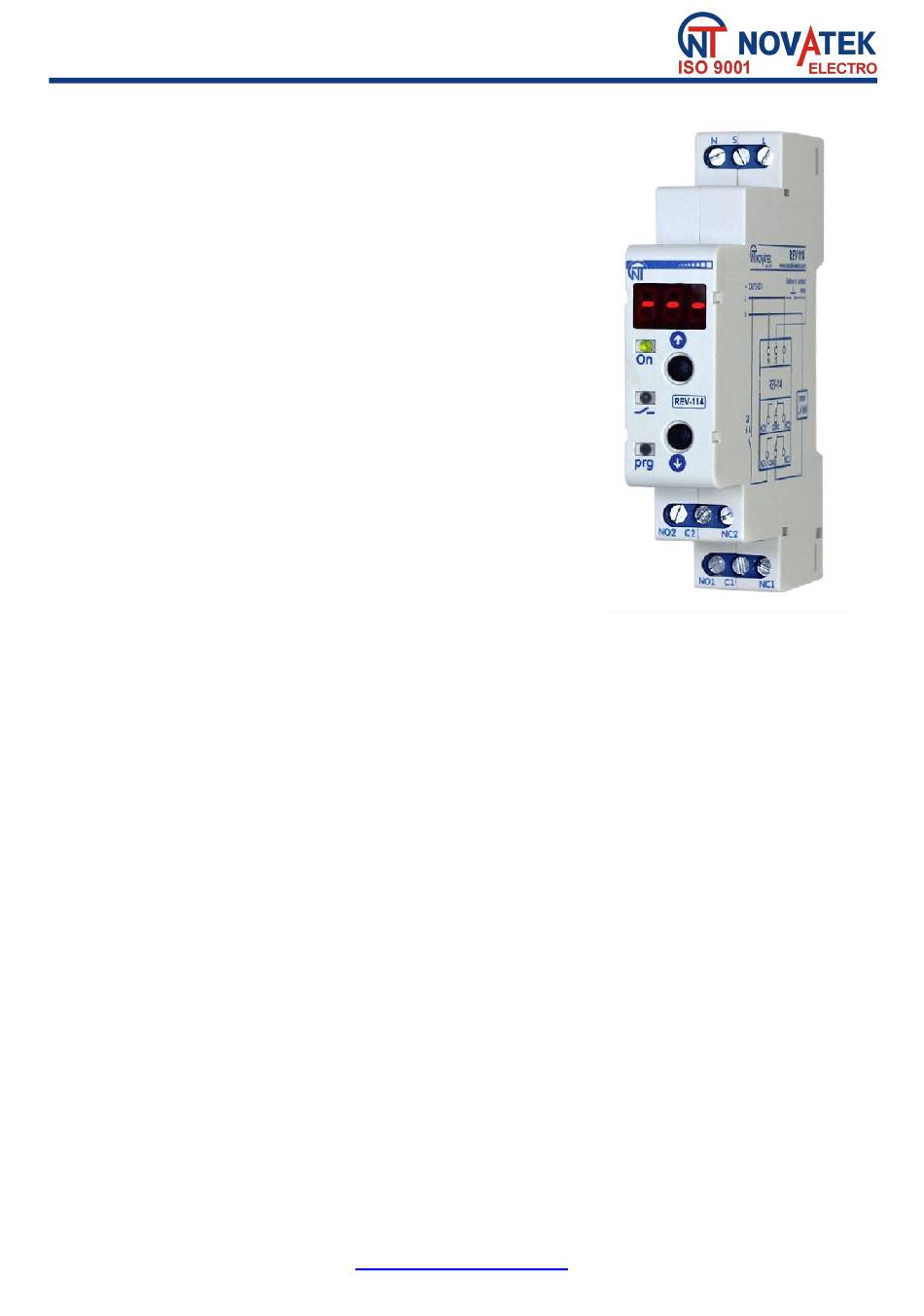

  • Page 1 NOVATEK-ELECTRO Ltd Intelligent industrial electronics TIME DELAY RELAY REV-114 OPERATING MANUAL The quality management system of development and production production complies with the requirements of ISO 9001:2015 Dear Customer, Company thanks you for purchasing our products. You will be able to use properly the product after carefully studying the Operating Manual.
  • Page 2 Safety Rules for Operation of Consumer Electrical Installations; Occupational Safety in Operation of Electrical Installations; Installation, adjustment and maintenance of the product must be performed by qualified personnel having studied this Operation Manual. The product is safe for use under keeping of the operating rules. REV-114 NOVATEK-ELECTRO...
  • Page 3 1. APPLICATION 1.1. Product application The time delay relay REV-114 is the microprocessor-based device intended to control the load with independent time delay. It provides the certain sequence of the load operation according to the mode specified by the user.
  • Page 4: Specifications

    Max. current at Max. switching Max. permissible Max. current at сos  U~250 V, А power, VA continuous AC voltage, V =28 V, A 1500 2.2. Product operation modes The product operation modes are given in Table 3. REV-114 NOVATEK-ELECTRO...
  • Page 5 During the delay time the indicator (Fig.1 it.9) periodically is off. At the end of the delay time the load relay contacts C and NO are open, the indicator is off and the product goes into standby mode until power-off. NOVATEK-ELECTRO REV-114...
  • Page 6 At the end of the delay time the load relay contacts are open, the indicator is off and the product goes into standby mode. When control signal S occurs, the algorithm fulfillment is repeated. REV-114 NOVATEK-ELECTRO...
  • Page 7 At the end of the delay time the product starts the algorithm fulfillment from the beginning. When there is no the control signal S, the algorithm fulfillment is stopped, the load relay contacts C and NO are open and the product goes into the standby mode. NOVATEK-ELECTRO REV-114...
  • Page 8: Intended Use

    To improve performance of the product it is recommended to install the fuse or the analogue in the power supply circuit of REV-114 for 1 A current. To ensure the reliability of electrical connections you should use flexible (stranded) wires with insulation for voltage of no less than 450 V, the ends of which it is necessary to be striped of insulation for 5±0.5 mm and...
  • Page 9 (Fig.1 it.8) is on and the display shows the first parameter of main menu ( ), release the buttons. Figure 3 shows the diagram for the configuration of the product. Figure 3 – Diagram for the configuration of the product NOVATEK-ELECTRO REV-114...
  • Page 10 . In this case the display will flash the current operation mode in the form of a decimal number. Using the buttons select the required operation mode (list of the operation modes for REV-114 is given in Table 3). Press the buttons one time to save the selected mode and return to the main menu.
  • Page 11 The Company is grateful to you for the information about the quality of the product and suggestions for its operation. For all questions, please contact the manufacturer: NOVATEK ELECTRO INDIA PVT. LTD. C-30, Patparganj Industrial Area, F.I.E. Delhi – 110092, INDIA; Tel.: +91 11 42143253 Tel./fax: +91 11 43010600 www.novatek-electro.in __________ Date of sale NOVATEK-ELECTRO REV-114...
  • Page 12 - 12 - REV-114 NOVATEK-ELECTRO...
