- Page 1 NOVATEK-ELECTRO LTD Research and Manufacturing Company RNPP-301 Three phase voltage and phase monitoring relay TECHNICAL DESCRIPTION AND USERS MANUAL www.novatek-electro.in...
- Page 2 13 terminals for the mode selection: line/phase voltage monitoring. 1. APPLICATION A RNPP-301 VOLTAGE CONTROL RELAY IS DESIGNED FOR: monitoring of the tolerable RMS phase/line voltage level (at the option of user) with independent setting adjustments for the minimum/maximum voltage thresholds;...

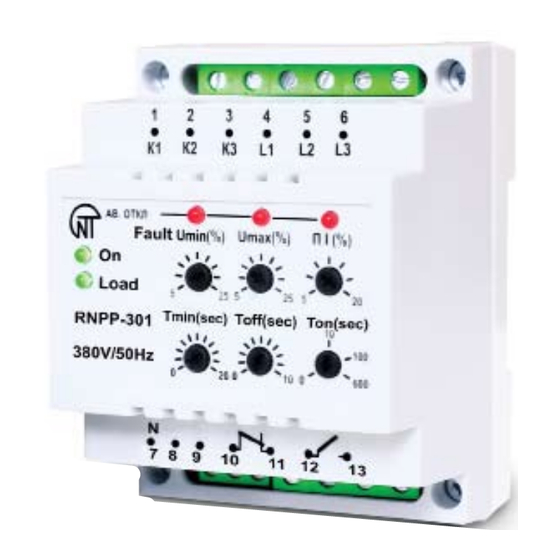

- Page 3 2. DESCRIPTION The RNPP-301 relay (hereafter “the relay”) is a digital microprocessor device that provides a high degree of reliability and accuracy. The relay doesn’t require any auxiliary power supply because it is self-powered by the three-phase voltage to be monitored. This permits the relay to keep operate capability even when only one phase is present (in the three-phase systems with neutral).
- Page 4 IP40 terminal block IP20 Operating temperature range, °C -35 to +55 Storage temperature, °C -45 to +70 Weight, no more than, kg 0.200 Case dimensions 4 modules of S-type Mounting rail 35 mm DIN Mounting position as desired RNPP-301...
- Page 5 Toff ≥ 1-1,5 sec to prevent the excessive relay trippings due to switching perturbations in the mains; • — automatic reset delay after the relay tripped and the mains voltage parameters have regenerated; this is also the energization time delay after the normal voltage was applied to the relay RNPP-301...
- Page 6 WIRING DIAGRAM The relay should be connected in parallel to load according to the diagrams shown below. The RNPP-301 wiring diagram with selectable mode of operation; SCHEME A. LINE VOLTAGE (PHASE-TO-PHASE) For line voltage monitoring mode that is not necessarily to connect the Neutral SCHEME B.
- Page 7 The Buyer must provide the protection of the relay against mechanical damages in transit WARRANTY Novatek company warrants a trouble-free operation of the RNPP-301 relay manufactured by it within 36 months from the date of sale, provided: -- the proper connection;...
- Page 8 NOVATEK ELECTRO INDIA PVT. LTD. C-30, Patparganj Industrial Area, 1st floor, Delhi - 110092, INDIA Email: info@novatek-electro.in Tel: +91 11 42143253 Fax: +91 11 43010600 www.novatek-electro.in RNPP-301...
