RNPP-311-1
THREE PHASE NUMERICAL VOLTAGE
MONITORING RELAY
PROTECTION

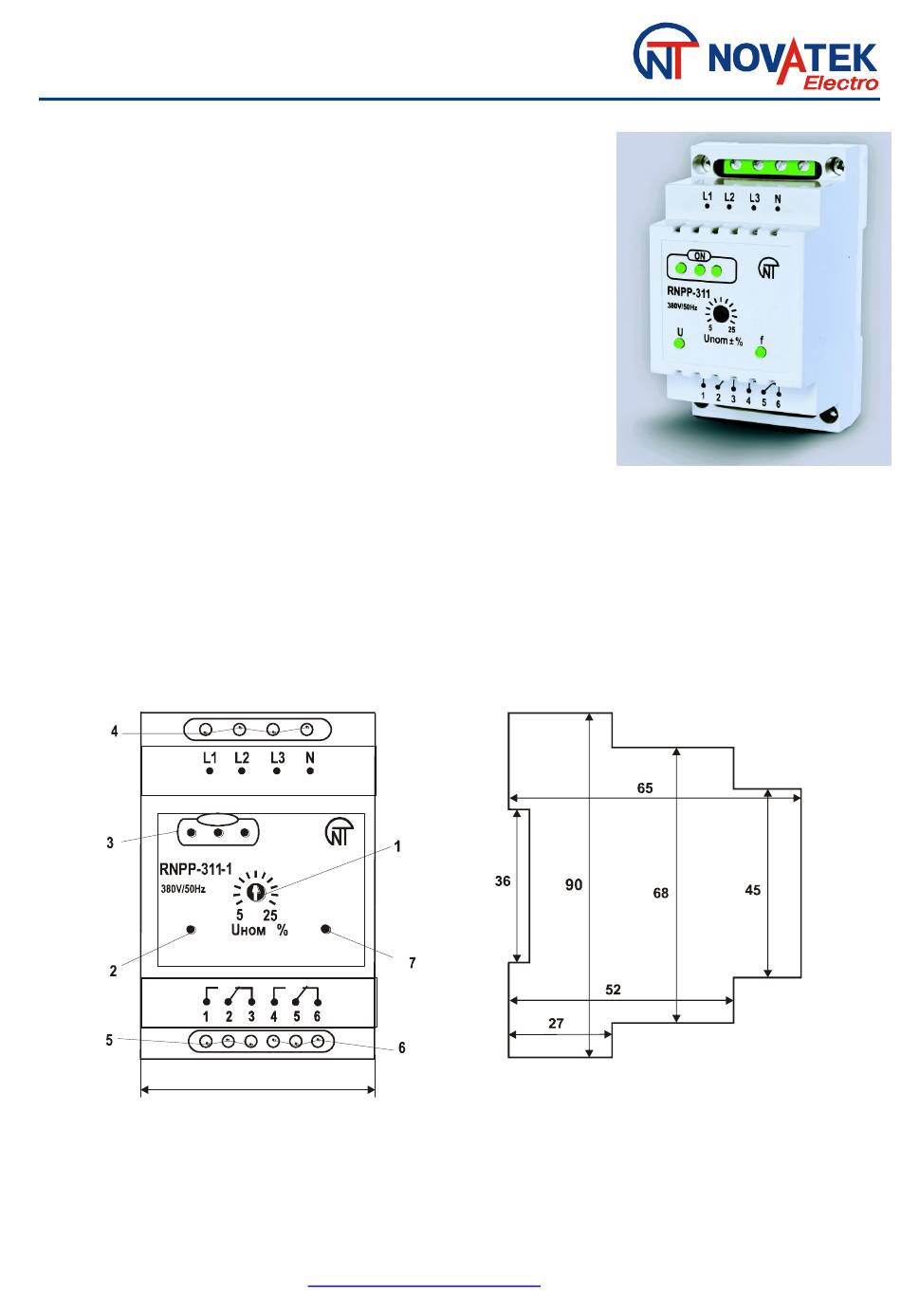

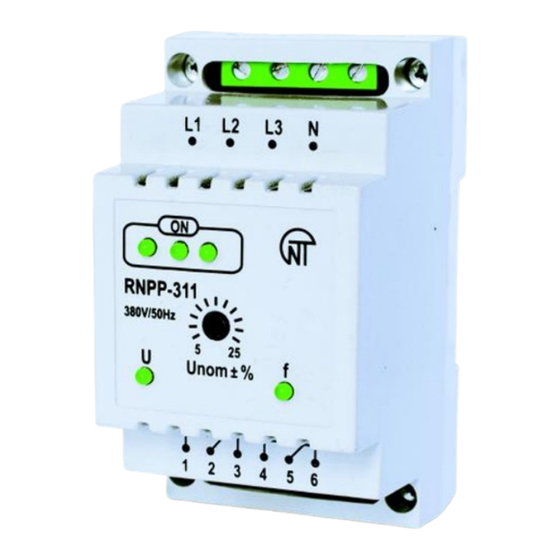

CONTROLS DESCRIPTION AND DIMENSIONS DIAGRAM
1- trip setting control for Umin/ Umax;
2- green LED of the voltage output;
3- green LEDs indicating voltage presence on each phase;
4- input contacts;
WITH FREQUENCY
OPERATION MANUAL
O N
f
U
5 2
www.novatek-electro.in
5- output voltage contacts;
6- output frequency contacts;
7- green LED of the frequency output.
