«NOVATEK-ELECTRO» Ltd
Intelligent industrial electronics

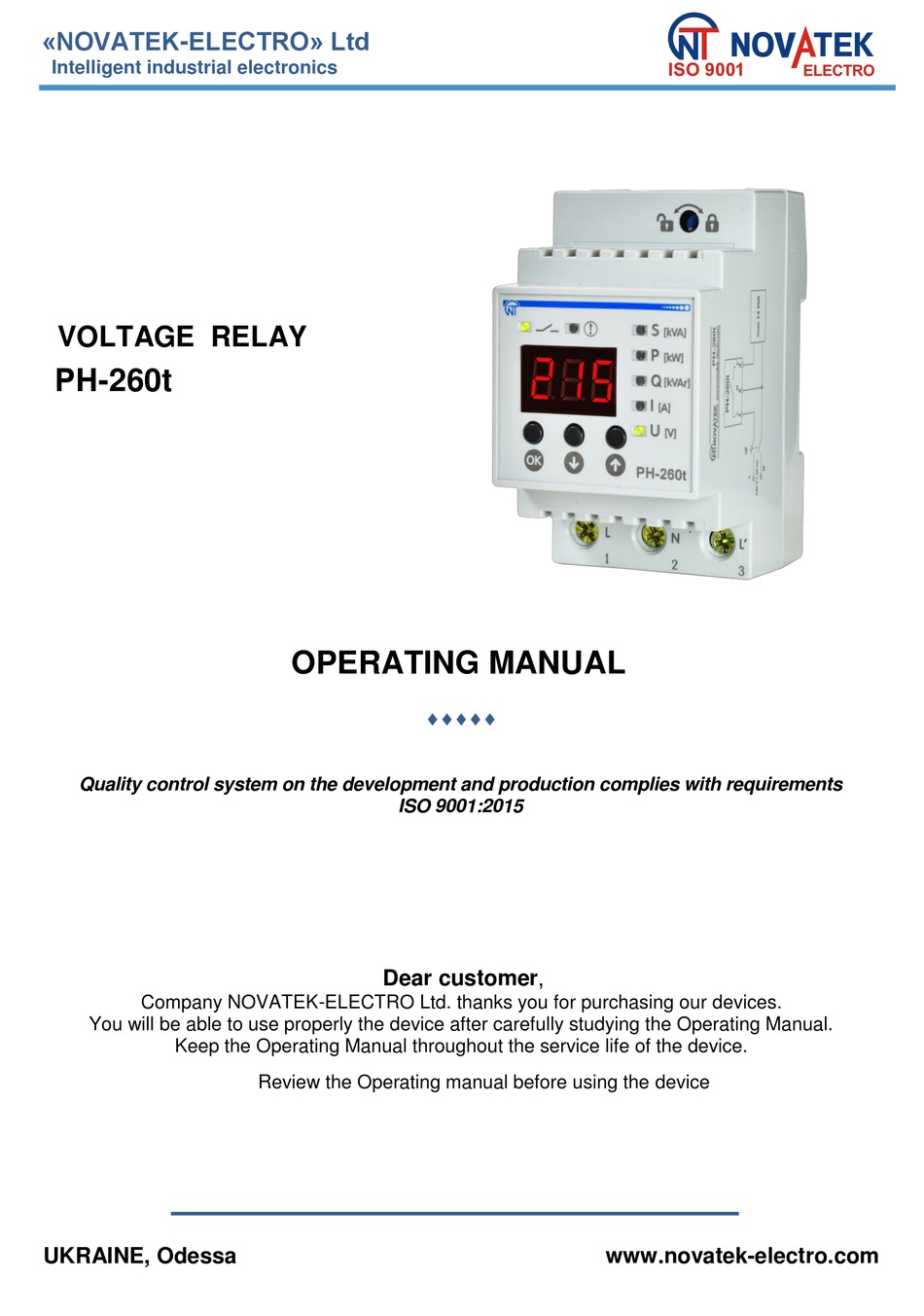

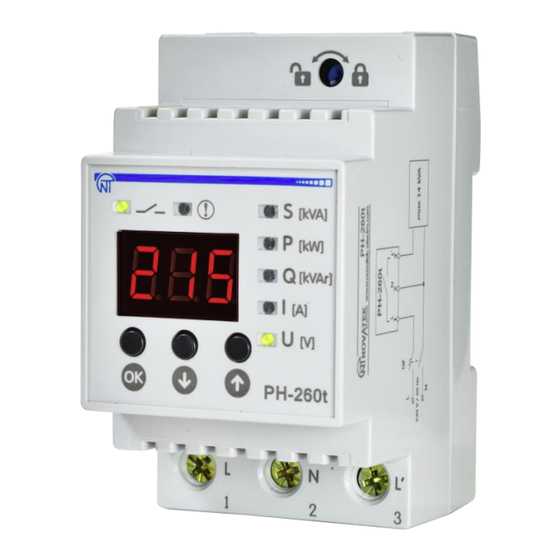

VOLTAGE RELAY
РН-260t
OPERATING MANUAL
Quality control system on the development and production complies with requirements
ISO 9001:2015
Dear customer,
Company NOVATEK-ELECTRO Ltd. thanks you for purchasing our devices.
You will be able to use properly the device after carefully studying the Operating Manual.
Keep the Operating Manual throughout the service life of the device.
Review the Operating manual before using the device
UKRAINE, Odessa
www.novatek-electro.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Novatek-electro PH-260t
Summary of Contents for Novatek-electro PH-260t
- Page 1 Quality control system on the development and production complies with requirements ISO 9001:2015 Dear customer, Company NOVATEK-ELECTRO Ltd. thanks you for purchasing our devices. You will be able to use properly the device after carefully studying the Operating Manual. Keep the Operating Manual throughout the service life of the device.
- Page 2 12 – green indicator I [A] lights up when a load current value is displayed; 13 – green indicator U [V] lights up when a mains voltage value is displayed. Figure 1 – Controls and overall dimensions of PH-260t PH-260t...
- Page 3 (zero) conductor breakage. PH-260t indicates the actual value of the voltage in the mains and the state of the output contacts (the state of the load).
- Page 4 Material of the body frame - self-extinguishing plastic At the mains voltage below 120 V and more than 350 V the value of voltage measured by the device is not correct Table 3 – Characteristics of PH-260t output contacts Description Value Maximal current at voltage of ~230 V (сos ...
- Page 5 When reducing the tightening torque, the junction point is heated, the terminal block may be melted and wire can burn. If you increase the tightening torque, it is possible to have thread failure of the terminal block screws or the compression of the connected wire. QF – a circuit breaker. Figure 2 – Device connection diagram NOVATEK-ELECTRO PH-260t...
- Page 6 3.1.4 To reset the parameters to the factory settings, it is necessary to set "Write Protect" switch to the « », to disconnect the device from the mains and, by holding the button , turn on the device (the password will be set to «»). РН-260t NOVATEK-ELECTRO...
- Page 7 If the overheating protection of the contact group is activated (temperature above 85 °C), the device will disconnect the load and further operation of the PH-260t will be blocked. The display will show « », all other indicators will go out. To resume operation of the device, you must disconnect the device from the mains, then turn it back on.
- Page 8 Head of QCD Date of manufacture _____________ _____________ Seal 8 CLAIMS DATA For all questions, please contact the manufacturer: NOVATEK-ELECTRO Ltd, 59, Admiral Lazarev Str., Date of sale: __________ Odessa, 65007, Ukraine. Tel.: +38 (048)738-00-28, Tel./fax: +38 (0482) 34-36-73 . www.novatek-electro.com VN200519 РН-260t...
