Solid State Logic SSL 18 User Manual page 30

allow you to insert analogue hardware into the record path for input 1, great for tracking with and committing analogue compression 'to
tape'.
'Use Line Output 10 as Insert Send 2' - repurposes the physical output labelled '10/2 SND' from it's normal operation (Output 10) and
moves it to the input stage of Analogue Input 2, for use as an insert send. Used in conjunction with the INS RTN 2 physical input, this
allow you to insert analogue hardware into the record path for input 2, great for tracking with and committing analogue compression 'to
tape'.
Please note if Analogue Inputs 1-2 are stereo linked, both options will be toggled together upon your mouse click.

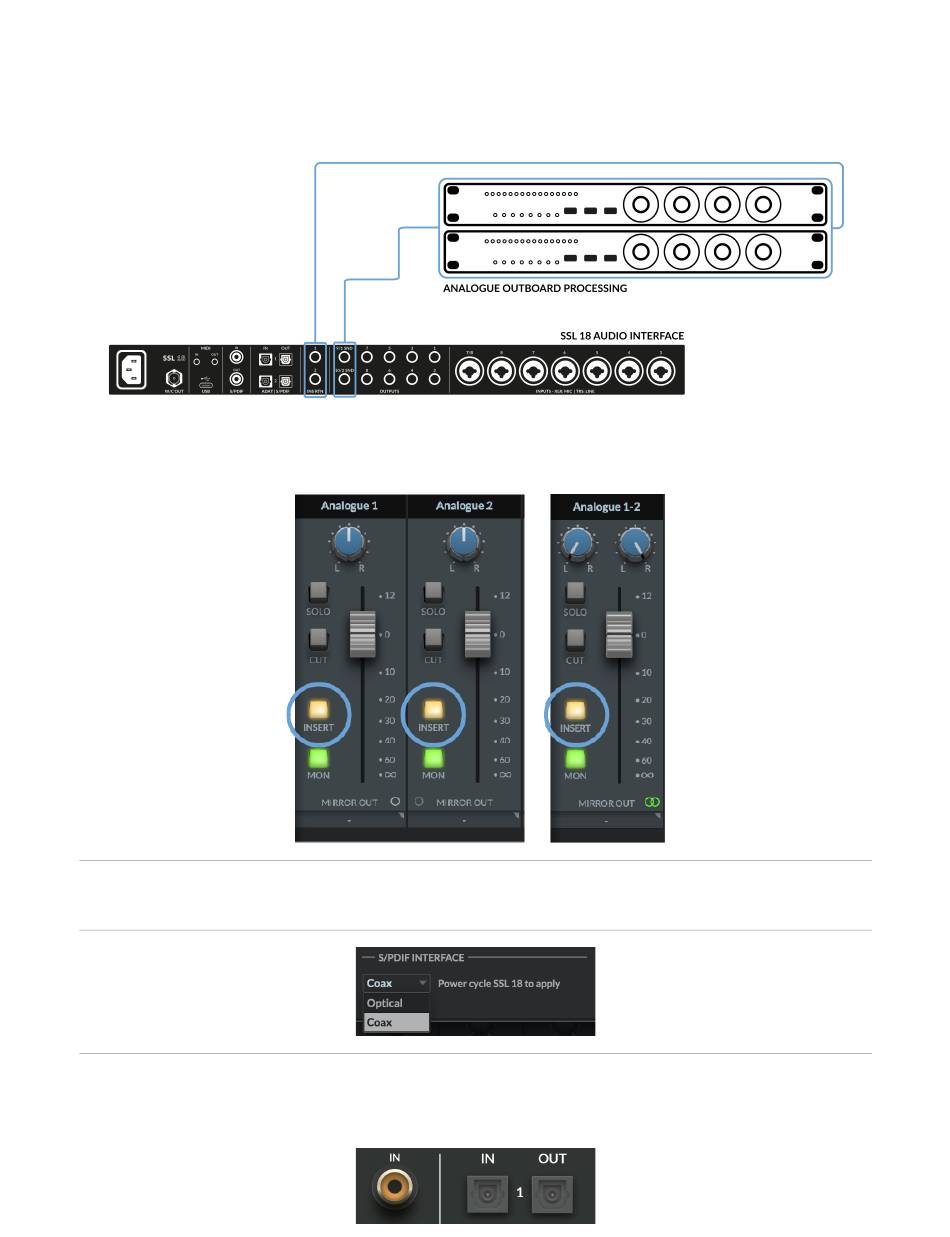

When enabled, an INSERT button will become available on Analogue channels 1/2 in the SSL 18 Mixer as highlighted in blue below:
Tip: Alternatively, INSERT RTN 1 & 2 inputs can be used as way of injecting a line-level signal directly into the A/D.
S/PIDIF INTERFACE
The drop down menu will allow you to select the S/PDIF Interface input between Optical & Coax connection available on the rear of
the SSL 18. Power cycle the SSL 18 to apply any changes.
If choosing 'Optical', optical IN and OUT ports '2' should be connected to your S/PDIF device.
