Solid State Logic SSL 18 User Manual page 13

Combo XLR / 1/4" Jack Input Sockets.
The 6 rear combo jacks accept Mic-level inputs (on XLR) and Line-level inputs (on TRS).
The pair of combo XLR/Jack inputs accepts Mic level (XLR) or Line-Level (TRS). Mic/Line switching can be done from the front panel
or via the SSL 18 Mixer software in SSL 360°.
SSL 360°
Overview & Home Page
SSL 18 is configured via the SSL 18 page in SSL 360°. SSL 360° is a cross-platform Mac and Windows application that also manages
other SSL 360°-enabled products.

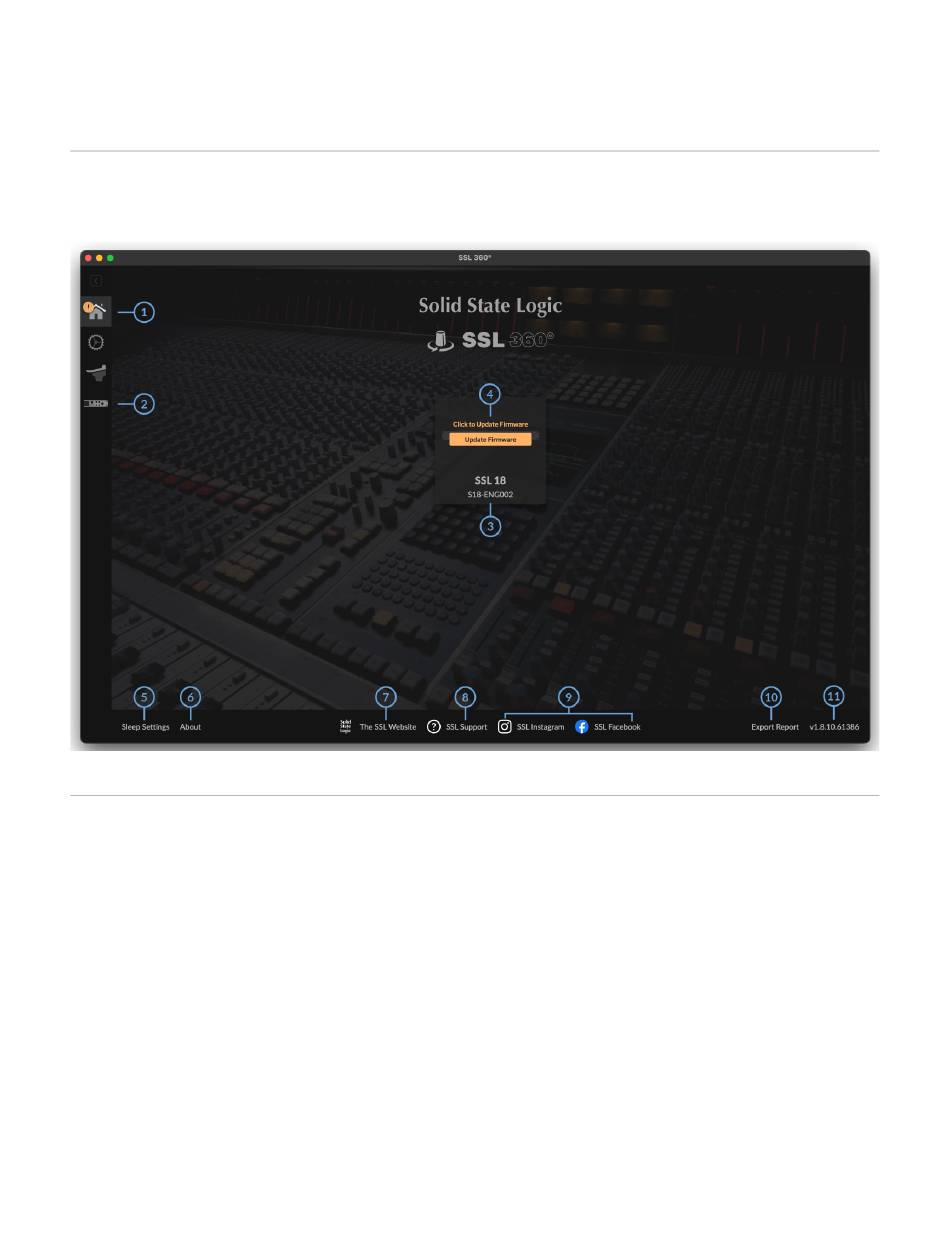

The Home Screen
1. Menu Toolbar
This toolbar allows you to navigate through the various pages of SSL 360°.
2. SSL 18 Mixer
This tab opens the SSL 18 Interface Mixer; allowing for routing, input channel & playback management, monitor controls & settings for
the SSL 18 interface within your system. More information on the SSL 18 360° Mixer is detailed in the next chapter.
3. Connected Units
This area shows if you have SSL 360° hardware (SSL 18, SSL 12, UF8, UF1 & UC1) connected to your computer, along with its serial
number. Please allow 10-15 seconds for units to be discovered once they are plugged in.
4. Firmware Updates Area
If a firmware update becomes available for your SSL 18 unit, then an Update Firmware button will appear below each unit. Click on the
button to start the firmware update process, being sure to not disconnect the power or USB cable whilst it is in progress.
5. Sleep Settings (applies only to UF8, UF1 and UC1, not SSL 18)
Clicking this will open a pop-up window that allows you to determine the length of time before your connected 360° control surfaces go
into Sleep mode.
6. About
