Basta Boatlifts OVER-CENTER HYDRAULIC ALUMINUM LIFT Manual

4,500 lb capacity boat lift for model 4.5k pontoon / tritoon
Hide thumbs

Advertisement

Table of Contents

OV E R - CE NTER H Y DR AU LIC A LUMIN UM LI F T
COPYRIGHT 2024
BASTA BOATLIFTS
BA S TA B OATLIF T S

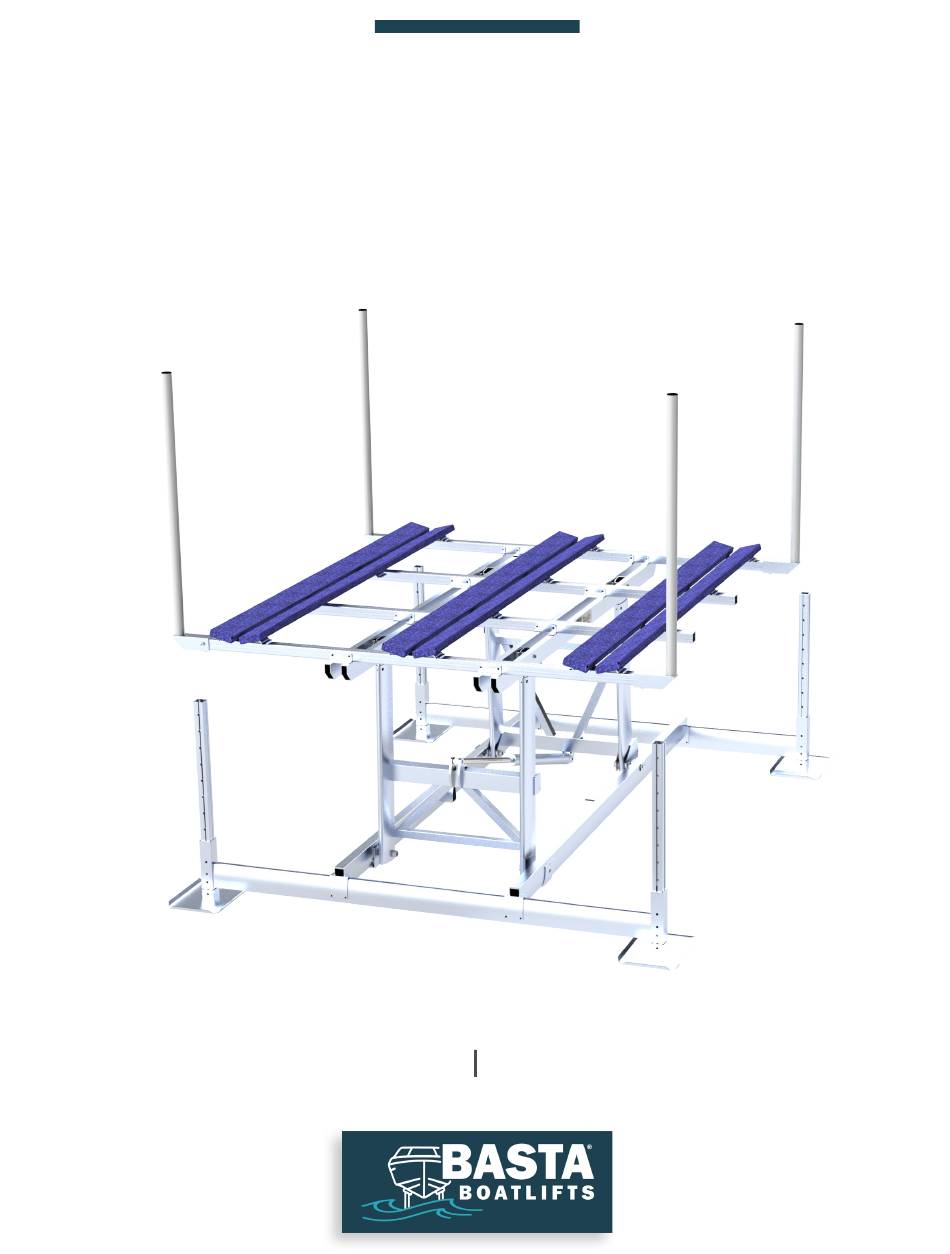

4,500 lb Capacity Boat Lift
Model 4.5k Pontoon / Tritoon
866-GoBasta
GoBasta.com
06/24
L392-0125A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OVER-CENTER HYDRAULIC ALUMINUM LIFT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Basta Boatlifts OVER-CENTER HYDRAULIC ALUMINUM LIFT

Summary of Contents for Basta Boatlifts OVER-CENTER HYDRAULIC ALUMINUM LIFT

  • Page 1 BA S TA B OATLIF T S OV E R - CE NTER H Y DR AU LIC A LUMIN UM LI F T 4,500 lb Capacity Boat Lift Model 4.5k Pontoon / Tritoon 866-GoBasta GoBasta.com 06/24 COPYRIGHT 2024 BASTA BOATLIFTS L392-0125A...
  • Page 3 In the case of injury, seek medical attention immediately. CAUTION • Do not install the lift alone. • Passengers should stand clear of the lift when the lift is in operation. Basta Boatlifts are protected by one or more US Patents www.gobasta.com/patents PAGE 2...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY ..................PRODUCT INFORMATION & WARRANTY......... PARTS LIST AND DIAGRAMS ............P 4-6 ASSEMBLY INSTRUCTIONS ............P 7-15 PLACEMENT & LEVELING ............P 16-18 OPERATIONAL INSTRUCTIONS ............P 19 REMOTE CONTROL FOB INFORMATION .......... P 20 TROUBLESHOOTING / FAQ ............
  • Page 5 PARTS LIST - BOAT LIFT Symbol Glossary for the following pages: indicates an illustration for a procedure. Tools needed for the job: indicates a major/minor part described in the • 9/16 socket • Tape measure • 1-1/8 socket • Level parts list on pages 4.
  • Page 6 PARTS LIST - BOAT LIFT DESCRIPTION QTY. ITEM PART NO. QTY. ITEM PART NO. DESCRIPTION Var. Leg (Varible Lengths) W117-0001 Foot Weldment W102-0037 H-Frame Weldment, Fwd (Part of EE) W111-0016 Base Crossmember Weldment W102-0038 H-Frame Weldment, Aft (Part of FF) W105-0023 Side Rail Weldment, Left A422-1010...
  • Page 7 PARTS LIST - BOAT LIFT Use a small amount of Do not fully tighten any anti-seize on bolt hardware until step 12. threads throughout the assembly process. X4-6 X8-12 X8-12 PAGE 6...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Phase 1: Steps 1-2 Use a small amount of anti-seize on bolt threads throughout the assembly process. Do not fully tighten any hardware until step 12. Feet & Legs ITEM DESCRIPTION QTY. Leg (Variable Lengths) Foot Weldment Bolt, Hex Head 1/2 X 1.0 SS NOTE: The 3 different holes shown can be Bolt, Hex Head 3/8 X 3.75 SS used for pin...
  • Page 9 ASSEMBLY INSTRUCTIONS Crossmembers & Side Rails ITEM DESCRIPTION QTY. Base Crossmember Weldment Side Rail Weldment, Left Side Rail Weldment, Right Bolt, Hex Head 3/8 X 3.75 SS Washer, Flat 3/8 SS Nut, 3/8 - 16 Nylock SS Assemble lift on level ground and adjust legs so that lift base frame is level during lift...
  • Page 10 ASSEMBLY INSTRUCTIONS H-FRAMES ITEM DESCRIPTION QTY. H-Frame Assembly, FWD H-Frame Assembly, AFT Bolt, Hex Head 3/8 X 3.75 SS Washer, Flat 3/8 SS Nut, 3/8 - 16 Nylock Cotter Pin 3/16 X 2.0 SS Base Pivot Pin Weldment Bushings are pre-installed - remove cable ties used for shipping.
  • Page 11 ASSEMBLY INSTRUCTIONS Phase 3: Step 5-6 Use a small amount of anti-seize on bolt threads throughout the assembly process. Do not fully tighten any hardware until step 12. Inner Arms (Forward & Aft) ITEM DESCRIPTION QTY. Inner Arm weldment, Fwd Inner Arm weldment, Aft Extension Pin, Captive Bolt, Hex Head 1/4 X 1-3/4 FT SS...
  • Page 12 ASSEMBLY INSTRUCTIONS Bunk Rails ITEM DESCRIPTION QTY. Bunk Tube Assembly, W/Logo Plaque Bunk Tube Assembly Bunk Pin, Captive Bolt, Hex Head 1/4 X 1-3/4 FT SS Washer, Lock 1/4 SS Phase 3: Step 7-8 Use a small amount of anti-seize on bolt threads through the assembly process.
  • Page 13 ASSEMBLY INSTRUCTIONS Cross Members (Forward & Aft) ITEM DESCRIPTION QTY. Cross Member Bolt, Hex Head 3/8 X 3.75 SS Washer, Flat 3/8 SS Nut, 3/8 - 16 Nylock Cross Members (Middle X2) ITEM DESCRIPTION QTY. Cross Member Bolt, Hex Head 3/8 X 3.75 SS Washer, Flat 3/8 SS Nut, 3/8 - 16 Nylock PAGE 12...
  • Page 14 ASSEMBLY INSTRUCTIONS Phase 4: Step 9-12 Use a small amount of anti-seize on bolt threads through the assembly process. *Power Package 9+11 Bunk Rail Assembly ITEM DESCRIPTION QTY. Bunk Board Bunk Bracket 8-12 Washer, Flat 5/16 SS 16-24 Washer, Lock 5/16 SS 16-24 Nut, 5/16 - 18 SS 16-24...
  • Page 15 CONNECT POWER UNIT Complete Power Unit Package FEMALE QUICK COUPLER NEGATIVE BATTERY CABLE (BLACK) ON/OFF SWITCH UP/DOWN SWITCH BREATHER CAP HOSE ASSEMBLY POSITIVE BATTERY CABLE (RED) MALE QUICK COUPLER IMPORTANT ONLY ADD FLUID WITH LIFT IN DOWN POSITION Hydraulic fluid shown with lift in the DOWN position Step 1 : Slide the Hydraulic Hose Assembly through the access hole in the side of...
  • Page 16 ASSEMBLY INSTRUCTIONS Bunk Installation ITEM DESCRIPTION QTY. Bolt, Hex Head 3/8 X 3.75 SS 8-12 Washer, Flat 3/8 SS 16-24 Nut, 3/8 - 16 Nylock SS 8-12 Centering Guides ITEM DESCRIPTION QTY. CD Weldment CD Weldment, Mirrored CD Buffer Tube Buffer Tube Cap Leg, Cross Member Cap Bolt, Hex Head 1/2-13 X 1 SS...

  • Page 17: Placement & Leveling

    Placement & Leveling Instructions Test lift on dry ground for leaks, remote control function and correct operation before moving into water. Tighten all hardware. Lower the lift completely, then raise it 1 inch. Disconnect the Hydraulic Hose Quick Couplers in the Power Unit box to separate it from the lift. Move the lift to final destination.
  • Page 18 IMPORTANT: The leveling process must be completed to ensure stability of the lift frame and Over-Center safety lock. Level the lift following these instructions while referencing image below: Step 1: Use a tape measure (reference image on right) to determine that the lower frame is level.
  • Page 19 Re-connect the Hydraulic Hose Quick Couplers inside the Power Unit box. Fully raise lift and finish adjusting the legs so that the base frame is level side-to-side and forward-to-aft. After the lift is assembled and installed, all fasteners should be checked for proper tightness and reinspected periodically.

  • Page 20: Operational Instructions

    • Service your lift according to recommended Maintenance (page 22). • Only use Basta Boatlifts approved fluid in lift. Contact Basta Boatlifts or authorized dealer for approved biodegradable hydraulic fluid. • When not in use, store the lift in the upright position to prevent it from being an unknown hazard underwater.

  • Page 21: Remote Control Fob Information

    REMOTE CONTROL FOB INFORMATION FOB POWER-UP TROUBLESHOOTING After turning on the ON/OFF switch in the dock box, Check Lift Battery - If fob worked previously, but the fob receiver requires a 5 second delay before does not currently, this may be because the lift the fob is enabled.

  • Page 22: Troubleshooting / Faq

    Polarity is marked on the battery contact Basta Boatlifts or your Authorized Dealer for holder. solutions for your scenario. A: Verify that the lift battery is charged Q : HOW DO I KNOW WHEN IT IS TIME TO and connections are tight.

  • Page 23: Maintenance

    EVERY 3-5 YEARS : Monthly (more frequently in necessary) Wipe the solar panel with a clean, damp cloth to Flush hydraulic fluid. Visit the Basta Boatlifts maintain its charging performance. service page for detailed instructions on how to perform a fluid flush. https:// bastaboatlifts.com/support/.

  • Page 24: Maintenance Log

    MAINTENANCE LOG DATE: WHAT WAS DONE: DATE: WHAT WAS DONE: PAGE 23...
