Basta Boatlifts 4.5k37 Manual

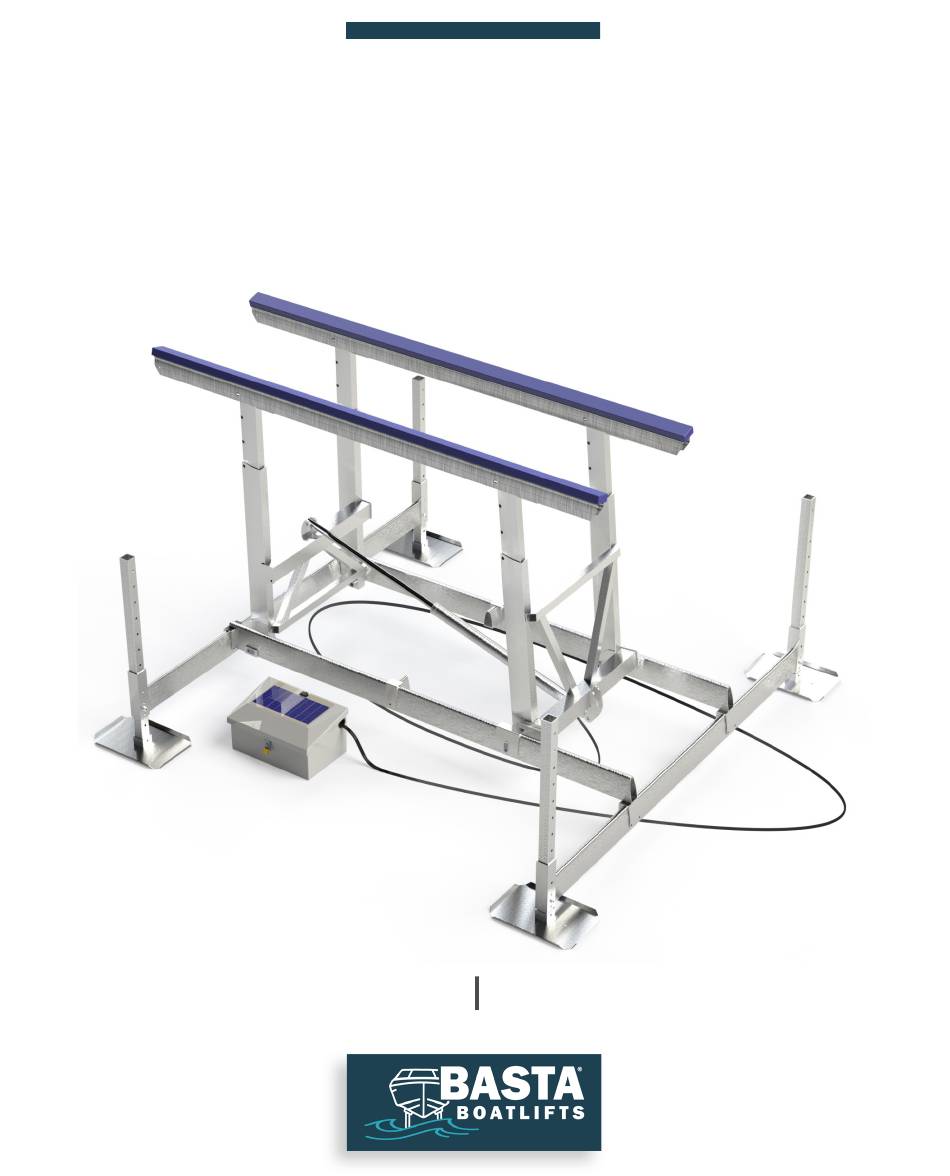

Over-center hydraulic aluminum lift
Hide thumbs Also See for 4.5k37:

Advertisement

Quick Links

Download this manual
OVER - CE NTE R H YDR AUL IC A LUMIN UM L IF T
COPYRIGHT 2022
BASTA INC.
BA S TA BOATL IF T S
4,500 lb Capacity Boat Lift
Models 4.5k
866-GoBasta
4.5k
37 /
53
GoBasta.com
3/22
L392-0088C

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4.5k37 and is the answer not in the manual?

Questions and answers

Related Manuals for Basta Boatlifts 4.5k37

Summary of Contents for Basta Boatlifts 4.5k37

  • Page 1 BA S TA BOATL IF T S OVER - CE NTE R H YDR AUL IC A LUMIN UM L IF T 4,500 lb Capacity Boat Lift Models 4.5k 4.5k 37 / 866-GoBasta GoBasta.com COPYRIGHT 2022 3/22 BASTA INC. L392-0088C...

  • Page 2: Safety

    • Do not install the lift alone. • The lift should only be used for lifting boats & watercraft. • Passengers should stand clear of the lift when the lift is in operation. Basta Boatlifts are protected by one or more US Patents www.gobasta.com/patents PAGE 2...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................P 2 PARTS LIST AND DIAGRAMS ..............P 4-5 ASSEMBLY INSTRUCTIONS ..............P 6-18 OPERATIONAL INSTRUCTIONS ............... P 19 REMOTE CONTROL FOB INFORMATION ........... P 20 TROUBLESHOOTING / FAQ ..............P 21 MAINTENANCE ..................P 22 WARRANTY ..................

  • Page 4: Parts List And Diagrams

    PARTS LIST - BOAT LIFT ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. K200-0001 W102-0046 Inner Arm Weldment W117-0001 Foot Pad A427-0017 Bunk Rail Assembly, Left W105-0010 Side Rail A427-0018 Bunk Rail Assembly, Right W114-0013 W111-0016 Base Crossmember Bunk Rail Weldment, Left (part of MM) A431-0044 H-frame, Forward...
  • Page 5 ITEM PART NO. DESCRIPTION QTY. R812-0011 Remote Control Master Unit R283-0002 Solar Controller R310-0001 On/Off Switch Up/Down Switch R310-0002 Solar Panel Assembly R281-0004 Enclosure C243-0003 13&14 13&14 13&14 13&14 POWER PACKAGE #H653-0018 1&2 1&2 6&2 6&2 6&2 1&2 1&2 1&2 1&2 6&2 1&2...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Pictured : Steps 1-3 Use a small amount of ‘moly’ lube on bolt threads through the assembly process. Do not tighten any hardware until step 12. Do not tighten bolt ‘15’ until step 16. 3/8 x 3.75” bolts (“6”) QTY 4 : 3/8 nylon insert lock nuts (“1”) QTY 4 :...
  • Page 7 Forward Crossmember QTY 4 : 3/8 x 3.75” bolts (“6”) QTY 8 : 3/8 flat washers (“2”) QTY 4 : 3/8 nylon insert lock nuts (“1”) Assemble lift on level ground and adjust legs so that lift base frame is level during lift assembly.
  • Page 8 ASSEMBLY INSTRUCTIONS Pictured : Steps 4-6 Use a small amount of ‘moly’ lube on bolt threads through the assembly process. Stop Blocks QTY 2 : 3/8 nylon insert lock nuts (“1”) QTY 4 : 3/8 flat washers (“2”) QTY 2 : 3/8 x4 bolts (“6”) PAGE 8...
  • Page 9 H-frame Bushings (fwd & aft) Bushings are pre- installed - remove cable ties used for shipping. Forward H-frame is shown. Aft H-frame installation is the same. QTY 8 : plastic bushings (“KK”) H-frame Bushings (fwd & aft) QTY 4 : 3/8 nylon insert lock nuts (“1”) QTY 4 : 3/8 flat washers (“2”) QTY 4 : 3/8 x 3.75 bolts (“6”) QTY 4 : cotter pins (“11”)
  • Page 10 ASSEMBLY INSTRUCTIONS Pictured : Steps 7-9 Use a small amount of ‘moly’ lube on bolt threads through the assembly process. Install cylinders with lift in ‘down’ position. Cylinder QTY 2 : 3/4 x 3.5” clevis pin (“3”) QTY 2 : 3/4 ring type cotter pin (“7”) QTY 2 : 3/4 nylon flat washers (“5”) PAGE 10...
  • Page 11 ASSEMBLY INSTRUCTIONS Pictured : Step 8 * Model 4.5k only extension pins (“16”) QTY 4 : 1/4 x 1.75” bolt (“13”) QTY 4 : Inner Arms 1/4 lock washer (“14”) QTY 4 : 13+14 IMPORTANT Install cylinder with hose fittings facing down! * Model 4.5k only PAGE 11...
  • Page 12 ASSEMBLY INSTRUCTIONS Pictured : Step 9 Model 4.5k only: Remove black bunk bushings and replace with shorter white bush- ings before proceeding with this step. Bunk Rail Assembly bunk pivot pins (“10”) QTY 4 : The angles and directions of bunk rail assemblies MUST face the direc-...
  • Page 13 CONNECT POWER UNIT Complete Power Unit Package FEMALE QUICK COUPLER NEGATIVE BATTERY CABLE (BLACK) ON/OFF SWITCH UP/DOWN BREATHER CAP SWITCH HOSE ASSEMBLY POSITIVE BATTERY CABLE (RED) MALE QUICK COUPLER Step 1 : Slide the Hydraulic Hose Assembly through the access hole in the side of the fiberglass enclosure and IMPORTANT attach the ends to their corresponding Quick Couplers.
  • Page 14 ASSEMBLY INSTRUCTIONS Pictured : Step 11 Use a small amount of ‘moly’ lube on bolt threads through the assembly process. Raise lift to install 1/4 x 1.75” bolts (“17”) . 4 : 1/4 x 1.75” bolts (“15”) 4 : 1/4 lock washers (“16”) Bunk Rail Assembly 15+16 15+16...
  • Page 15 PLACEMENT INSTRUCTIONS Test lift on dry ground for leaks, remote control function and correct operation before moving into water. Tighten all hardware. Lower the lift completely, then raise it slightly. Disconnect the Hydraulic Hose Quick Couplers in the Power Unit box to separate it from the lift. Move the lift to final destination.
  • Page 16 USE THIS DIAGRAM TO HELP PLACE THE 4.5k LIFT PAGE 16...
  • Page 17 IMPORTANT: The leveling process must be completed to ensure stability of the lift frame and Over-Center safety lock. Level the lift following these instructions while referencing image below: Step 1: Use a tape measure (reference image on right) to determine that the lower frame is level.
  • Page 18 Re-connect the Hydraulic Hose Quick Couplers inside the Power Unit box. Fully raise lift and finish adjusting the legs so that the base frame is level side-to-side and forward-to-aft. After the lift is assembled and installed, all fasteners should be checked for proper tightness and reinspected periodically.

  • Page 19: Operational Instructions

    • Service your lift according to recommended Maintenance (page 19). • Only use Basta Boatlifts approved fluid in lift. Contact Basta Boatlifts or authorized dealer for approved biodegradable hydraulic fluid. • When not in use, store the lift in the upright position to prevent it from being an unknown hazard underwater.

  • Page 20: Remote Control Fob Information

    1. Turn off the ON/OFF switch. 2. Wait 20 seconds. in use. If you have questions, contact your local dealer or Basta Boatlifts. 3. Turn power back on, and within 5 seconds of power on, press both the UP and DOWN buttons...

  • Page 21: Troubleshooting / Faq

    CHANGE THE FLUID? necessary. A: Check the battery connections, clean and A: Basta Boatlifts’ hydraulic fluid lasts between 3-6 years re-secure if necessary. depending on usage. If you begin to hear an increased pitch in the sound of your pump motor, it is likely time to flush your Q : THE PUMP RUNS, BUT THE LIFT hydraulic fluid.

  • Page 22: Maintenance

    ONLY ADD FLUID WITH LIFT IN support/. DOWN POSITION Hydraulic fluid shown with lift Annual factory approved service is available. in the DOWN position Contact your local dealer or Basta Boatlifts for additional information. 1” inch PAGE 22...
  • Page 23 MAINTENANCE LOG DATE : WHAT WAS DONE : PAGE 23...

  • Page 24: Warranty

    Company’s Authorized dealer for a period of 3 years from Warranty Start Date, provided there is an active Authorized Dealer within 50 miles of the location of the Basta Inc. dba Basta Boatlifts (“Company”) warrants its Products (purchased Product. Labor will not be provided for direct purchases from Company or when an after November 1, 2021) for non-commercial use for a period of, active Authorized Dealer is not located within 50 miles of the location of the Product.

This manual is also suitable for:

4.5k53
