Basta Boatlifts Over-Center 10k53 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

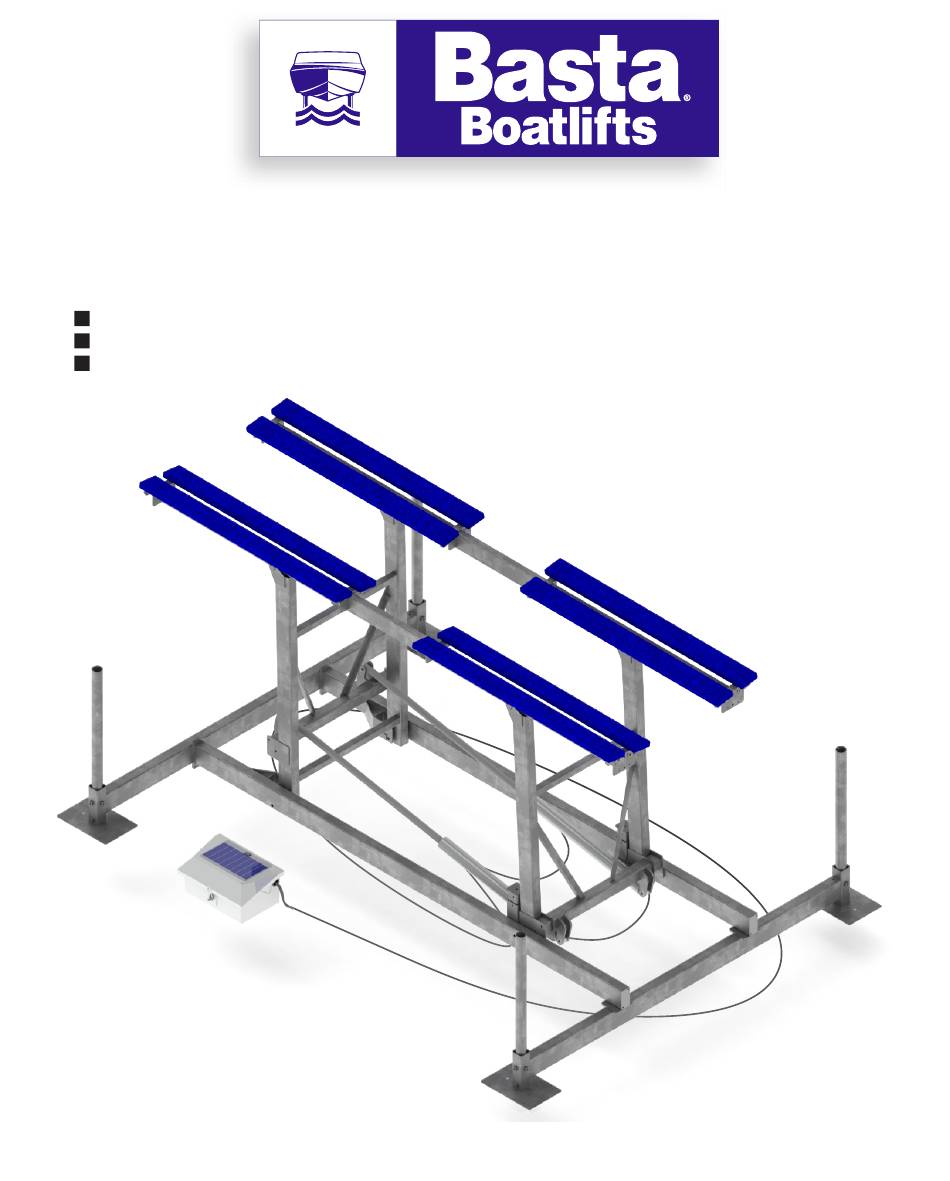

Over-Center
10,000 lbs Capacity
ASSEMBLY
INSTALLATION
REPLACEMENT PARTS
866-GO-BASTA
www.gobasta.com
Basta, Inc. Bellevue WA 98005 USA
tm
Hydraulic Steel Lift
Models 10k
READ complete manual CAREFULLY
BEFORE attempting assembly or operation
& 10k
53
65
©
Copyright 2021 Basta, Inc.
10k
- 10k
53
65
04/21
L392-0104D
