Over-Center
18,000 lbs Capacity
ASSEMBLY
INSTALLATION
REPLACEMENT PARTS
866-GO-BASTA
www.gobasta.com
Basta Marine, Inc. Bellevue WA 98005 USA
tm
Hydraulic Steel Lift
Models # 18k
READ complete manual CAREFULLY
BEFORE attempting assembly or operation
&18k
59
©
Copyright 2015 Basta Marine
18k
/
59
71
71
11/21
L392-0067, REV D
Advertisement
Related Manuals for Basta Boatlifts Over-Center 18k59
Summary of Contents for Basta Boatlifts Over-Center 18k59

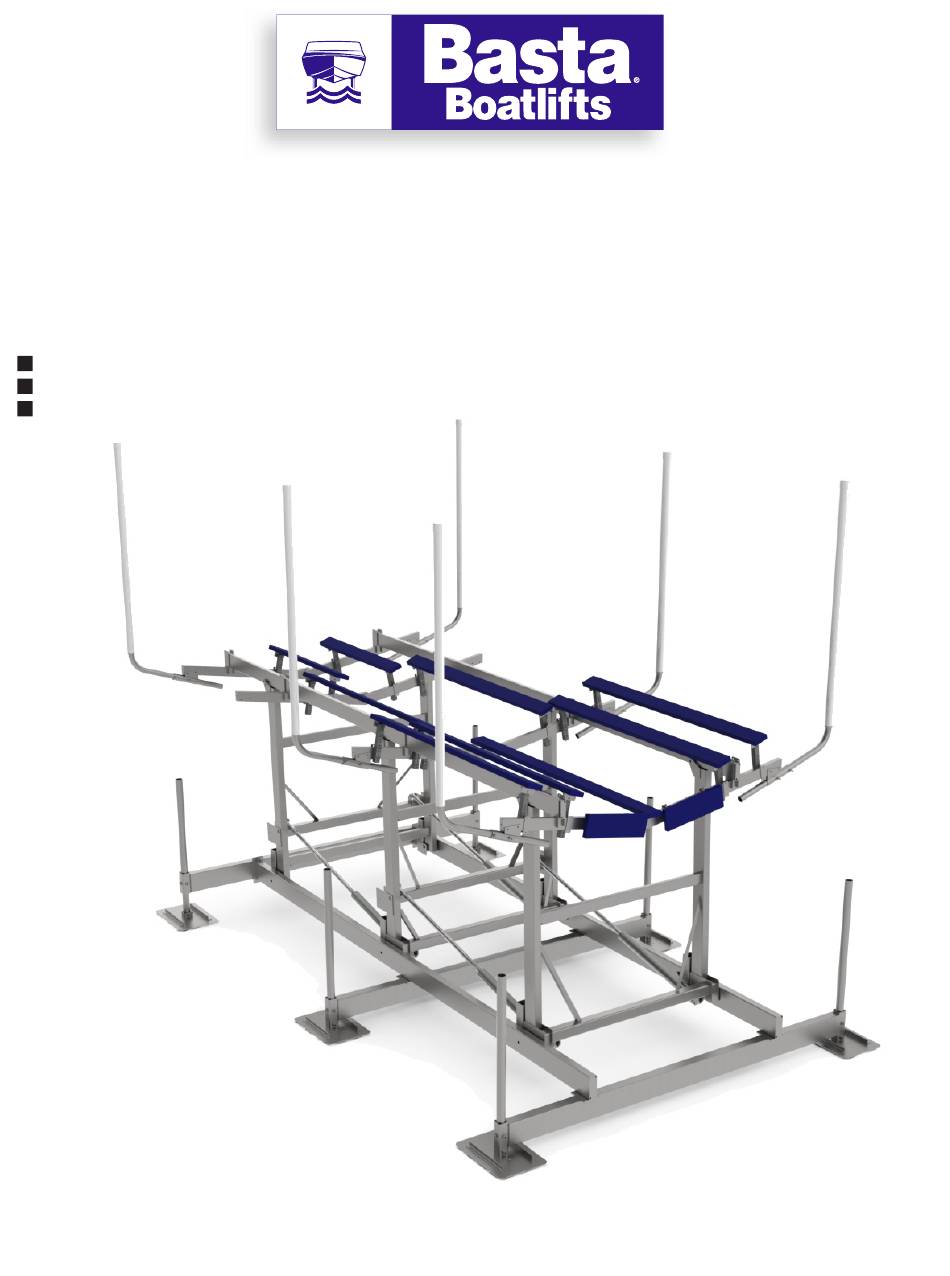

- Page 1 Over-Center Hydraulic Steel Lift 18,000 lbs Capacity Models # 18k &18k ASSEMBLY READ complete manual CAREFULLY INSTALLATION BEFORE attempting assembly or operation REPLACEMENT PARTS 866-GO-BASTA www.gobasta.com 11/21 Basta Marine, Inc. Bellevue WA 98005 USA © L392-0067, REV D Copyright 2015 Basta Marine...
- Page 2 INDEX Warning ..……………………................Page 2 Parts Assembly Diagram ................Page 3 Assembly Instructions .................Pages 4 - 12 First Use / Adjustments ..……………............Page 13 Basta Marine Boat Lift Accessories ..…………………..…………..…...Page 16 Troubleshooting / FAQ .…................Page 14 Warranty ......…................Page 15 WARNING NOTE: Your boat lift is a very heavy piece of equipment. Improper use could result in serious injury or death.
- Page 3 INSPECT the lift monthly Before Using: for frayed hoses, loose Read this manual fasteners and corrosion completely! lift unattended OIL INJECTED INTO THE SKIN FROM HIGH PRESSURE LEAKS IN HYDRAULIC SYSTEMS CAN CAUSE SEVERE INJURY. MOST DAMAGE OCCURS DURING THE FIRST FEW HOURS.
- Page 4 MODEL 18k MODEL 18k ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION W110-0007 base crossmember weldment, forward W110-0007 base crossmember weldment, forward W110-0008 base crossmember weldment, aft W110-0008 base crossmember weldment, aft W104-0022 side rail weldment, left W104-0022 side rail weldment, left W104-0023 side rail weldment, right W104-0023...
- Page 5 ITEM PART # DESCRIPTION S103-0807 5/8” x 1-1/2” hex head set screw, SS S103-0707 1/2” x 1-1/2” hex head cap screw, SS S313-0010 1/2” flat washer, SS S362-0010 1/2” nylon insert lock nut, SS S103-1020 1” x 9” hex head cap screw, SS S313-4015 1”...
- Page 6 ASSEMBLY INSTRUCTIONS ? parts identified on page 4 tighten leg set screws alternately to push the leg securely into the corner of the leg socket 1 or 2 step HARDWARE apply a small amount of grease to bolt threads page 6 ? parts identified on page 4...
- Page 7 3 or 4 step HARDWARE apply a small amount of grease to bolt threads ? parts identified on page 4 do not tighten these bolts do not tighten these bolts completely until the H-frames completely until the H-frames and bunks have been and bunks have been installed &...
- Page 8 ASSEMBLY INSTRUCTIONS remove the plastic ties that secure the bushings before installing the H-frame REMOVE FORWARD CENTER step HARDWARE apply a small amount of grease to bolt threads page 8 ? parts identified on page 4...
- Page 9 REMOVE FORWARD CENTER step HARDWARE apply a small amount of grease to bolt threads ? parts identified on page 4 remove the plastic ties remove the plastic ties that secure the bushings that secure the bushings before installing the H-frame before installing the H-frame REMOVE FORWARD...
- Page 10 ASSEMBLY INSTRUCTIONS tighten these nuts only “finger tight” until the cylinders are installed S H O R T E step HARDWARE apply a small amount of grease to bolt threads page 10 ? parts identified on page 4...
- Page 11 step HARDWARE ? parts identified NOTICE on page 4 install the clevis pins tighten the bunk rail nuts and “E2” with their heads crossmember bolts after toward the inside of the lift all the cylinders are installed step HARDWARE page 11 ? parts identified on page 4...
- Page 12 at each bunk board leave bolts loose until bunk boards are installed approximate starting locations 129cm 234cm 234cm 50¾” 92” 92” step HARDWARE apply a small amount of grease to bolt threads page 12 ? parts identified on page 4...
- Page 13 step HARDWARE apply a small amount of grease to bolt threads ? parts identified NOTICE on page 4 the bunks may have to be adjusted remember to tighten all the several times for the best fit - bolts installed in Step 10 WITHOUT BOAT ON LIFT! step HARDWARE...
- Page 14 From From To Pump From Solar Panels Solar Panels Solar Panels To UP-DN Switch Battery Battery Group 31 Group 31 marine marine deep cycle deep cycle 1. The Hydraulic Pump will arrive fully assembled. Make s u re all the connections are snug to prevent leaks or loss of power to the unit.
- Page 15 Prevent unauthorized use - CONTROL PANEL # R285-1004 KEEP BOX LOCKED GROUP 31 DEEP ASSEMBLY DISCHARGE R815-0002 BATTERY NOTE: battery Padlock can not be pre-wired not included shipped with wiring harness NOTE: pump appearance may vary PUMP ASSEMBLY POWER UNIT H602-0007 SUB-ASSEMBLY H603-0008...
- Page 16 position as desired position as desired position as desired position as desired up to four centering devices per side can be installed quantities shown are for three pairs of centering devices step HARDWARE apply a small amount of grease to bolt threads page 16 ? parts identified on page 4...
- Page 17 quantities shown are for three pairs of centering devices step HARDWARE apply a small amount of grease to bolt threads ? parts identified on page 4 remember to tighten note how bunk chevron all the bolts installed fits between forward and in Step 10 aft bunk board stanchions step...
- Page 18 FIRST USE AND ADJUSTMENTS First test lift on dry ground for oil leaks, remote control function and correct operation. IMPORTANT: After installation, the legs MUST be adjusted so that the lift frame is level. Lift must move into Over-Center position when fully raised. 592cm 612cm 104”...
- Page 19 MAINTENANCE Occasionally wipe the solar panel with a clean, damp cloth to preserve its charging performance. WARNING After the lift is assembled and installed, all fasteners should be checked for proper tightness and reinspected periodically. NOTICE INSPECT THE LIFT PERIODICALLY Once a month: Inspect the hoses, cylinders and fittings for leaks and wear.
- Page 20 From Solar Panels 1.This lift uses two 12V Group 31 marine deep-cycle batteries. When looking Pump Motor for a replacement, note that the figure for Reserve Capacity is the most important feature. Heavier batteries usually have more reserve capacity. 2.The batteries should not be allowed to remain in a substantially discharged Motor BROWN Relay...
- Page 21 TROUBLESHOOTING PROBLEMS AND FAQ Q: HOW DO I PREPARE MY LIFT FOR THE WINTER? Q: THE PUMP DOESN’T RUN A: Turn the POWER switch off, but leave the battery A: Check the battery charge, recharge if necessary. connected so that the solar panel will charge it. A: Check the battery connections, clean and re- Make sure the power unit is not located where it secure if necessary.
- Page 22 Your boat lift is a piece of heavy power equipment that lifts a load that weighs thousands of pounds. Failure to comply with the following rules may result in severe injury, death or property damage. 1. Be alert and aware at all times. Do not operate while under the influence of drugs or alcohol. 2.
- Page 23 Products. on the water. Welcome to the Basta Boatlifts family and Boat Happy! Labor for warranty work to be provided by the Company’s Authorized dealer for a period of 3 years from Warranty Start Date, provided there is an active Authorized Basta Inc.
- Page 24 ACCESSORIES FOR MOST BASTA BOATLIFTS For additional information and images visit our web site at www.gobasta.com or contact Basta Marine at 1-866-GOBASTA for a catalog. Centering Devices Power Unit Support Bracket These vertical reference guides Safely secure the power unit box...
