Verathon BLADDERSCAN BVI 9400 Operation & Maintenance Manual

Hide thumbs Also See for BLADDERSCAN BVI 9400:
Table of Contents

Advertisement

Quick Links

Download this manual

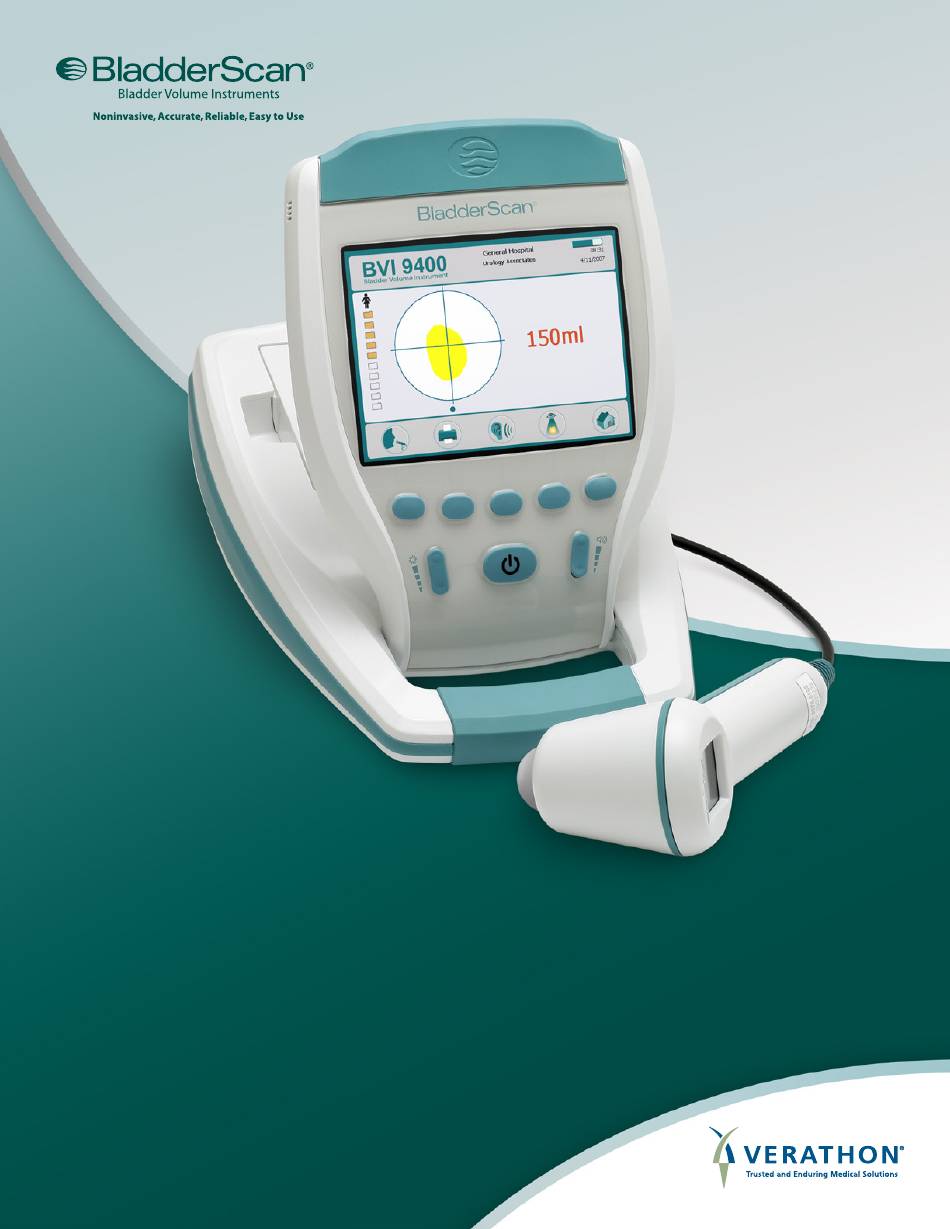

BLADDERSCAN
BVI 9400
OPERATIONS & MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLADDERSCAN BVI 9400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verathon BLADDERSCAN BVI 9400

Summary of Contents for Verathon BLADDERSCAN BVI 9400

  • Page 1 BLADDERSCAN BVI 9400 OPERATIONS & MAINTENANCE MANUAL...
  • Page 2 0900‑4412‑03‑60...
  • Page 3 BLADDERSCAN BVI 9400 OPERATIONS & MAINTENANCE MANUAL Effective: June 27, 2014 Caution: Federal (United States) law restricts this device to sale by or on the order of a physician.

  • Page 4: Contact Information

    Fax : +31 (0) 20 210 30 92 verathon.com Copyright 2009, 2014 Verathon Inc. All rights reserved. No part of this manual may be copied or transmitted by any method without the express written consent of Verathon Inc. Verathon, the Verathon torch symbol, BladderScan, the BladderScan symbol, ScanPoint, and NeuralHarmonics are trademarks or registered trademarks, and Total Reliability Plan is a service mark of Verathon Inc.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS IMPORTANT INFORMATION .............................. 1 OVERVIEW ..................................1 Product Description ............................... 1 Notice to All Users ................................. 2 Statement of Prescription ............................. 2 Statement of Intended Use ............................2 Essential Performance ..............................2 SAFETY INFORMATION ..............................2 Biological Safety ................................2 Contraindications ................................
  • Page 6 SETTING UP ..................................35 Procedure 1. Perform the Initial Inspection ......................35 Procedure 2. Set Up the Battery ...........................36 Procedure 3. Attach the Probe to the Console .....................38 Procedure 4. Program the Clinic Name ........................39 Procedure 5. Set the Date and Time ........................41 Procedure 6.
  • Page 7 TROUBLESHOOTING ...............................62 HELP RESOURCES ..............................62 DEVICE REPAIR ................................62 TROUBLESHOOTING PROCEDURES ........................63 Procedure 1. Troubleshoot ScanPoint Connection ....................63 Procedure 2. Troubleshoot Power Issues ......................64 Procedure 3. Instrument Too Hot ..........................64 Procedure 4. Clear a Paper Jam ..........................64 WARRANTY ..................................65 PRODUCT SPECIFICATIONS ............................66 COMPONENT SPECIFICATIONS ..........................66 Console &...

  • Page 9: Important Information

    The BladderScan BVI 9400 system also includes a battery charger for the custom, user‑replaceable lithium‑ion battery used in the system. The BladderScan BVI 9400 may be mounted on a cart, holding the instrument securely, and providing optional storage for ultrasound gel and other accessories.

  • Page 10: Notice To All Users

    The ultrasound output power of the BladderScan BVI 9400 is not user adjustable and is limited to the minimum level necessary for effective performance. Data on acoustic output levels can be found in the Product Specifications.

  • Page 11: Cautions & Warnings

    ® radio frequency range and may interfere with one another. If you are using the BladderScan BVI 9400 Bluetooth link and wireless LAN devices simultaneously, you may experience less‑than‑optimal network performance or even lose your network connection. If this happens, you may need to move the BladderScan and ScanPoint host computer to an area ®...
  • Page 12 The BladderScan BVI 9400 system should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the system should be observed to verify normal operation in the configuration in which it will be used.
  • Page 13 WARNINGS WARNING Risk of explosion. If you use the BladderScan BVI 9400 in the presence of flammable anesthetics, the hazard of potential explosion exists. WARNING Risk of electric shock or burns. Do not use the BladderScan instrument in conjunction with HF surgical equipment.
  • Page 14 The ultrasonic output of the BladderScan BVI 9400 is not user adjustable and is limited to the minimum level necessary for effective performance. For more information about the...
  • Page 15 WARNING Availability of cleaning and disinfection products varies by country, and Verathon is unable to test products in every market. For more information, please contact Verathon Customer Care at 1.800.331.2313 or your local representative. For additional contact information, visit verathon.com/contact‑us.

  • Page 16: Introduction

    • Familiarize yourself with the contents of this manual. • Watch the training video provided on the instrument. The BladderScan BVI 9400 has two main components: the console and the probe. The console and probe are linked by a detachable cable.

  • Page 17: Probe Components

    PROBE COMPONENTS The probe transmits and receives ultrasound waves, automatically moving its internal transducer 360º to scan twelve planes to produce a three‑dimensional image of the bladder. The probe is attached to the console by a cable. The probe has three main features: Figure 2.

  • Page 18: Console Components

    CONSOLE COMPONENTS The console provides all operating controls for the scanning process by means of five variable function buttons. The measured bladder volume and target‑shaped aiming icons are clearly displayed on the LCD screen. The console also provides controls for adjusting brightness and volume, turning the power on/off, interfacing with a ScanPoint host computer (optional), and adjusting user settings and preferences.

  • Page 19: Battery Charger/Wireless Hub Components

    BATTERY CHARGER/WIRELESS HUB COMPONENTS The BladderScan BVI 9400 is powered by a lithium‑ion battery. The battery charger provided with the BVI 9400 can charge two Li‑Ion batteries while simultaneously functioning as the wireless hub linking the BVI 9400 to the ScanPoint host computer.

  • Page 20: System Components & Accessories

    BVI 9400 probe Battery charger/wireless hub with AC power cord ACCESSORIES Lithium‑ion battery (2 provided) BladderScan BVI 9400 In‑Service CD, containing the operations & maintenance manual and a video tutorial Thermal paper roll for the printer Acoustic coupling gel Mobile cart (Optional)

  • Page 21: Icons & Buttons

    ICONS & BUTTONS The console LCD presents user information and prompts that vary depending on the current device function. The five buttons below the display have variable functions according to device mode. Button functions are indicated by icons in the display footer, immediately above each button. CONSOLE DISPLAY ICONS The following icons may appear on the console main display.

  • Page 22: Variable Button Functions

    VARIABLE BUTTON FUNCTIONS ICON PURPOSE Single button with three modes. When performing an exam, press the button repeatedly until the desired setting appears above the saved exams folders: • Select the “small child” icon to scan a patient less than 48 inches (122 cm) tall and weighing less than 60 lbs (27 kg).
  • Page 23 ICON PURPOSE Stop recording a voice annotation. Play video playback. Pause video playback. Add and/or toggle characters, as appropriate. Remove and/or toggle characters, as appropriate. No function. Operations & Maintenance Manual: Introduction...

  • Page 24: Button Functions For Each Display Screen

    BUTTON FUNCTIONS FOR EACH DISPLAY SCREEN The Power, Brightness, and Volume buttons are constant buttons on the body of the console and can be pressed at any time. The five buttons below the LCD have variable functions according to device mode. The Scan button is located on the underside of the probe.
  • Page 25 SCREEN/MODE ACTIVE BUTTONS (1) No function. (2) Play: plays selected video, changes to a pause button when video is playing. Video Viewing screen (3) Up Arrow: return to Tutorial screen. Plays the selected tutorial video. (4) No function. (5) Home: return to Home screen. (1) Down Arrow: select next setting in list.

  • Page 26: Display Screens

    • In the center panel, right side: A cost saving summary. Displays the savings to your organization due to using the BladderScan BVI 9400 rather than catheterization. The values used to calculate the savings are user‑variable and are entered from the Savings Preference screen.

  • Page 27: Scan Screen

    Table 6. Home Screen Button Functions BUTTON FUNCTION Single button with three modes. When performing an exam, press the button repeatedly until the desired setting appears above the saved exams folders: • Select the “small child” icon to scan a patient less than 48 inches (122 cm) tall and weighing less than 60 lbs (27 kg).

  • Page 28: Results Screen

    RESULTS SCREEN The Results screen appears automatically when an ultrasound scan is complete. The display presents the result of the exam: crosshairs, bladder outline, and the calculated bladder volume. You may choose to print this result to the onboard printer and/or to record a voice annotation to save the exam. After the annotation is recorded, the Play and Review buttons become active, and the newly recorded exam appears on the main display as an orange folder icon.

  • Page 29: Review Screen

    REVIEW SCREEN The Review screen opens when you select a saved exam (yellow folder icon) to review. The display shows the ultrasound images associated with the selected exam. A green open‑folder icon indicates which exam is being viewed. While reviewing saved exams, the buttons below the display allow you to print, replay, or delete exam data.

  • Page 30: Tutorial Screen

    TUTORIAL SCREEN To open the Tutorial screen, press the Tutorial button from the Home screen. The Tutorial screen presents a menu of training modules. Note: When this screen is open, the Scan button on the probe is disabled. Table 10. Tutorial Screen Button Functions BUTTON FUNCTION...

  • Page 31: Video Viewing Screen

    VIDEO VIEWING SCREEN The Video Viewing screen is activated by pushing the Enter button on the Tutorial screen. Press the Play button to begin the desired tutorial. Note: When this screen is open, the Scan button on the probe is disabled. Table 11.

  • Page 32: Settings Screen

    SETTINGS SCREEN To open the Settings screen, push the Settings button on the Home screen. The display presents a list of user‑configurable settings: Name, Time & Date, General Preferences, Savings Preferences, and Self Test. Note: When this screen is open, the scan button on the probe is disabled. Table 12.

  • Page 33: Name Screen

    NAME SCREEN This screen allows you to select the appropriate alpha numeric characters for entering your health care institution’s name. See the section Program the Clinic Name for more information on this setting. Table 13. Name Screen Button Functions BUTTON FUNCTION Move down in the grid.

  • Page 34: Date And Time Screen

    DATE AND TIME SCREEN This screen allows you to adjust the date and time. For more information, see the procedure Set the Date and Time on page 41. Note: If the time display is set to show a 24‑hour clock, the hour units are 0–23. If the clock is set to show a 12‑hour clock, the hour units are 1 AM–12 AM and 1 PM–12 PM.

  • Page 35: General Preferences Screen

    GENERAL PREFERENCES SCREEN This screen displays a list of available settings and their current values. Available settings: • Language: Multiple languages are available. English is the default setting. • Date Format: mm/dd/yyyy; dd.mm.yyyy; yyyy‑mm‑dd. • Time Format: 12‑hour or 24‑hour. •...
  • Page 36 Figure 5. B‑Mode and C‑Mode Print Reports Table 15. General Preferences Screen Button Functions BUTTON FUNCTION Move down a setting in the list. Move up a setting in the list. Select the next option. Press and hold to move through options more quickly. Select the previous option.

  • Page 37: Savings Preferences Screen

    SAVINGS PREFERENCES SCREEN Use this screen to enter base values used to calculate the savings to your organization from using the BladderScan BVI 9400 rather than catheterization. Preferences lists and options: • UTI Rate: 1% to 100% in increments of 1% •...

  • Page 38: Self Test Screen

    SCAN COUNTER FEATURE ON THE SELF TEST SCREEN The BladderScan BVI 9400 is equipped with a scan counter feature. It counts all Scan button pushes captured by the console. It is designed to enable clinical users or service technicians to determine the number of scans the device has performed over its lifetime.
  • Page 39 To ensure reliability, a backup copy of the scan count is stored in device memory. If both the scan counter and its backup copy are corrupted, the scan counter will automatically reset to a zero value. The scan counter feature is designed so that the value cannot be manually reset or modified by the clinical user or service partner.
  • Page 40 TROUBLESHOOTING The scan counter feature is designed for redundancy, so the scan value is stored in multiple locations in the instrument’s internal memory. If one of the storage locations fails, the text “EEPROM Failed” will be added to the DSP status line. In the event of an EEPROM failure, the counter will continue to work but will not have a backup copy stored in the instrument.

  • Page 41: Scanpoint Screen

    SCANPOINT SCREEN Note: This screen is only available if the optional ScanPoint software is installed on a PC. ® Press the ScanPoint button on the Home screen. The ScanPoint screen displays information about the status of the link between the BladderScan instrument and the ScanPoint host computer. Figure 8.

  • Page 42: Sleep Mode

    SLEEP MODE To conserve battery power, the BladderScan BVI 9400 goes into Sleep mode by shutting itself down automatically when not in use. After four minutes of idle time, a Sleep mode alert message displays for 15 seconds. While the message is displayed, press any button to keep the console awake and dismiss the message.

  • Page 43: Setting Up

    2. Remove the contents and verify that you have received the appropriate components for your system. 3. Inspect the components for damage. 4. If any of the components are missing or damaged, notify the carrier and Verathon Customer Care or your local representative.

  • Page 44: Procedure 2. Set Up The Battery

    BladderScan BVI 9400 for the first time, you need to charge both batteries. The BladderScan BVI 9400 draws very little power when it is turned off. However, if you do not plan to use the BladderScan instrument for several weeks, you should remove the battery to prevent it from discharging. When batteries are not in use, they should be stored in the battery charger so they remain fully charged.
  • Page 45 3. Check the colored indicator lights on the battery charger to determine battery status: Solid green: Battery fully charged. Amber: Battery charging. The battery status indicator remains in the top right corner of the screen and indicates the charge level of the battery.

  • Page 46: Procedure 3. Attach The Probe To The Console

    PROCEDURE 3. ATTACH THE PROBE TO THE CONSOLE 1. Locate the cable port on the back of the console. 2. Align the silver arrow on the probe cable connector to the top of the cable port. Arrow on cable connector 3.

  • Page 47: Procedure 4. Program The Clinic Name

    PROCEDURE 4. PROGRAM THE CLINIC NAME You can customize your BladderScan BVI 9400 by entering your facility’s name. This information will subsequently be included on BladderScan displays and all printouts of exam results. 1. Turn the BladderScan BVI 9400 on by pressing the Power button on the front of the console.
  • Page 48 4. On the Name screen, use the Right Arrow button and Down Arrow button to move to the desired character. When the desired character is highlighted in red, press the Plus button to add it to your text. Use the Minus button to delete characters.

  • Page 49: Procedure 5. Set The Date And Time

    PROCEDURE 5. SET THE DATE AND TIME 1. Turn on the device by pressing the Power button. 2. From the Home screen, press the Settings button to open the Settings screen. 3. On the Settings screen, push either the Up Arrow button or Down Arrow button until “Date &...

  • Page 50: Procedure 6. Load The Thermal Paper

    PROCEDURE 6. LOAD THE THERMAL PAPER If paper appears to be stuck in the printer, see the procedure Clear a Paper Jam on page 64. 1. Locate the paper compartment door on the base of the console, behind the display. 2.

  • Page 51: Procedure 7. Attach The Instrument To A Medical Cart (Optional)

    PROCEDURE 7. ATTACH THE INSTRUMENT TO A MEDICAL CART (OPTIONAL) The BladderScan BVI 9400 is completely portable and can be easily moved and positioned for convenient use. Installing the BVI 9400 on the optional mobile cart will allow you to move the BladderScan along with related accessories to the patient examining area or bedside, as desired.
  • Page 52 ASSEMBLE THE MEDICAL CART 1. Insert the five casters into the medical cart base, positioning the brake casters on opposite ends of the base. 2. Insert the post into the square relief on the underside of the medical tray. 3. Insert the four screws through the bracket on the top of the post into the molded inserts in the medical tray and tighten securely.

  • Page 53: Procedure 8. Install Scanpoint With Quickprint (Optional)

    • Available on the in‑service CD and on the Verathon Web site: verathon.com ® • Available for review anytime on the BladderScan BVI 9400 device by pushing the Tutorial button from the Home screen. Operations & Maintenance Manual: Setting Up...

  • Page 54: Using The Device

    USING THE DEVICE WARNING Risk of explosion. If you use the BladderScan BVI 9400 in the presence of flammable anesthetics, the hazard of potential explosion exists. WARNING Potential patient hazard. To date, exposure to low‑power, pulsed diagnostic ultrasound has not been shown to produce adverse effects.

  • Page 55: Procedure 1. Prepare For The Exam

    Introduction chapter on page 8. 2. If you are a new BladderScan instrument user, Verathon recommends you perform your first exam on ® a patient with a moderately full bladder rather than initially attempting to locate and scan a nearly empty bladder.

  • Page 56: Procedure 2. Measure Bladder Volume

    PROCEDURE 2. MEASURE BLADDER VOLUME 1. Turn on the BVI 9400 by pressing the Power button. 2. Select the exam mode. Select to scan a patient less than 48 inches (122 cm) tall and weighing less than 60 lbs (27 kg). Select to scan a female patient who has not had a hysterectomy.
  • Page 57 6. Place the probe on the gel and aim it toward the expected location of the bladder. For most patients, this means angling the probe slightly toward the patient’s tail bone so the scan clears the pubic bone. 7. If you are scanning an obese patient, lift as much abdominal adipose tissue out of the way of the instrument as possible.
  • Page 58 10. When the Results screen appears, assess the accuracy of the scan as follows. Table 21. Bladder Measurement Accuracy RESULT INDICATOR(S) EXAMPLE If the scan is successful and “on target,” the probe will show eight arrows on the aiming Successful display.

  • Page 59: Procedure 3. Save, Review, & Print Exam Results

    PROCEDURE 3. SAVE, REVIEW, & PRINT EXAM RESULTS IMPORTANT In order to save the scan, you must record an annotation. If you do not record an annotation, the scan result will be lost, and the next scan you perform will overwrite the non‑annotated scan. After performing a scan, you can save the results by recording a voice annotation.

  • Page 60: Procedure 4. Delete A Saved Exam

    Note: If the facility name, date, and time have not been set, those lines will be skipped on the printout. Note: The BVI 9400 prints on thermal paper, which fades over time. For maximum storage life, Verathon ®...

  • Page 61: Cleaning & Maintenance

    CLEANING & MAINTENANCE Routine cleaning and maintenance will help ensure safe and effective operation of the BladderScan BVI 9400. For more information, please contact your authorized BladderScan Service Center, your local BladderScan distributor, or Verathon Customer Care. ® CLEANING & DISINFECTING Clean and disinfect the instrument before use and between patient exams.

  • Page 62: Procedure 2. Disinfect The Instrument

    The level of disinfection required for a device is based on the type of tissue it contacts during use. Based on the intended use of the BladderScan BVI 9400, low‑level disinfection is the minimum level required. 1. Ensure the instrument has been properly cleaned according to the procedure Clean the Instrument page 53.

  • Page 63: Regular Inspections

    REGULAR INSPECTIONS Verathon recommends that the BVI 9400 be certified by an authorized BladderScan Service Center once a year. Certification service includes comprehensive inspection and testing of the instrument to ensure accurate performance in clinical use. For more information, please contact your authorized BladderScan Service Center, your local BladderScan distributor, or Verathon Customer Care.

  • Page 64: Procedure 2. Update The Software

    PROCEDURE 2. UPDATE THE SOFTWARE 1. On the instrument, on the Home screen, press the ScanPoint button 2. On the computer, double‑click the ScanPoint with QuickPrint icon. ScanPoint opens. 3. On the computer, in the ScanPoint QuickPrint window, click Find New. QuickPrint establishes a connection with the instrument, and an icon for the device appears in the left pane.
  • Page 65 4. Select the 9000 Series device, verify that the serial number matches the device you are updating, and then click the Update Instrument button. 5. If any updates are available, the device downloads and installs them. The console displays a progress bar and automatically restarts when the installation is complete.

  • Page 66: Procedure 3. Calibrate The Probe Using The Scanpoint System

    QuickPrint software, you must send your instrument to an authorized ® Verathon service center for calibration. Contact Verathon Customer Care for more information. ® At minimum, the BVI 9400 must be calibrated every 12 months in order to ensure accurate results. Calibrating ensures accurate and proper alignment of the instrument’s internal coordinate system.
  • Page 67 5. Place the probe into the cutout in the lid. Ensure that the tip of the probe is submerged in the water. 6. On the computer, double‑click the ScanPoint with QuickPrint icon. ScanPoint opens. 7. On the console, on the Home screen, press the ScanPoint button 8.
  • Page 68 9. Select the 9000 Series device, verify that the serial number matches the device you are calibrating, and then click the calibration tank icon. 10. Click the Calibrate button. ScanPoint begins to scan and analyze the data in order to ensure that it meets the calibration parameters.

  • Page 69: Device Disposal

    The BladderScan BVI 9400 and related devices may contain mineral oils, batteries, and other environmentally hazardous materials. When the BladderScan BVI 9400 has reached the end of its useful service life, return the device, battery charger/wireless hub, and related accessories to a Verathon Service Center for proper disposal.

  • Page 70: Troubleshooting

    HELP RESOURCES Verathon provides an extensive array of customer service resources, described in the table below. ® You can obtain copies of this manual and clinical studies by visiting the Verathon Web site at verathon.com or by contacting your Verathon representative.

  • Page 71: Troubleshooting Procedures

    3. On the PC, click Find New. While the device is attempting to connect to ScanPoint, remove the battery. 4. Reinsert the battery, allow the device to power on, and then press the ScanPoint button 5. On the PC, click Find New. If the console does not connect, contact Verathon Customer Care. ®...

  • Page 72: Procedure 2. Troubleshoot Power Issues

    In this case, the battery must be recharged or replaced with a charged one. If the instrument has stopped responding even with a new battery, perform a full reset by removing and reinserting the battery. If the instrument still does not respond, contact Verathon Customer Care. PROCEDURE 3. INSTRUMENT TOO HOT The BVI 9400 displays the message “Too hot”...

  • Page 73: Warranty

    The physician who directs the use of the BladderScan BVI 9400 at the institution where it is in use is responsible for keeping current with clinical research in bladder volume measurements.

  • Page 74: Product Specifications

    SPECIFICATION DESCRIPTION Bladder volume accuracy ± (15% + 15ml) (on a Verathon tissue‑equivalent phantom) Bladder volume range 0–999 ml (0–200ml in small child scan mode) The accuracy specifications assume the instrument is being used according to the instructions provided by Verathon while scanning a tissue‑equivalent phantom.

  • Page 75: Battery Specifications

    20–95% non‑condensing BATTERY SPECIFICATIONS The BladderScan BVI 9400 is provided with two lithium‑ion batteries. A battery icon on the instrument display is always present indicating how much power remains and when the battery needs to be changed. You can change the battery whenever necessary.

  • Page 76: Battery Charger/Wireless Hub Specifications

    BATTERY CHARGER/WIRELESS HUB SPECIFICATIONS The battery charger/wireless hub is powered from a standard wall outlet (adaptable to international power standards). The battery charger/wireless hub can charge two batteries simultaneously. Table 27. Battery Charger/Wireless Hub Specifications SPECIFICATION DESCRIPTION Operating Conditions Indoor Ambient temperature range 5–40ºC (41–104ºF) Atmospheric pressure range...

  • Page 77: Standards & Regulations Compliance

    MDD 93/42/EEC Annex 1 Directive Health Insurance Portability and Accountability Act (HIPAA)* * For details on Verathon compliance with privacy rules, please refer to the information in the ScanPoint with QuickPrint Help menu on the ® ScanPoint website (select Privacy Agreement).

  • Page 78: Electromagnetic Compatibility

    Guidance and Manufacturer’s Declaration—Electromagnetic Emissions The BladderScan BVI 9400 system is intended for use in the electromagnetic environment specified below. The customer or the user of the BladderScan BVI 9400 system should assure that it is used in such an environment. EMISSIONS TEST COMPLIANCE ELECTROMAGNETIC ENVIRONMENT –...

  • Page 79: Electromagnetic Immunity

    Guidance and Manufacturer’s Declaration —Electromagnetic Immunity The BladderScan BVI 9400 system is intended for use in the electromagnetic environment specified below. The customer or the user of the BladderScan BVI 9400 system should assure that it is used in such an environment. COMPLIANCE...
  • Page 80 Guidance and Manufacturer’s Declaration —Electromagnetic Immunity The BladderScan BVI 9400 system is intended for use in the electromagnetic environment specified below. The customer or the user of the BladderScan BVI 9400 system should assure that it is used in such an environment. COMPLIANCE...

  • Page 81: Recommended Separation Distances

    The BladderScan BVI 9400 system is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the BladderScan BVI 9400 system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the BladderScan BVI 9400 system as recommended below, according to the maximum output power of the communications equipment.

  • Page 82: Symbol Directory

    SYMBOL DIRECTORY The following table explains the industry symbols used to indicate the BladderScan system’s compliance with international and national standards and regulations. SYMBOL MEANING Marked in accordance with Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) (solid bar indicates product was put on the market after 13 August 2005).
  • Page 83 SYMBOL MEANING Connector Polarity Mark TUV—Safety approval mark for components or subassemblies GS—German safety approval showing conformity with the German Equipment Safety Danger of electric shock Power Lithium‑ion batteries in shipping package Flammable Fragile Limited power source Eljintek—Manufacturer of the switching power supply Symbols assigned to GMN for CSA inspector audits Underwriters Laboratories Certification Mark Medical—Ultrasound equipment as to electrical shock, fire and mechanical hazards...

  • Page 84: Glossary

    GLOSSARY TERM DEFINITION Ampere Celsius Centimeter Canadian Standards Association Direct current Electromagnetic compatibility Electromagnetic interference Essential performance The system performance necessary to achieve freedom from unacceptable risk Electrostatic discharge Fahrenheit Gram Gigahertz HIPAA Health Insurance Portability and Accountability Act Hectopascal Hertz International Electrotechnical Commission Image cone...
  • Page 86 verathon.com...
