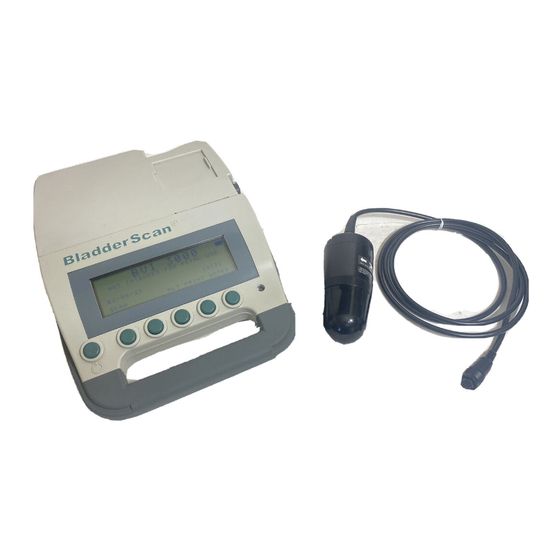

Verathon BladderScan BVI 3000 Quick Reference

B V I 3 0 0 0 Q U I C K R E F E R E N C E
1 Press On/Off Button
2 Press "Scan" Button
3 Select Gender
4 Apply Sontac
Remove the gel pad
5 Aim Toward Bladder
Aim the scanhead slightly downward
toward the patient's coccyx (tail bone)
6 Press "Scan" Button
7 Verify Aim
Centered image = Proceed to step 8
8 Press "Done" for Scan
Results Screen
9 Press "Print" Button
Twice to Print Results
www.dxu.com
For more information, call 800.331.2313 (in the U.S. and Canada) or 425.867.1348
On/Off button
Scan button
Gender button
®
Gel Pad
Place gel pad on the
abdomen of the patient, one inch
above the symphysis pubis
Re-aim toward left
and rescan
Accurate
Press Scan button and
Place the scanhead
on the gel pad
Re-aim downward
and rescan
Inaccurate
return to step 5
0900-0465
