Summary of Contents for SHOWTEC AirDrive 2.4 Pocket 5-pin XLR

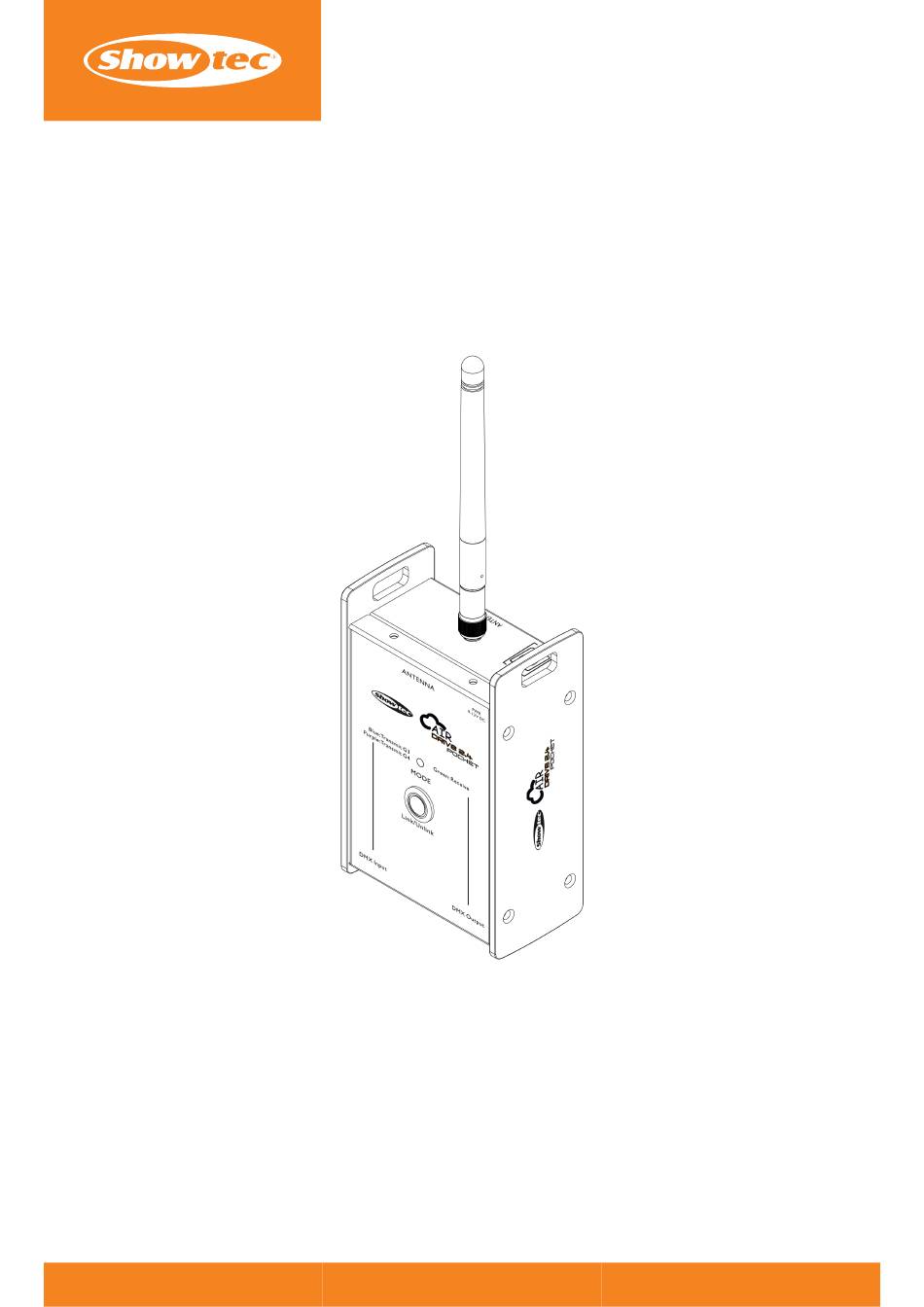

- Page 1 USER MANUAL ENGLISH V1.0 AirDrive 2.4 Pocket, 5-pin XLR Product code: 50260...
- Page 2 AirDrive 2.4 Pocket, 5-pin XLR Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
AirDrive 2.4 Pocket, 5-pin XLR Table of contents 1. Introduction ............................1.1. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec AirDrive 2.4 Pocket, 5-pin XLR • • Antenna • • AC power adapter with 4 interchangeable AC plugs (Europe, UK, US/JP, AUS/NZ) •... -
Page 5: Symbols And Signal Words
AirDrive 2.4 Pocket, 5-pin XLR 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 6: Safety
AirDrive 2.4 Pocket, 5-pin XLR Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. -
Page 7: Requirements For The User
AirDrive 2.4 Pocket, 5-pin XLR • • The power cables are not damaged and do not show any material fatigue. Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 8: Description Of The Device
AirDrive 2.4 Pocket, 5-pin XLR Description of the Device The Showtec AirDrive 2.4 Pocket, 5-pin XLR is a compact DMX-512 transceiver that can be switched between transmitter and receiver functionality. In transmitter mode, the device can transmit in G3 or G4 mode. In receiver mode, the device can receive in G3, G4 and G4S mode. -
Page 9: Bottom View
AirDrive 2.4 Pocket, 5-pin XLR 3.2. Bottom View Figure 3 5-pin DMX XLR connector OUT Mounting opening (3/8") 5-pin DMX XLR connector IN Product code: 50260... -
Page 10: Product Specifications
AirDrive 2.4 Pocket, 5-pin XLR 3.3. Product Specifications Model: AirDrive 2.4 Pocket, 5-pin XLR Control and programming: DMX channels 512 Protocols DMX Operational modes Transceiver Electrical specifications and connections: Power supply 9–12 V DC Power consumption 6 W Power connector in Low voltage DC plug ... -
Page 11: Dimensions
AirDrive 2.4 Pocket, 5-pin XLR 3.4. Dimensions Figure 4 3.5. Optional Accessories You can additionally purchase antennas which can enhance the connectivity range. The following products are available: • • 50117 Outdoor Mini Antenna 2,4 GHz, 2 dBi • • 50118 Indoor Omni Antenna 2,4 GHz, 3 dBi •... -
Page 12: Installation
AirDrive 2.4 Pocket, 5-pin XLR Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. 4.2. -
Page 13: Mounting Options
AirDrive 2.4 Pocket, 5-pin XLR 4.4. Mounting Options The device can be mounted on a microphone stand or to a truss or other rigging structure using a clamp. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging/derigging. -
Page 14: Mounting With A Clamp
AirDrive 2.4 Pocket, 5-pin XLR 4.4.2. Mounting with a Clamp Figure 6 To mount the device with a clamp, follow the steps below: 01) Install the clamp to the mounting opening (M10) (04). Make sure that you use a clamp suitable for attaching the device to a truss. -
Page 15: Line Of Sight
AirDrive 2.4 Pocket, 5-pin XLR 4.6. Line of Sight There are limitations to how wireless waves transmit through air. Physical barriers like glass or walls limit the transmission range. It is important to always have a clear line of sight between transmitters and receivers. Figure 8 ... -
Page 16: Connecting To Power Supply
AirDrive 2.4 Pocket, 5-pin XLR 4.7. Connecting to Power Supply Attention Incorrect handling of the AC power adapter may result in hazardous situations. This device shall be used with an AC power adapter (not included). Incorrect handling of the AC power adapter may result in hazardous situations. -
Page 17: Setup And Operation
AirDrive 2.4 Pocket, 5-pin XLR Setup and Operation 5.1. Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. 5.2. Setup Example The AirDrive 2.4 Pocket, 5-pin XLR can be used in various setups. At least 2 devices are required: 1 to be used as a transmitter and 1 to be used as a receiver. -
Page 18: Setup As Signal Booster
AirDrive 2.4 Pocket, 5-pin XLR 5.3. Setup as Signal Booster The AirDrive 2.4 Pocket, 5-pin XLR can be used as a signal booster to boost the signal across larger distances. Figure 10 To use an AirDrive 2.4 Pocket, 5-pin XLR as a signal booster, follow the steps below: 01) Set up a 1 group of devices with transmitters and receivers. -
Page 19: Change The Transmitter/Receiver Mode
AirDrive 2.4 Pocket, 5-pin XLR 5.4. Change the Transmitter/Receiver Mode The AirDrive 2.4 Pocket, 5-pin XLR has a set-up mode and a use mode. In the set-up mode, the transmission protocol of the device can be changed. In the use mode, the connection between devices can be set up. To change the transmission protocol, follow the steps below: 01) Press and hold the mode button (03) until the mode LED indicator (02) lights up white. -
Page 20: Dmx Cables
AirDrive 2.4 Pocket, 5-pin XLR 5.7.2. DMX Cables Shielded twisted-pair cables with 5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 21: Troubleshooting
AirDrive 2.4 Pocket, 5-pin XLR Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 22: Maintenance
AirDrive 2.4 Pocket, 5-pin XLR Maintenance 7.1. Preventive Maintenance Attention Before use, examine the device visually for any defects. Make sure that: • • All screws used for installing the device or parts of the device are tightly fastened and are not corroded. •... -
Page 23: Deinstallation, Transportation And Storage
AirDrive 2.4 Pocket, 5-pin XLR Deinstallation, Transportation and Storage 8.1. Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. • • Let the device cool down before dismounting. • • Disconnect power supply before deinstallation. •... - Page 24 Showtec is a brand of Highlite International B.V.
