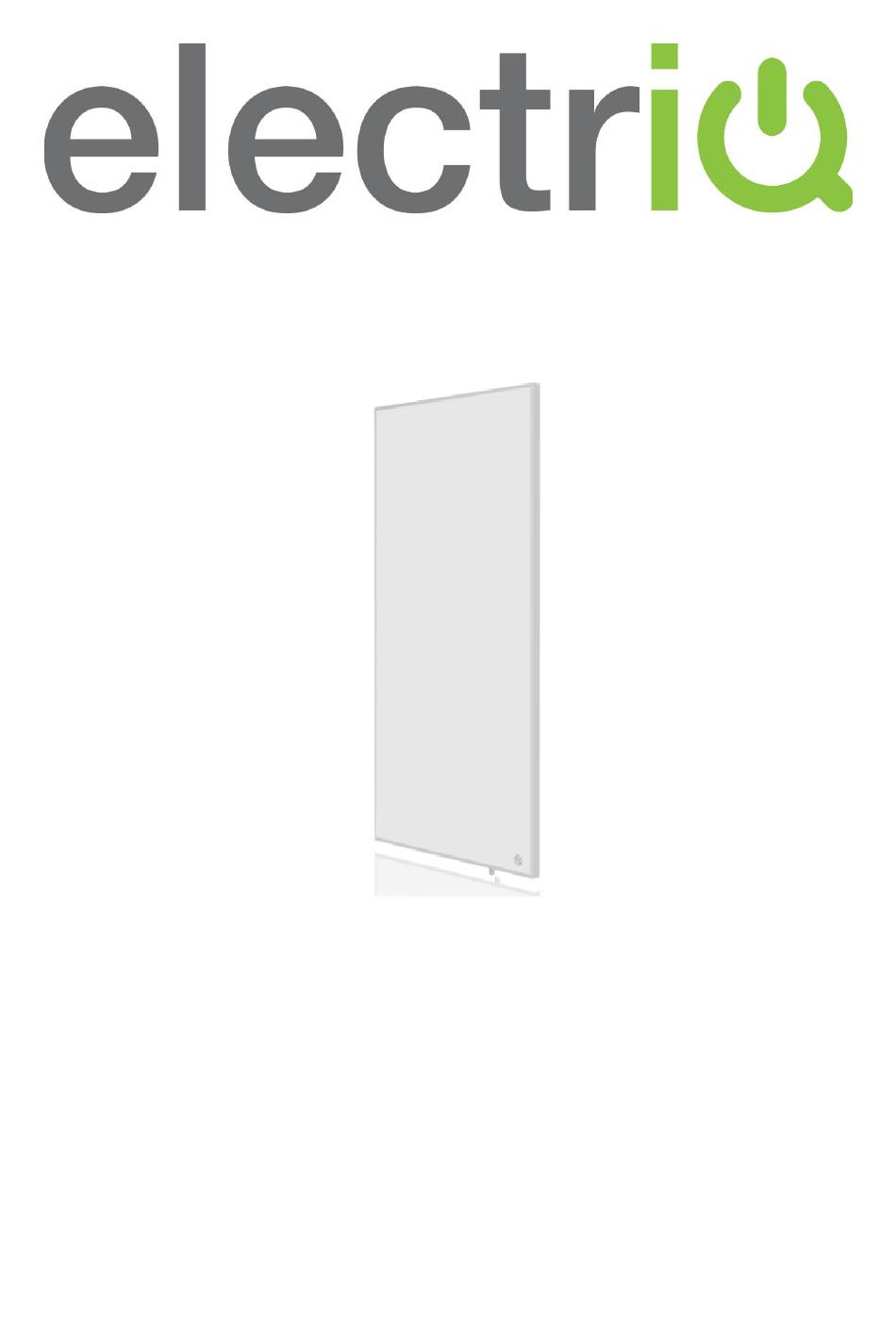

- Page 1 USER MANUAL Light Panel Far Infrared Carbon Heater with Smart App ECFIRPH7W Thank you for choosing electriQ Please read the manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS PRODUCT OVERVIEW INSTALLATION OPERATION SETTING UP THE APP USING THE APP CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT PRODUCT FICHE... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. - Page 4 restrict airflow, as this may present a fire risk. • The heater must not be located immediately below a socket outlet. • Always ensure the unit is secure before operation. Do not use on unstable or uneven surfaces and if wall-mounted, it must be securely attached to a suitable wall.
- Page 5 WALL MOUNTING INSTRUCTIONS NOTE: This heater is designed to be mounted vertically on a solid wall. If the unit does not feel secure when fixed, you will need appropriate fixings for the wall (not supplied). Please make sure the wall is safe to mount. We highly recommend to have the panel installed by a qualified electrician or installer.
-
Page 6: Operation
OPERATION Power Turns the unit On or Off WIFI Use to change the WIFI mode Power Button Temperature Used to increase the desired WIFI Button temperature Temperature Used to Temperature Down decrease the desired temperature Temperature Timer Button Used to set a Down countdown timer and to... - Page 7 OPERATION MANUAL CONTROL Adjust your desired temperature room temperature using the “-” and “+” buttons, after 2 seconds the updated desired temperature will be set. TEMPERATURE CALIBRATION If you find that the temperature display is not showing an accurate reflection of the room temperature, it can be adjusted.
- Page 8 CONNECTING THE APPLIANCE TO WIFI DOWNLOAD THE APP TO YOUR PHONE Download the” TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. Android MODES AVAILABLE FOR SETUP The heater has two different setup modes, Quick Connection and AP (Access Point).
- Page 9 REGISTER THE APP 1. Press on the register button Read the Privacy policy and 3. Enter your email address or at the bottom of the screen. press the Agree Button. phone number and press continue to register. 4. A verification code will be 5.
- Page 10 SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process, the app requires that different areas are created and named to allow easy management of all your devices.
- Page 11 CONNECTING USING THE QUICK CONNECTION METHOD Before initiating the connection, make sure the WiFi indicator is flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
- Page 12 CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before initiating the connection, make sure the unit is in standby mode, with the WiFi Indicator flashing once per second. If not follow the instructions for changing the WiFi connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
- Page 13 CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN NOTE: Due to continuous development of the app, the layout and available features may be subject to change. Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes.
- Page 14 DEVICE SCREEN The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. Device Name Edit Name: Use to Back: Returns to the change the name of the Home Screen heater Current Desired...
- Page 15 SCHEDULE The app provides a timer that can be easily programmed using your phone. This can be accessed through the schedule option at the bottom of the device screen. A number of separate schedule entries can be created to automate operation of the heater throughout the week.
- Page 16 SMART SCENES Smart Scenes is a powerful tool providing the option to customize the operation of the air heater based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation.
- Page 17 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending what other TUYA enabled devices you have on the network. 3. Press on the + at the top of 2.
- Page 18 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. HOME MANAGEMENT Home Management proves options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family.
-
Page 19: Cleaning And Maintenance
2. If the heater is damaged discontinue use and contact the service centre. If the above solutions do not resolve the problem please contact the service centre. TECHNICAL DATA Model no. ECFIRPH7W Voltage 220V-240V 700W Frequency 50 / 60 Hz Max power... -
Page 20: Support
Lowfields Way, Elland West Yorkshire, HX5 9DA DECLARATION OF CONFORMITY Hereby, electriQ declares that this heater follows Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary. - Page 21 Contact electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, West Yorkshire, HX5 9DA Details...
