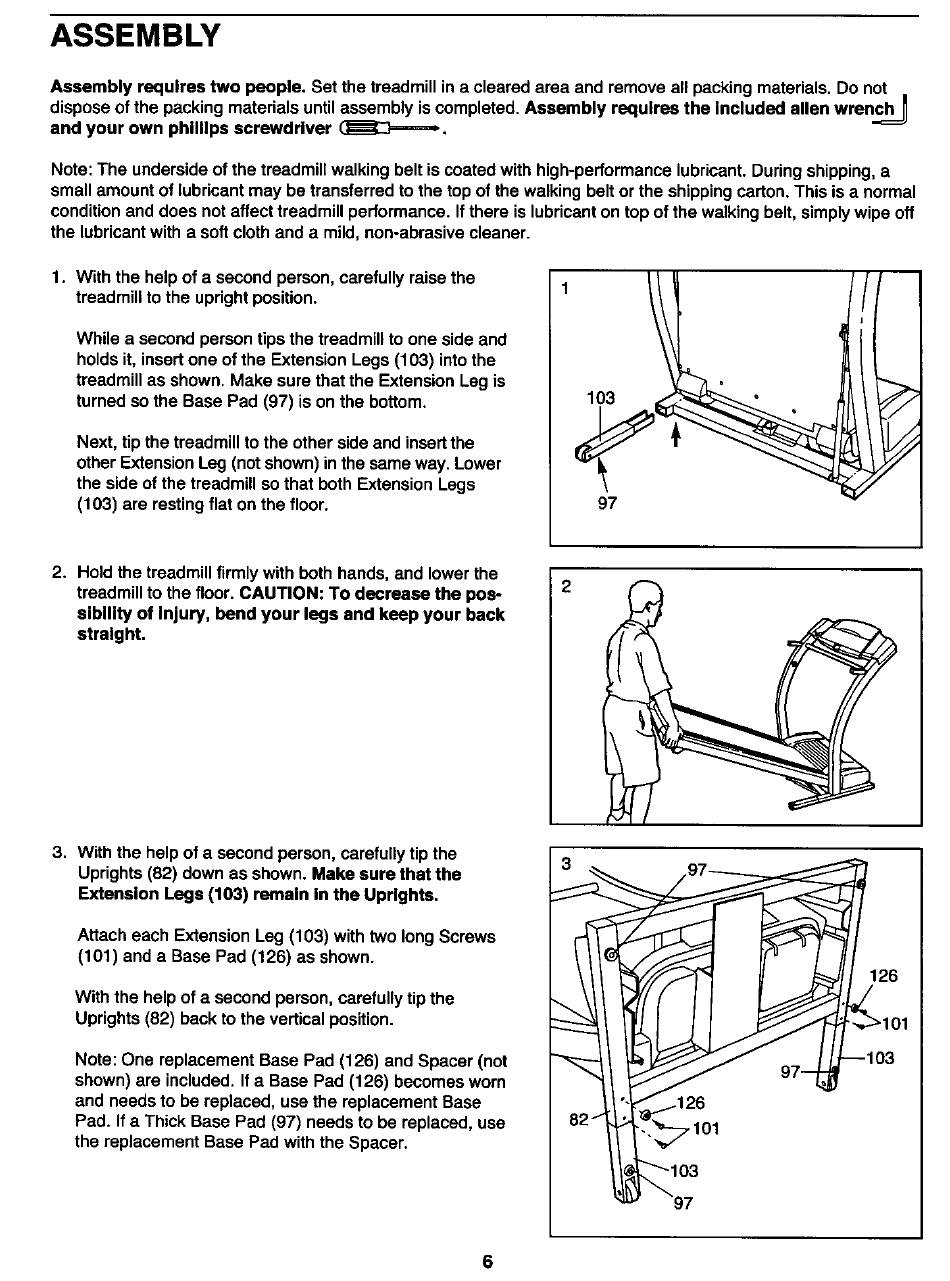

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the Included allen wrenc._
and your own phillips screwdriver (_D======.
Note: The underside of the treadmillwalking belt is coated with high-performancelubricant.During shipping,a
small amount of lubricantmay be transferred to the top of the walking belt or the shippingcarton. This is a normal
conditionand does not affect treadmill performance. If there is lubricanton top of the walking belt, simplywipe off
the lubricantwith a soft clothand a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
treadmillto the upright position.
While a second person tips the treadmill to one side and
holds it, insertone of the Extension Legs (103) intothe
treadmill as shown. Make sure that the Extension Leg is
turned so the Base Pad (97) is on the bottom.
Next, tip the treadmill to the other side and insertthe
other ExtensionLeg (not shown)in the same way. Lower
the side of the treadmill so that both Extension Legs
(103) are restingflat on the floor.
97
f,
2. Hold the treadmillfirmly with both hands, and lower the
treadmill to the floor. CAUTION: To decrease the pos-
sibility of Injury, bend your legs end keep your back
straight.
3. With the help of a second person, carefully tip the
Uprights (82) down as shown. Make sure that the
Extension Legs (103) _maln In the Uprights.
Attach each Extension Leg (103) with two long Screws
(101) and a Base Pad (126) as shown.
With the help of a second person, carefully tip the
Uprights (82) back to the vertical position.
Note: One replacement Base Pad (126) and Spacer (not
shown) are included. If a Base Pad (126) becomes worn
and needs to be replaced, use the replacement Base
Pad. If a Thick Base Pad (97) needs to be replaced, use
the replacement Base Pad with the Spacer.
2
,101
97
6
