3onedata IES6000-PN-8T2GT-2P Quick Installation Manual

IES6000-PN-8T2GT-2P(12-48VDC)
Managed PROFINET Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch×1
2. Warranty card
3. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is layer 2 managed wall-mounted PROFINET
industrial Ethernet switch.
IES6000-PN-8T2GT-2P(12-48VDC) (8 100M M12 + 2 Gigabit
M12, 12~48VDC redundant power supply input).

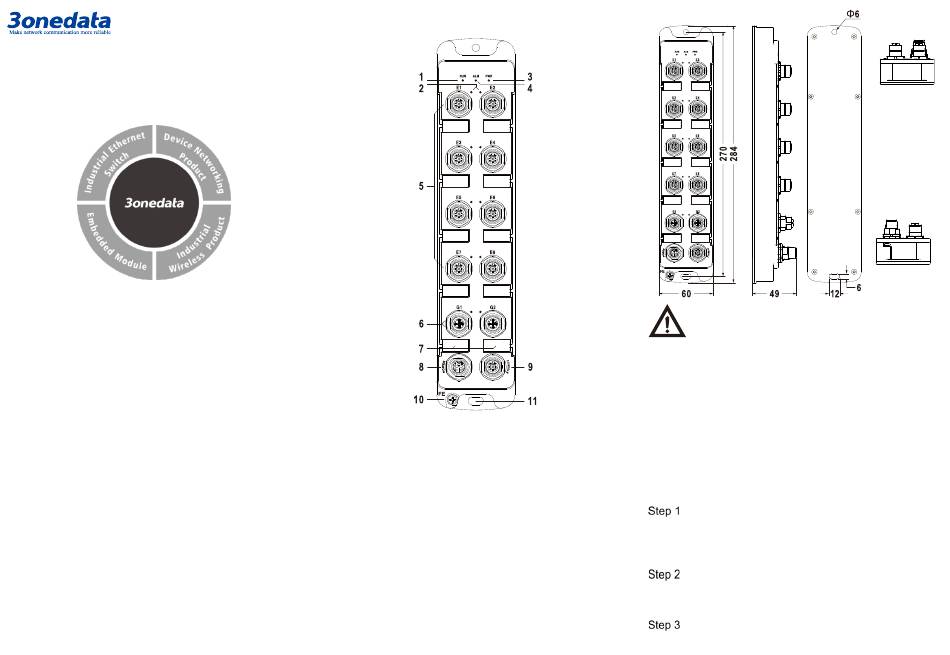

【Panel Design】
Front view

1. Running indicator (RUN)
2. Interface indicator (E1-E8, G1-G2)
3. Power supply indicator PWR
4. Alarm indicator (ALM)
5. 10/100Base-T(X) 100M M12 (E1-E8)
6. 10/100/1000Base-T(X) Gigabit M12 (G9-G10)
7. ID column
8. Power input M12 interface (POWER)
9. CONSOLE port
10. Grounding screw (FE)
11. Wall-mounting location hole
The model:
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【Wall-mounted Device Mounting】
On the wall of device mounting, place the device on
the wall for reference or refer to the mounting
dimension to mark two screw positions.
Hang the device on the labeled wall, align the bolt
to the labeled position, then fix them with a certain
gap.
Adjust the device to the proper position, then
tighten the screws, and the installation is finished.
