3onedata Logicbus IES6000-8GP2HS Quick Installation Manual

Layer 2 Managed Industrial PoE
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 075526702688
Fax: +86 075526703485
Package Checklist
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch 2. Certification
3. Quick installation guide 4. Warranty card
5. DIN-Rail mounting attachment 6 CD
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
Product Overview

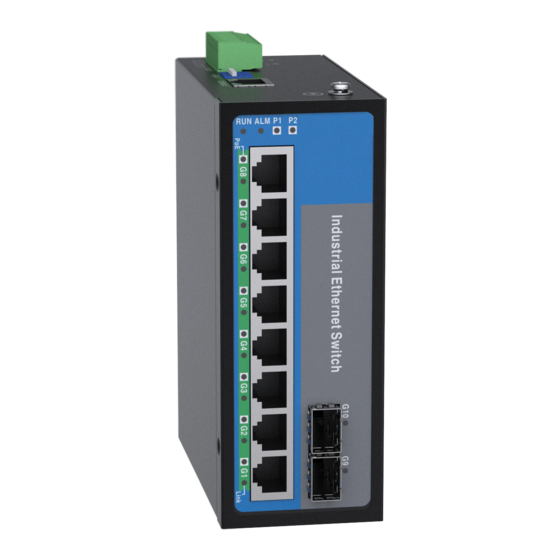

This product is layer 2 managed DIN-Rail industrial PoE
Ethernet switch. The model is: IES6000-8GP2HS-2P24-120W
(8 Gigabit PoE Copper Ports + 2 2.5G SFP Slots, 24VDC
redundant power supply)
Panel Design
Top view, bottom view and rear view
Front view and Side view
1. Input terminal block for Power 1
2. Input terminal block for Power 2
3. Relay alarm output terminal
4. DIP switch
5. Console port
6. Grounding screw
7. Wall-mounting location hole
8. DIN-Rail mounting kit
9. Power indicator (P1/P2)
10. Alarm indicator (ALM)
11. Running indicator (RUN)
12. PoE indicator (PoE G1-G8)
13. Interface connection indicator (Link G1-G10)
14. 10/100/1000Base-T(X) Gigabit PoE copper port
(G1-G8)
2.5G SFP slot (G9-G10)
15.
Mounting Dimension
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging
the device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
DIN-Rail Mounting
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
