IES6000-4GT2HS
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 075526702688
Fax: +86 075526703485
Package Checklist
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch 2. Certification
3. Quick installation guide 4. Warranty card
5. DIN-Rail mounting attachment 6 CD
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
Product Overview
This product is Gigabit managed DIN-Rail industrial Ethernet
switch. The model is: IES6000-4GT2HS (4 Gigabit Copper
Ports + 2 2.5G SFP)
Panel Design

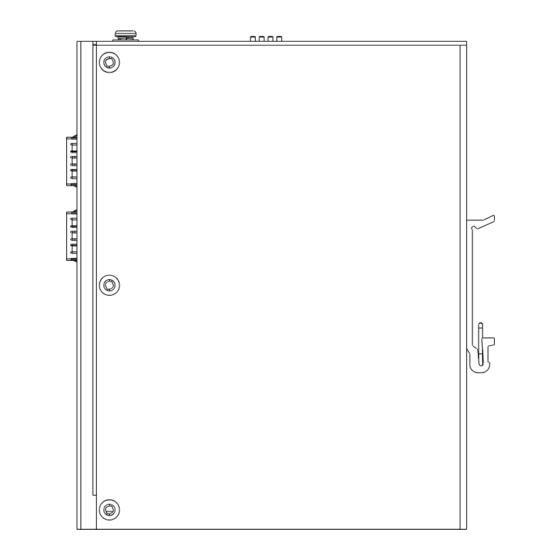

Top view, bottom view and rear view
Front View
1.
DIN-Rail mounting kit
2.
Power input terminal (P1, P2)
3.
Relay alarm output terminal block
4.
DIP switch
5.
Console port
6.
Grounding screw
7.
Power input status indicator P1
8.
Relay alarm indicator ALM
9.
Device running indicator RUN
10.
Power input status indicator P2
11.
2.5G SFP interface state indicator
12.
2.5G SFP slot
13.
10/100/1000Base-T(X) Gigabit Ethernet Interface
14.
Ethernet port link indicator
Mounting Dimension
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging
the device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
DIN-Rail Mounting
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
