ICS5400 Series
Rack-mounted Layer 3 Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Switch ×1
2.
Mounting lug x2
3.
AC power line x2 (AC product only)
4.
Warranty card
5.
Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

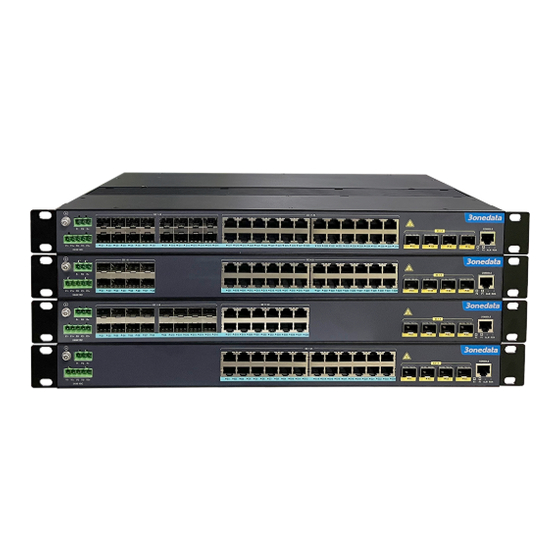

【Product Overview】
This series are rack-mounted layer 3 industrial Ethernet
switches. For convenience, the products of this series adopt
the following number on the left in this guide, please confirm
the number of your product:
Model I. ICS5400-24GT4XS-2LV (24 Gigabit copper ports + 4
10G SFP+ slots, 12~55VDC redundant power
supply).
Model II. ICS5400-12GT16GS4XS-2LV (12 Gigabit copper
ports + 16 Gigabit SFP slots + 4 10G SFP+ slots,
12~55VDC redundant power supply)
Model III. ICS5400-24GT8GS4XS-2LV (24 Gigabit copper
ports + 8 Gigabit SFP slots + 4 10G SFP+ slots,
12~55VDC redundant power supply)
Model IV. ICS5400-24GT16GS4XS-2LV (24 Gigabit copper
ports + 16 Gigabit SFP slots + 4 10G SFP+ slots,
12~55VDC redundant power supply)
Model V. ICS5400-24GT4XS-2HV (24 Gigabit copper ports +
4 10G SFP+ slots, 85~264VAC redundant power
supply).
Model VI. ICS5400-12GT16GS4XS-2HV (12 Gigabit copper
ports + 16 Gigabit SFP slots + 4 10G SFP+ slots,
85~264VAC redundant power supply)
Model VII. ICS5400-24GT8GS4XS-2HV (24 Gigabit copper
ports + 8 Gigabit SFP slots + 4 10G SFP+ slots,
85~264VAC redundant power supply)
Model VIII. ICS5400-24GT16GS4XS-2HV (24 Gigabit copper
ports + 16 Gigabit SFP slots + 4 10G SFP+ slots,
85~264VAC redundant power supply)

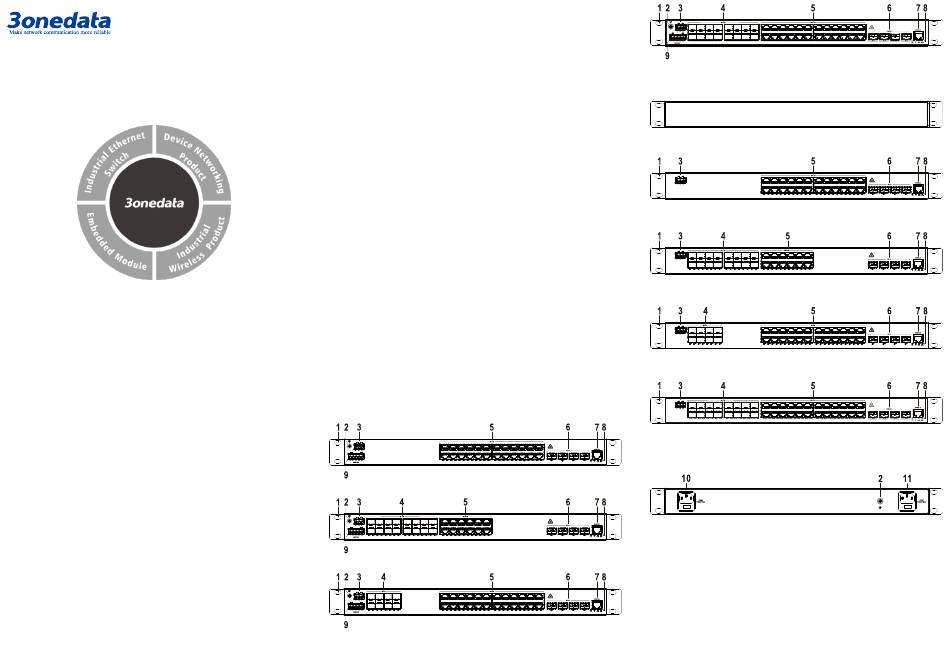

【Panel Design】
DC device: front view
Model I
Model II
Model III
Model IV
DC device: rear view
AC device: front view
Model V
Model VI
Model VII
Model VIII
AC device: rear view
1.
Lugs
2.
Grounding screw (M4)
3.
Relay alarm output interface
4.
100/1000Base-X Gigabit SFP slot (GS 1-16/1-8)
5.
10/100/1000Base-T(X) Gigabit copper port (GE
1-24 / 17-28 / 17-32 / 9-32 / 17-40)
6.
1G/2.5G/10GBase-X 10Gigabit SFP+ slot (XS 1-4)
7.
CONSOLE port
