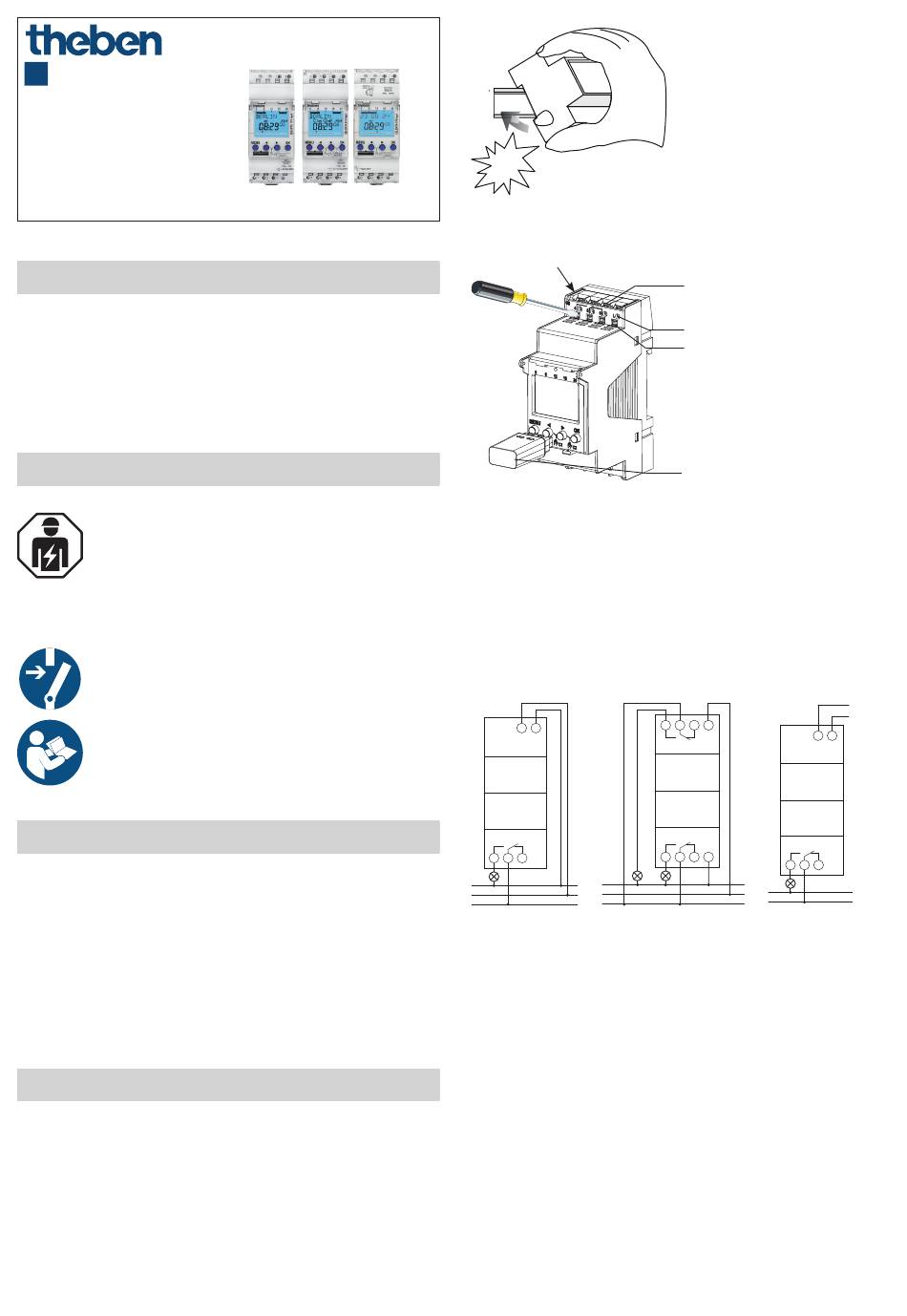

Theben SELEKTA 170 top3 Operating Instructions Manual

Astro Time Switch
EN
SELEKTA 170 top3
1700130
SELEKTA 174 top3
1740130
SELEKTA 170 top3 12–24V
1704130
1. General information
•
The device is designed for installation on DIN rails (in
accordance with EN 60715)
•
Power reserve (10 years) is reduced if memory card is
inserted (using battery power)
•
Corresponds to type 1.B.S.T.U nach IEC/EN 60730-2-7
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
the entire manual and follow the instructions.
3. Proper use
•
The astronomic time switch is used, for instance, for
lighting equipment (roads, external staircases, display
windows, entrances etc.)
•
Interface for Bluetooth OBELISK top3 (app)
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment etc.
4. Installation and connection
Mounting the time switch
Mount on DIN rail.
†
307304 03
10.11.2024
click
45° cable
!
Check the depth of the control cabinet when OBELISK
top3 is connected. The depth must be > 94 mm.
Connecting the time switch
!
Correct connection required for smooth zero-cross
switching operation.
L N
C1
1 2 3
SELEKTA 170 top3
Connecting the cable
Strip cable to 8 mm (max. 9).
†
Insert cable in the open DuoFix plug-in terminal at 45°.
†
L 2 cables per terminal position possible.
To open the DuoFix plug-in terminal, press screwdriver
†
downwards.
Disconnecting the cable
Use the screwdriver to push the spring plug-in terminal
†
downwards.
TH 35-7,5
(DIN EN 60715)
DuoFix spring
plug-in terminal
Test connection
Spring plug-
in terminal
opener
Bluetooth OBELISK top3
(9070130)
4 5 6 L
C2
C1
1 2 3 N
N
N
L
L
L
L
SELEKTA 174 top3
+ ~
12–24 V
– ~
+ ~ – ~
C1
1 2 3
N
L
SELEKTA 170 top3 12–24V
1
