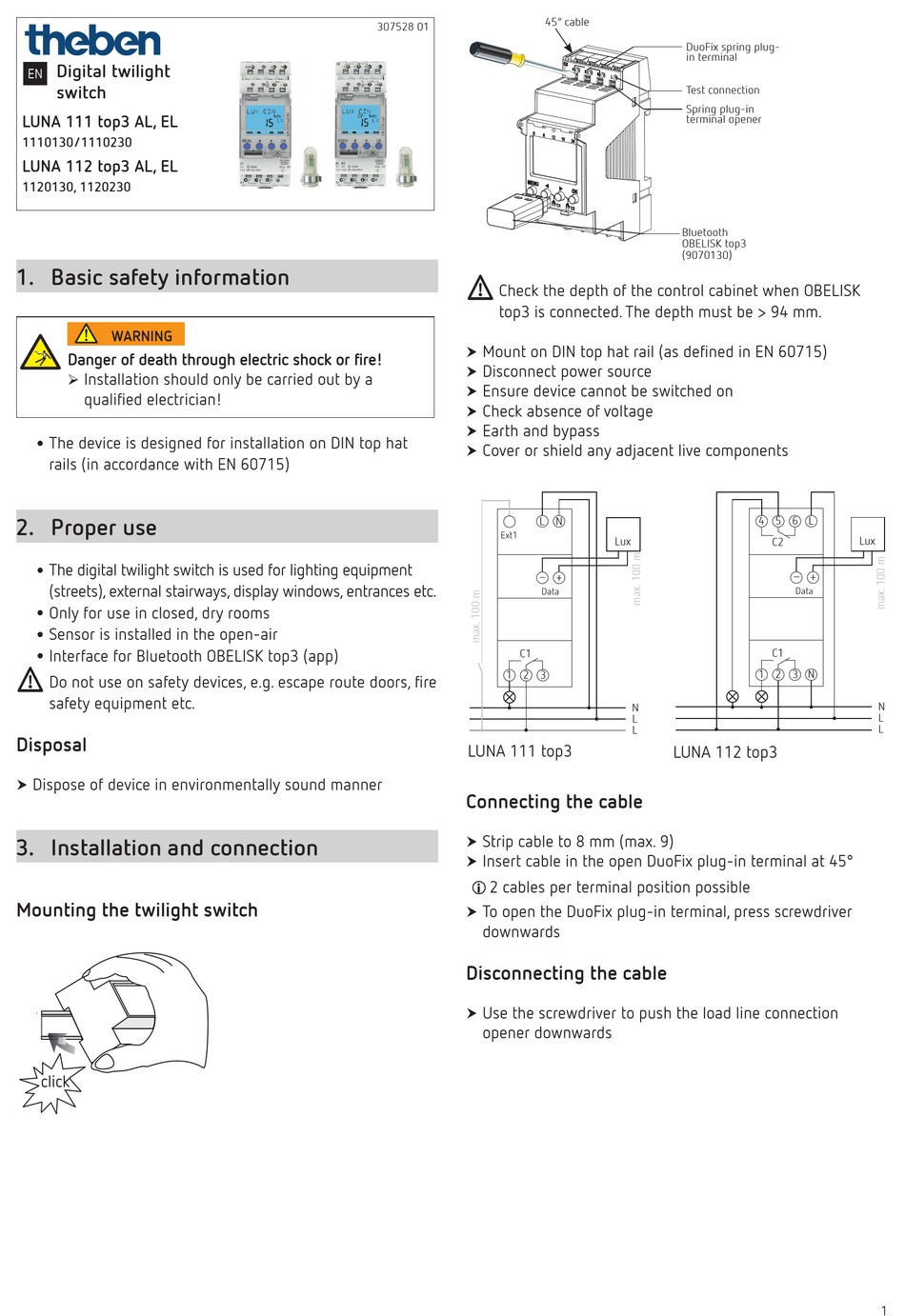

Theben LUNA 111 top3 AL Operating Instructions Manual

Digital twilight
EN
switch

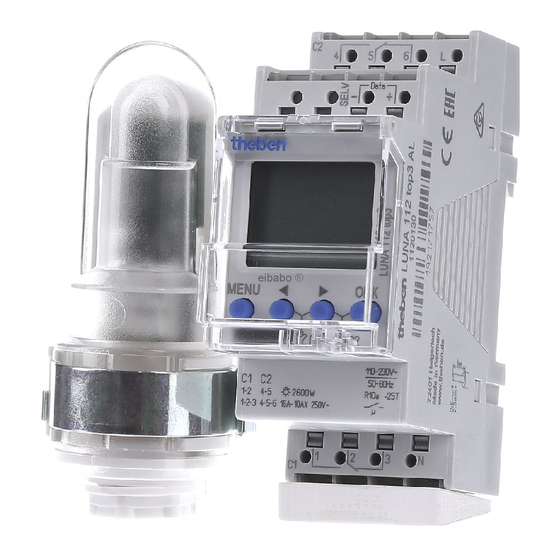

LUNA 111 top3 AL, EL
1110130/1110230
LUNA 112 top3 AL, EL
1120130, 1120230
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾ ¾
qualified electrician!
•
The device is designed for installation on DIN top hat
rails (in accordance with EN 60715)
2. Proper use
•
The digital twilight switch is used for lighting equipment
(streets), external stairways, display windows, entrances etc.
•
Only for use in closed, dry rooms
•
Sensor is installed in the open-air
•
Interface for Bluetooth OBELISK top3 (app)
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment etc.
Disposal
Dispose of device in environmentally sound manner
† ¾
3. Installation and connection
Mounting the twilight switch
click
45° cable
307528 01
!
Check the depth of the control cabinet when OBELISK
top3 is connected. The depth must be > 94 mm.
Mount on DIN top hat rail (as defined in EN 60715)
†
¾
Disconnect power source
† ¾
Ensure device cannot be switched on
† ¾
Check absence of voltage
† ¾
Earth and bypass
†
¾
Cover or shield any adjacent live components
†
¾
L N
Ext1
– +
Data
C1
1 2 3
LUNA 111 top3
Connecting the cable
Strip cable to 8 mm (max. 9)
†
¾
Insert cable in the open DuoFix plug-in terminal at 45°
† ¾
L 2 cables per terminal position possible
To open the DuoFix plug-in terminal, press screwdriver
†
¾
downwards
Disconnecting the cable
Use the screwdriver to push the load line connection
†
¾
opener downwards
DuoFix spring plug-
in terminal
Test connection
Spring plug-in
terminal opener
Bluetooth
OBELISK top3
(9070130)
4 5 6
Lux
C2
C1
1 2 3
N
L
L
LUNA 112 top3
L
Lux
– +
Data
N
N
L
L
1
