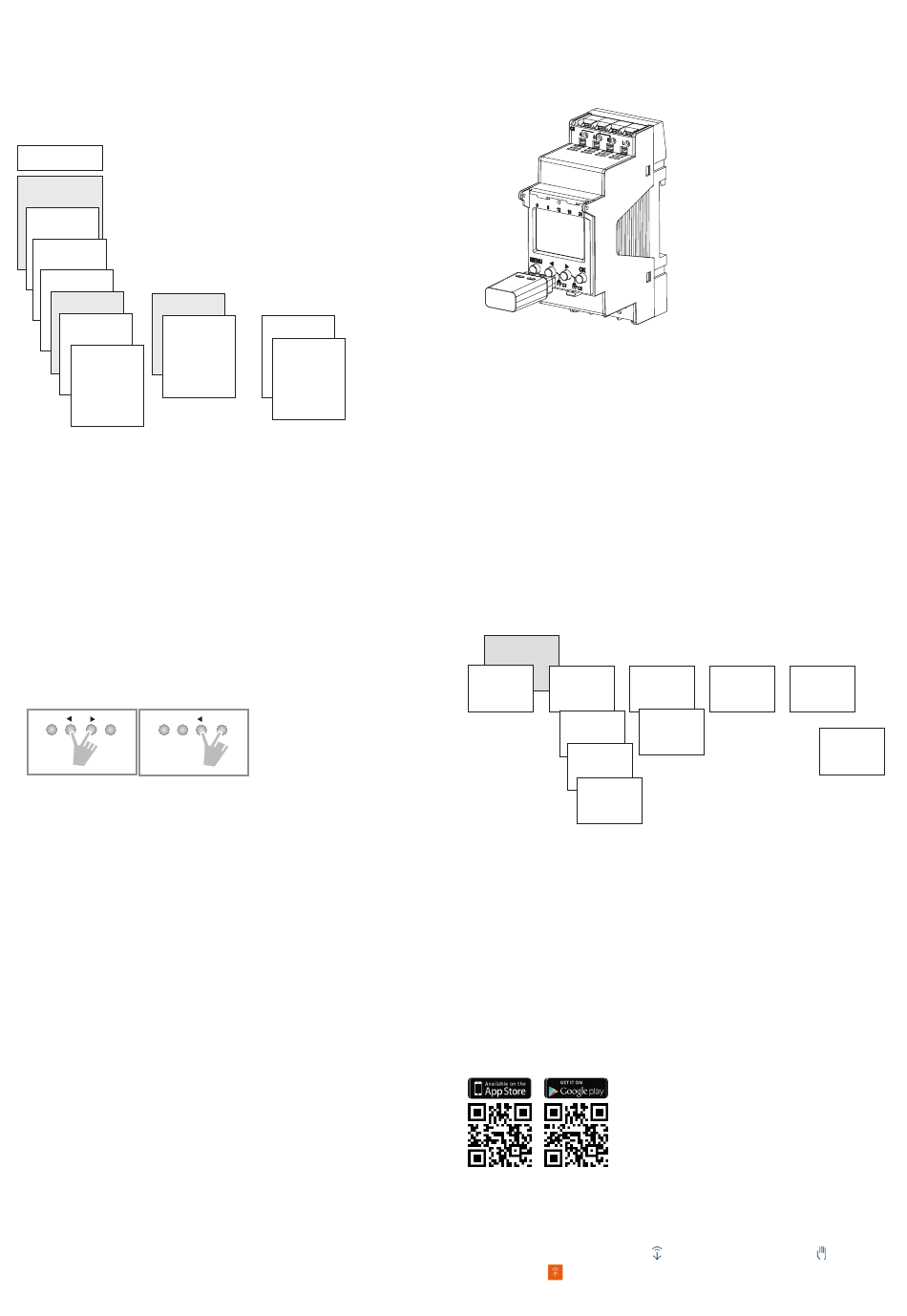

Theben SELEKTA 170 top3 Operating Instructions Manual page 5

Activate PIN-Code
The PIN code is set in OPTIONS via the menu.
L If you have lost the PIN, please call the Theben Hotline.
L Have the serial number ready!
MENU
OPTIONS
u
OPERATING
HOUR
EXT INPUT
LANGAGE
PIN
NO PIN
u
FACTORY
WITH PIN
SETTINGS
INFO
Setting manual or permanent switching
Manual and permanent switching can be set using the menu
in MANUAL or (in the automatic screen) by key combination
(see fig).
•
Manual control
Reversing the channel status to the next automatic or
programmed switching.
•
Permanent switching
As long as a permanent switching (on or off) is activated,
the programmed switching times are ineffective.
C1 C2
Activate manual switching
Briefly press both keys simultaneously.
†
Activate permanent switching
Simultaneously press both keys for 2 seconds.
†
Cancelling manual/permanent switching
Press both keys simultaneously.
†
Operating hour counter
The operating hours of the channel (relay) are displayed and
deleted in the OPTIONS menu. If the number of operating
hours exceeds the value set in the Service menu, SERVICE
will appear in the display.
Example: Replace a lamp after 5,000 h.
Delete operating hours or set a higher value in Service
†
(e.g. to 10,000 h).
CURRENT PIN
u
NEW PIN
00:00
u
ok
Using Bluetooth OBELISK top3
All functions can also be transferred to the time switch using
the Bluetooth OBELISK top3 memory card (9070130).
Copy OBELISK → Time switch
Copies all switching programs and settings from the time
switch to the memory card. Starting OBELISK program.
Copy time switch → OBELISK
Copies all switching programs and settings from the time
switch to the memory card.
Start OBELISK program
Takes on the switching times that are programmed on the
memory card.
As soon as the memory card is removed, the switching times
of the time switch are re-activated.
OBELISK
u
u
BLUETOOTH COPY COPY TSWI
OBELISK -> -> OBELISK
TSWI
COPY ALL
DATA
COPY
PROGRAM
END
Connect time switch, Bluetooth OBELISK top3 and
smartphone (via app)
The devices in the top3 range can be programmed using an
app (for Android, iOS) on a mobile end device. Communication
takes place via Bluetooth OBELISK top3. Switch programmes
are transferred and direct switch commands are sent to the
device.
Download the OBELISK top3 app from the App Store or
†
Google Play Store.
L Bluetooth connection only possible in automatic mode, not
in manual mode like OPTIONS etc.
Open the app and activate using one of the 3 commands,
†
by pressing „Download"
„Upload" .
▻ Device/device list appears on the display.
u u
RUN CHECK
OBELISK OBELISK
OVERWRITE
OK
u
, „Manual command"
u
END
or
5
