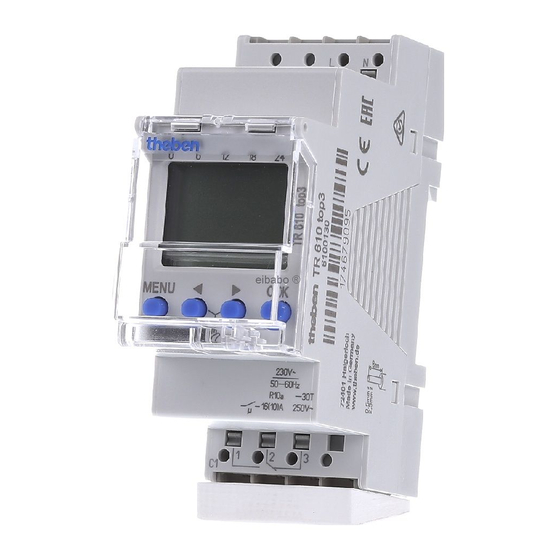

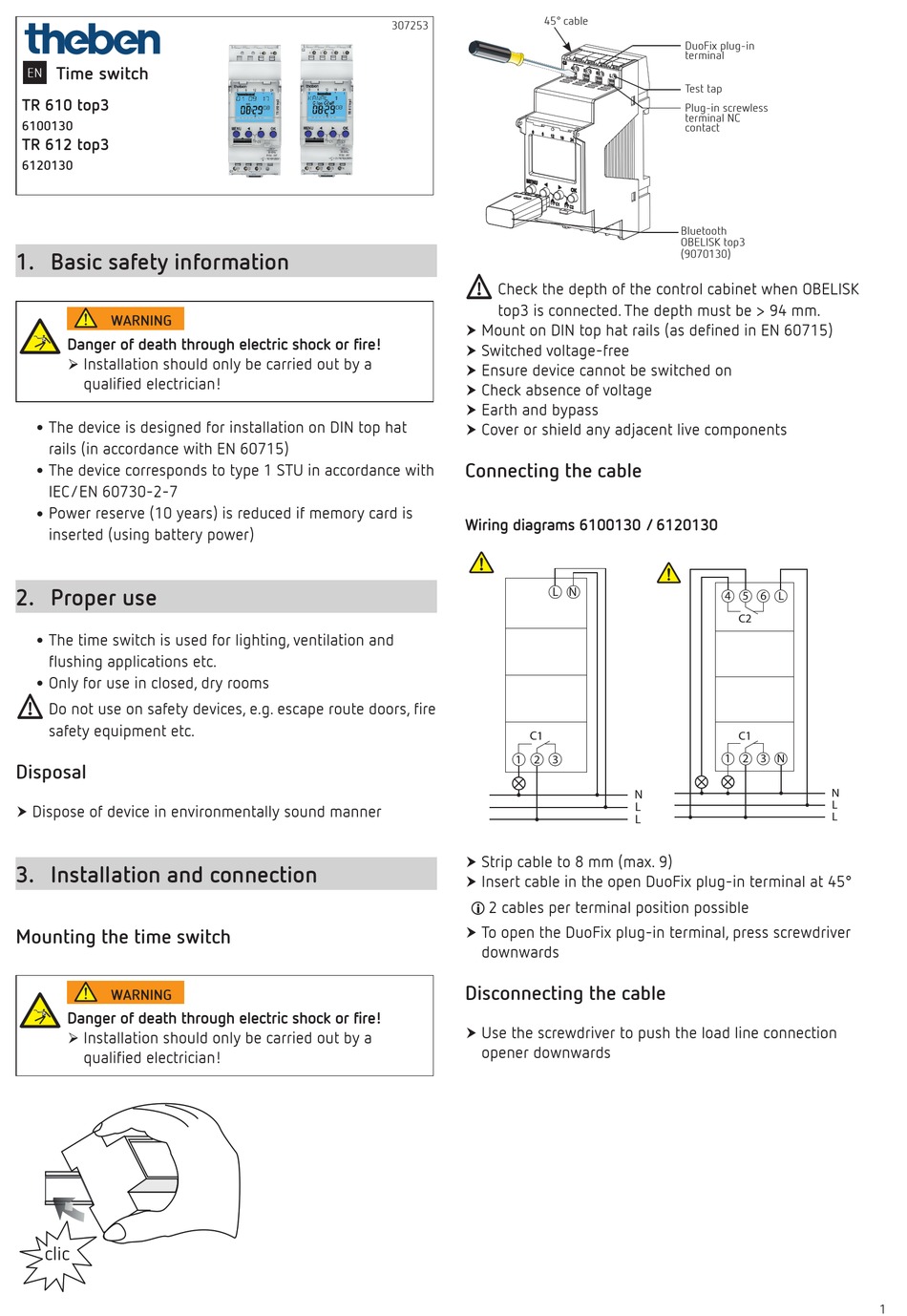

Time switch
EN
TR 610 top3
6100130
TR 612 top3
6120130
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
•
The device is designed for installation on DIN top hat
rails (in accordance with EN 60715)
•
The device corresponds to type 1 STU in accordance with
IEC/EN 60730-2-7
•
Power reserve (10 years) is reduced if memory card is
inserted (using battery power)
2. Proper use
•
The time switch is used for lighting, ventilation and
flushing applications etc.
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment etc.
Disposal
Dispose of device in environmentally sound manner
†
¾
3. Installation and connection
Mounting the time switch
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
clic
45° cable
307253
!
Check the depth of the control cabinet when OBELISK
top3 is connected. The depth must be > 94 mm.
Mount on DIN top hat rails (as defined in EN 60715)
†
¾
Switched voltage-free
†
¾
Ensure device cannot be switched on
†
¾
Check absence of voltage
†
¾
Earth and bypass
†
¾
Cover or shield any adjacent live components
†
¾
Connecting the cable
Wiring diagrams 6100130 / 6120130
L N
C1
1 2 3
Strip cable to 8 mm (max. 9)
†
¾
Insert cable in the open DuoFix plug-in terminal at 45°
†
¾
L 2 cables per terminal position possible
To open the DuoFix plug-in terminal, press screwdriver
†
¾
downwards
Disconnecting the cable
Use the screwdriver to push the load line connection
†
¾
opener downwards
DuoFix plug-in
terminal
Test tap
Plug-in screwless
terminal NC
contact
Bluetooth
OBELISK top3
(9070130)
4 5 6 L
C2
C1
1 2 3
N
N
L
L
N
L
L
1
Advertisement
Related Manuals for Theben TR 610 top3
Summary of Contents for Theben TR 610 top3
- Page 1 45° cable 307253 DuoFix plug-in terminal Time switch Test tap TR 610 top3 Plug-in screwless terminal NC 6100130 contact TR 612 top3 6120130 Bluetooth OBELISK top3 1. Basic safety information (9070130) Check the depth of the control cabinet when OBELISK top3 is connected.
-
Page 2: Device Description
4. Device description Overview of navigation menu MENU Display & buttons PROGRAM TIME/DATE MANUAL CHANNEL C1 TIME CHANNEL C1 SET DATE PERM ON Programmed CHECK SU--WI PERM OFF switching times MODIFY WEEK OVERR ON Date display Time display DELETE HOLIDAY FORM DATE Channel status Days of the week... -
Page 3: Settings And Functions
5. Settings and functions L You can either change or delete a block, i.e. a switching time copied for several days (e.g. Mon-Fri) or a single switching time Set switching time Change individual switching times Press MENU † ¾ MENU Select PROGRAM and press OK to confirm †... -
Page 4: Setting Holiday Function
All functions can also be transferred to the time switch using the Bluetooth OBELISK top3 memory card (9070130). Activating PIN code The PIN code is set in OPTIONS via the menu. L If you have forgotten your PIN, call the Theben Hotline. L Have the serial number ready. MENU OPTIONS... -
Page 5: Resetting The Time Switch
OBELISK BLUETOOTH COPY COPY TSWI CHECK OBELISK -> -> OBELISK OBELISK OBELISK TSWI OVERWRITE COPY ALL DATA COPY PROGRAM Now, for example, projects can be created and uploaded. Now, for example, projects can be created and uploaded. Now, for example, projects can be created and uploaded. Connect time switch, Bluetooth OBELISK top3 and smartphone (via app) The devices in the top3 range can be programmed using an... -
Page 6: Technical Data
Min. switching capacity: 10 mA/230 V AC 100mA/ 24 V AC/DC Switch output: switching of any phase is per- mitted (TR 612 top3) TR 610 top3: suitable for switching SELV (Safe Extra-Low Voltage) Shortest switching time: 1 min Switching accuracy:...
