Page 1: Table Of Contents
307304 02 05.06.2023 Astro Time Switch SELEKTA 170 top3 1700130 SELEKTA 174 top3 1740130 1. General information 2. Safety 3. Proper use 4. Installation and connection 5 Mounting the time switch Connecting the time switch Connecting the cable Disconnecting the cable 5. - Page 2 Overview of menu selection 10 Initial start-up 6. Settings and functions ASTRO menu Change astro time/position 13 Setting the offset function Set fixed switching time Setting summer/winter time 17 Switch Permanent ON/OFF Setting holiday function Activate PIN-Code Setting manual or permanent switching Operating hour counter Using Bluetooth OBELISK...
- Page 3 Connect time switch, Bluetooth OBELISK top3 and smartphone (via app) Resetting the time switch 7. Technical Data Cleaning and service Disposal 8. Dimensional drawings 9. Contact...
-
Page 4: General Information
1. General information • The device is designed for installation on DIN rails (in accordance with EN 60715) • Power reserve (10 years) is reduced if memory card is inserted (using battery power) • Corresponds to type 1 STU nach IEC/EN 60730-2-7 2. -
Page 5: Proper Use
3. Proper use • The astronomic time switch is used, for instance, for lighting equipment (roads, external staircases, display windows, entrances etc.) • Interface for Bluetooth OBELISK top3 (app) • Only for use in closed, dry rooms Do not use on safety devices, e.g. escape route doors, fire safety equipment etc. - Page 6 45° cable DuoFix spring plug-in terminal Test connection Spring plug- in terminal opener Bluetooth OBELISK top3 (9070130) Check the depth of the control cabinet when OBELISK top3 is connected. The depth must be > 94 mm.
-
Page 7: Connecting The Time Switch
Connecting the time switch Correct connection required for smooth zero-cross switching operation. SELEKTA 170 top3 SELEKTA 174 top3 4 5 6 L 1 2 3 1 2 3 Connecting the cable Strip cable to 8 mm (max. 9). † Insert cable in the open DuoFix plug-in terminal at 45°. -
Page 8: Disconnecting The Cable

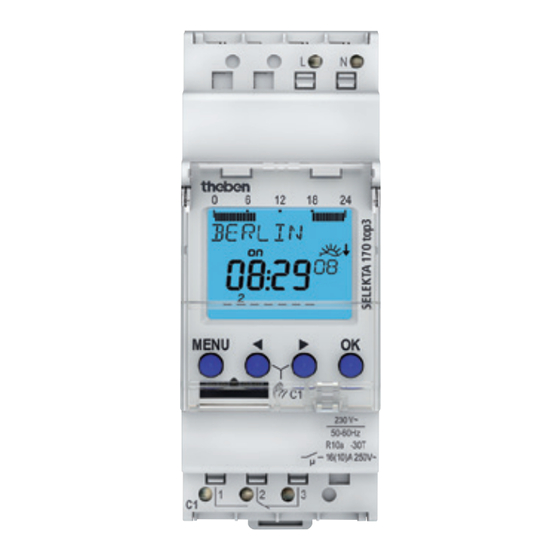

Disconnecting the cable Use the screwdriver to push the spring plug-in terminal † downwards. 5. Device description Display & buttons Programmed Sunrise/sunset ON times display Date display Time display Channel status Days of the week ON = On from 1 to 7 OFF = Off Display of the active buttons with the relevant function... -
Page 9: Operating Instructions
Operating instructions 1. Read text lines Flashing text/symbol is a prompt 2. Make a decision Change/ Confirmation select press press... -
Page 10: Overview Of Menu Selection
Overview of menu selection MENU ASTRO PROGRAM TIME/DATE ASTRO- TIME CHANNEL C1 TIMES SET DATE TOTAL SIMULATION CHECK SU-WI OFFSET WEEK DAY MODIFY ASTRO- DELETE FORM DATE MODE TOTAL FORM TIME LOCATION SIMULATION MANUAL OPTIONS CHANNEL C1 OPERATING HOUR PERM ON LCD-ILLUMI- NATION PERM OFF... -
Page 11: Initial Start-Up
Initial start-up MENU GERMAN RETAIN COUNTRY PROGRAMS ENGLISH DELETE COORDINATES PROGRAM SPANISH FRENCH GERMANY STUTTGART FORM DATE SPAIN BERLIN YEAR ESTONIA BREMEN MONTH FRANCE DRESDEN GREAT BRITAIN DUESSELDORF FORM TIME HOUR MINUTE SUM-WI EUROPE 28 10 17 9:40 Set language, country, town/city, date, time as well as †... -
Page 12: Settings And Functions
Press any button and follow on-screen instructions † (see figure). 6. Settings and functions ASTRO menu In the ASTRO menu astro times, complete simulation, offset, astromode as well as position (location) can be viewed or changed. • Astro times Display of the astro times (including the offsets) for the current day. -
Page 13: Change Astro Time/Position
• Position Location set by selecting a city or by coordinates – (latitude/longitude, time zone). The Bluetooth OBE- LISK top3 allows up to 10 further cities (= favourites) to be entered. Change astro time/position MENU ASTRO ASTRO TIMES TOTAL SIMULATION OFFSET ASTROMODE LOCATION... -
Page 14: Setting The Offset Function
E.g. enter a different country, a different town/city Press MENU (see picture). † Setting the offset function MENU ASTRO ASTRO TIMES TOTAL SIMULAION OFFSET CHANNEL C1 ASTROMODE OFFSET OFFSET MORNING EVENING OFFSET OFFSET MORNING EVENING 00:00 00:00 Press MENU. † Select ASTRO and press OK to confirm. -
Page 15: Set Fixed Switching Time
Set fixed switching time MENU PROGRAM CHANNEL C1 MEM FREE 56 NIGHT BREAK LIGHT ON CHECK MODIFY HOUR DELETE MINUTE Start TOTAL- MONDAY SIMULATION DURATION UNTIL Copy switching to other Switching COPY SAVE days of the week. time for The day of the week one day ADD TUESDAY... - Page 16 Press MENU. † Select PROGRAM and press OK to confirm. † Select CHANNEL and press OK to confirm. † Select NEW and press OK to confirm. † Select NIGHT SWITCH OFF or DAY SWITCH ON and press † OK to confirm. Set selected switching times (hours, minutes, day) and †...
-
Page 17: Setting Summer/Winter Time
Setting summer/winter time MENU TIME/DATE TIME DATE OFFSET SU-WI SU-WI EUROPA WEEK DAY SU-WI EUROPE WEST SU-WI EUROPE EAST Press MENU. † Select TIME/DAT and press OK to confirm. † Select SO-WI and press OK to confirm. † Select region for the SO-WI time and press OK to confirm. †... -
Page 18: Switch Permanent On/Off
Switch Permanent ON/OFF MENU MANUAL CHANNEL C1 PERM ON PERM OFF OVERR ON HOLIDAY Press MENU. † Select MANUAL and press OK to confirm. † Select CHANNEL and press OK to confirm. † Select PERMANENT ON or PERMANENT OFF and press OK †... -
Page 19: Setting Holiday Function
Setting holiday function MENU CHANNEL C1 MANUAL PERM ON PERM OFF OVERR ON HOLIDAY BEGIN HOLIDAY END HOLIDAY Press MENU. † Select MANUAL and press OK to confirm. † Select CHANNEL and press OK to confirm. † Select HOLIDAY and press OK to confirm. †... -
Page 20: Activate Pin-Code
Activate PIN-Code The PIN code is set in OPTIONS via the menu. L If you have lost the PIN, please call the Theben Hotline. L Have the serial number ready! MENU OPTIONS OPERATING HOUR EXT INPUT LANGAGE NO PIN FACTORY... -
Page 21: Operating Hour Counter
Activate manual switching Briefly press both keys simultaneously. † Activate permanent switching Simultaneously press both keys for 2 seconds. † Cancelling manual/permanent switching Press both keys simultaneously. † Operating hour counter The operating hours of the channel (relay) are displayed and deleted in the OPTIONS menu. -
Page 22: Using Bluetooth Obelisk Top3
Using Bluetooth OBELISK top3 All functions can also be transferred to the time switch using the Bluetooth OBELISK top3 memory card (9070130). Copy OBELISK → Time switch Copies all switching programs and settings from the time switch to the memory card. Starting OBELISK program. Copy Time switch →... -
Page 23: Connect Time Switch, Bluetooth Obelisk Top3 And Smartphone (Via App)
OBELISK BLUETOOTH COPY COPY TSWI CHECK OBELISK -> -> OBELISK OBELISK OBELISK TSWI OVERWRITE COPY ALL DATA COPY PROGRAM Connect time switch, Bluetooth OBELISK top3 and smartphone (via app) The devices in the top3 range can be programmed using an app (for Android, iOS) on a mobile end device. - Page 24 Press „Connect“. † Press OK on the time switch. † ▻ The display shows BLUETOOTH ACTIVE. Press „Close“ in the app within 30 s. †...
-
Page 25: Resetting The Time Switch
Now, for example, projects can be created and uploaded. Resetting the time switch Press the 4 buttons simultaneously. † ▻ You can choose between RETAIN PROGRAM and DELETE PROGRAM. -
Page 26: Technical Data
Min. switching capacity: 10 mA/230 V AC 100 mA/24 V AC/DC Switch output: Switching of any phase is per- mitted (SELEKTA 174 top3). SELEKTA 170 top3: Suitable for switching SELV (Safe Extra-Low Voltage). Protection rating: IP 20 in accordance with EN 60529... -
Page 27: Cleaning And Service
Fluorescent lamps (LLB low-loss ballasts): uncorrected 2600 VA series-corrected 2600 VA parallel-corrected 1300 VA (130 µF) Compact fluorescent lamps 1100 W (EB) LED-lamps (< 2 W) 50 W LED-lamps (> 2 W) 600 W Bluetooth OBELISK top3: – Protection rating: IP 40 –... -
Page 28: Dimensional Drawings
8. Dimensional drawings 69,2 35,8 63,7 52,9* 76,2* 9. Contact Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Tel. +49 7474 692-0 Fax +49 7474 692-150 Hotline Tel. +49 7474 692-369 hotline@theben.de Addresses, telephone numbers etc. www.theben.de...
