5. Device description

Display & buttons
Programmed
0
ON times
Date display
Channel status
ON = On
OFF = Off
Display of the active buttons
with the relevant function
MENU

MENU
– Activate screen
– Open menu
– Cancel menu
– ESC
(leave menu)
Operating instructions
1. Read text lines
Flashing text/symbol
is a prompt
2. Make a decision
NO
YES
Change/
Confirmation
select
press
press
OK
t u
Sunrise/sunset
6 12 18 24
display
Time display
Days of the week
from 1 to 7
OK

ƒ
„ OK
–Store
selection
  
–Confirm
Selection options
selection
are displayed

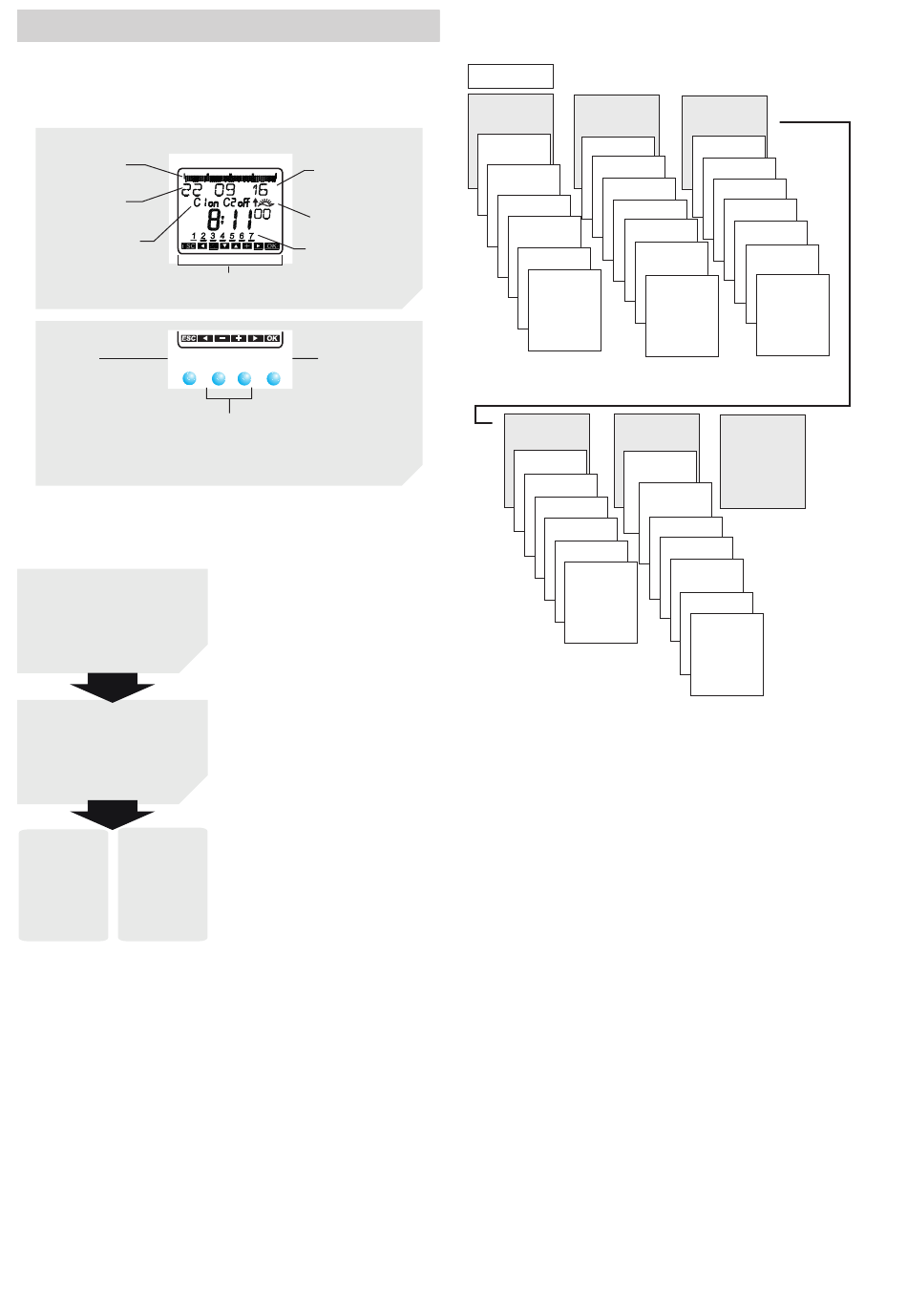

Overview of menu selection

MENU
ASTRO PROGRAM
u
ASTRO-
CHANNEL C1
TIMES
NEW
TOTAL
SIMULATION CHECK
OFFSET
MODIFY
ASTRO-
MODE
LOCATION
END
u u
MANUAL OPTIONS
CHANNEL C1
OPERATING
PERM ON
PERM OFF
OVERR ON
HOLIDAY
END
TIME/DATE
u u
TIME
SET DATE
SU-WI
WEEK DAY
DELETE
FORM DATE
TOTAL
FORM TIME
SIMULATION
END
END
u
END
HOUR
LCD-ILLUMI-
NATION
LANGUAGE
PIN
FACTORY
SETTINGS
INFO
END
