3

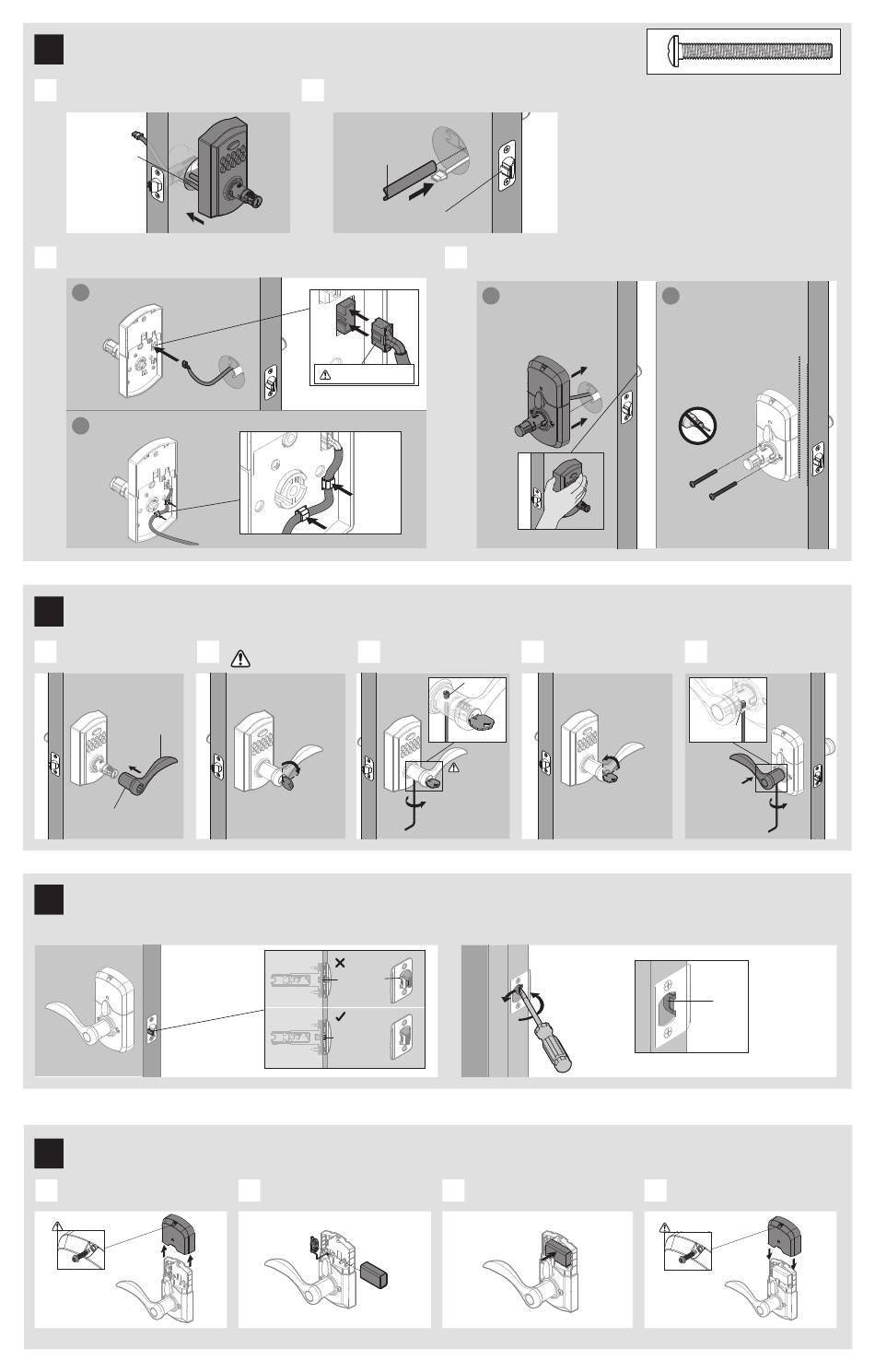

Install the exterior keypad, spindle, and interior assembly
A
Install exterior keypad.
cable goes
under latch
C
Connect and secure cable to interior assembly.
a
Connect cable.
K
b
Route cable through clips.
4
Install levers
A
Install exterior lever.
Lever handle
faces away
from the latch.
J1 or
J2
Hole on lever
faces down.
5
Test latch operation
Close door, test latch operation and make adjustments as needed:
The small bolt of the
latch should not enter
the strike hole. If it
enters the strike hole,
reposition strike.
6
Install battery
A
Remove interior cover.
L
To remove the
interior cover,
you must remove
the security screw
on the cover.
B
Install spindle.
G
Red side must face left.
Ensure tight cable connection.
B C
Insert key and
turn 90° clockwise.
small bolt in
strike hole
small bolt NOT
in strike hole
B
Connect 9V battery.
rounded edge
faces latch
F
latch
D
Install interior assembly and secure with mounting screws.
a
Install interior assembly
while holding the exterior
assembly. Make sure the
spindle fully engages with
the interior assembly.
K
Hold exterior assembly.
D
Tighten pre-installed set screw
to secure exterior lever.
set
screw
H
To access
the hidden
pre-installed set
screw on the
lock, the key
H
must be turned
horizontal.
C
Secure battery into interior
assembly.
M
2 / 4
68221
actual
size
b
Secure interior assembly
with mounting screws.
Ensure both interior and
x e
parallel to edge of door
Q (2x)
Note:
Tighten screws evenly
and do not overtighten .
E
Turn key back to vertical
position to remove it.
Tighten
pre-installed
set screw.
If latch is loose in the
strike, adjust the strike
tab so it grips the latch
bolt better when the
door is closed.
D
Reinstall battery cover.
Replace the
security screw
on the cover.
Q
e t i r r o s a e s m b i l s e a e r
before securing.
Install and secure
interior lever.
set
H
screw
J1 or
J2
H
tab
