Model740B

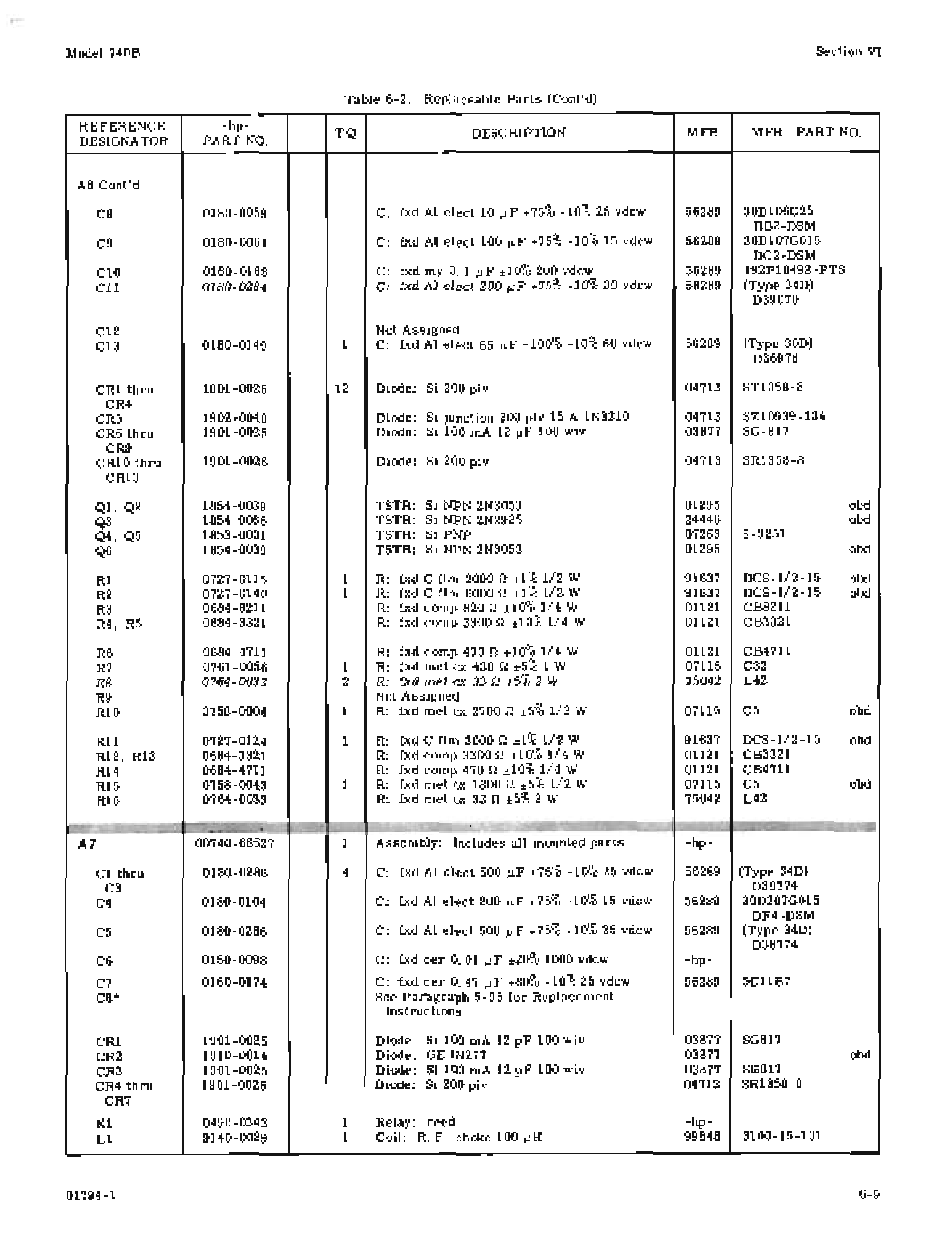

Table 6-2. Replaceable Parts (Cont'd)
Section VI
REFERENCE -hp-
TQ DESCRIPTION
MFR. MFR. PART NO.
DESIGNATOR PART NO.
A6 Cont'd
C8 0180-0059
C: fxd Al elect 10 J-LF +75% -10% 25 vdcw
56289 30Dl06G25
BB2-DSM
C9
0180-0061
C: fxd Al elect 100 J-LF +75% -10% 15 vdcw
56289 30Dl07G015
DC2-DSM
CI0 0160-0168
C: fxd·my O. 1 J-LF ±10% 200 vdcw
56289 192PI0492-PTS
C11
0180-0284
C: fxd Al elect 200 J-LF +75% -10% 30 vdcw
56289 (Type 34D)
D39070
C12
Not Assigned
C13
0180-0149
1 C: fxd Al elect 65 J-LF +100% -10% 60 vdcw
56289
(Type 30D)
D36978
CRI thru 1901-0026
12 Diode: Si 200 piv
04713
ST1358-8
CR4
CR5
1902-0048
Diode: Si junction 200 piv 15 A IN3210
04713 SZ10939-134
CR6 thru 1901-0025
Diode: Si 100 rnA 12 pF 100 wiv 03877
SG-817
CR9
CRI0 thru
1901-0026
Diode: Si 200 piv
04713 SR1358-8
CR13
Ql, Q2
1854-0039
TSTR: Si NPN 2N3053
01295 obd
Q3
1854-0066
TSTR: Si NPN 2N2925
24446 obd
Q4, Q5 1853-0001
TSTR: Si PNP
07263 S-3251
Q6
1854-0039
TSTR: Si NPN 2N3053
01295 obd
Rl
0727-0115
1 R: fxd C flm 2000
Q
±1 % 1/2 W
91637 DCS-l/2-15 obd
R2
0727-0140
1 R: fxd C flm 6000
Q
±1% 1/2 W
91637 DCS-l/2-15 obd
R3
0684-8211
R: fxd comp 820
Q
±10% 1/4 W
01121 CB8211
R4, R5 0684-3321
R: fxd comp 3300
Q
±10% 1/4 W 01121 CB3321
R6
0684-4711
R: fxd comp 470
Q
±10% 1/4 W
01121 CB4711
R7
0761-0056
1 R: fxd met ox 430
Q
±5% 1 W
07115 C32
R8 0764-0033
2
R: fxd met ox 33
Q
±5% 2 W 75042 L42
R9
Not Assigned
RIO
0758-000A 1
R: fxd met ox 2700
Q
±5% 1/2 W
07115 C5 obd
R11
0727-0124
1 R: fxd C flm 3000
Q
±1% 1/2 W
91637 DCS-l/2-15 obd
R12, R13 0684-3321
R: fxd comp 3300
Q
±10% 1/4 W 01121 CB3321
R14 0684-4711
R: fxd comp 470
Q
±10% 1/4 W
01121
CB4711
R15
0758-0043 1
R: fxd met ox 1800
Q
±5% 1/2 W
07115 C5 obd
R16 0764-0033
R: fxd 'met ox 33
Q
±5% 2 W 75042 L42
1-:--
.
- , -
.--
, -
A7 00740-66527
1
Assembly: Includes all mounted parts
-hp-
Cl thru
0180--0286 4
C: fxd Al elect 500 J-LF +75% -10% 25 vdcw
56289 (Type 34D)
C3
D38774
C4
0180-0104
C: fxd Al elect 200 J-LF +75% -10% 15 vdcw 56289
30D207G015
DF4-DSM
C5 0180-0286
C: fxd Al elect 500 J-LF +75% -10% 25 vdcw 56289
(Type 340)
D38774
C6
0150-0098
C: fxd cer 0.01 J-LF ±20% 1000 vdcw
-hp-
C7
0160-0174
C: ixd cer 0.47 J-LF +80% -10% 25 vdcw
56289 5C11B7
C8*
See Par"agraph 5-95 for Replacement
Instructions
CRI 1901-0025
Diode: Si 100 rnA 12 pF 100 wiv 03877 SG817
CR2
1910-0014
Diode: GE IN277 03877
obd
CR3
1901-0025
Diode: Si 100 inA 12 pF 100 wiv
03877 SG817
CR4 thru
1901-0026
Diode: Si 200 piv
04713 SR1358-8
CR7
Kl
0490-0343
1 Relay: reed
-hp-
Ll
9140-0029 1 Coil: R. F. choke 100 J-LH
99848 3100-15-101
01794-1
6-9
