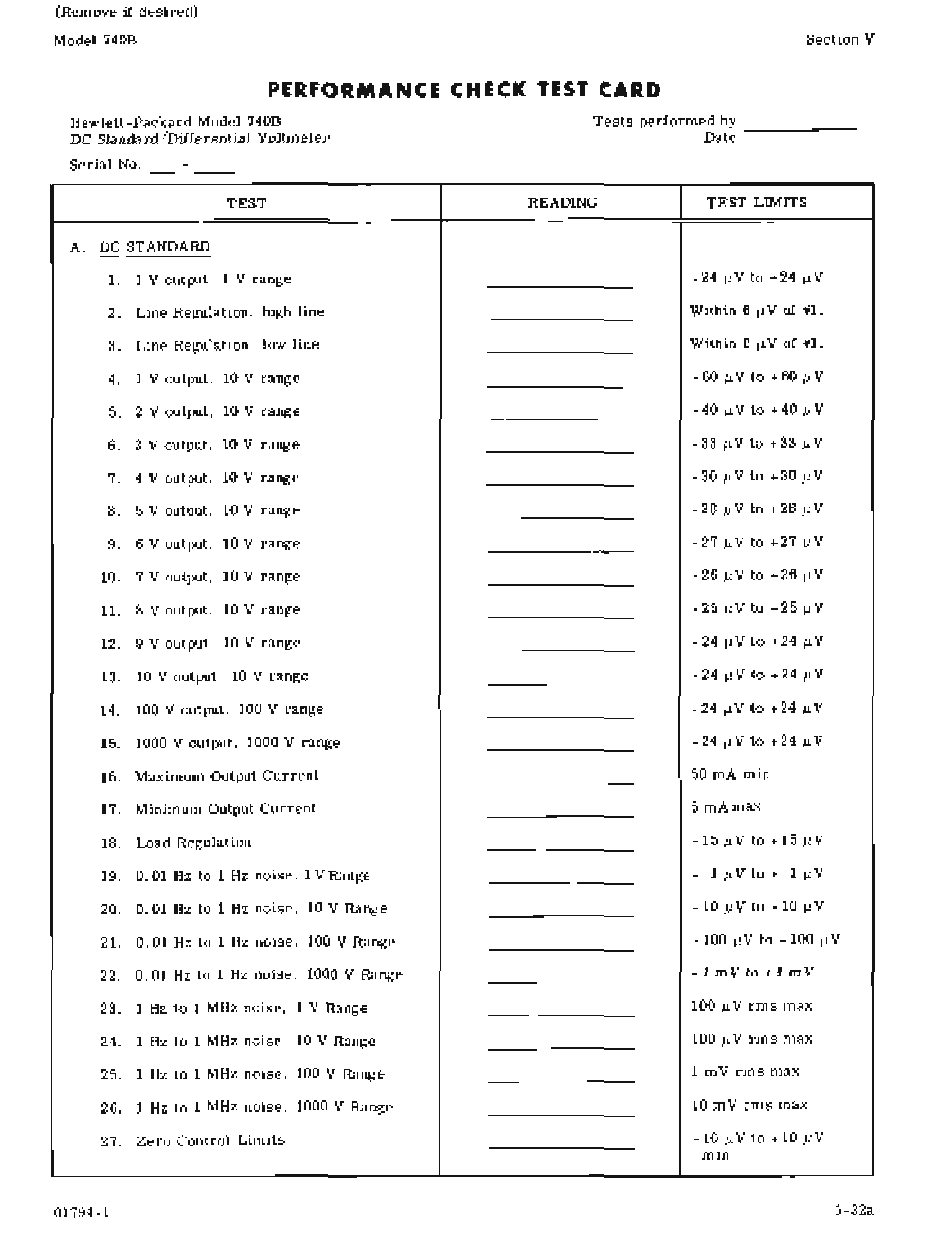

HP 740B Operating And Service Manual page 69

(Remove if desired)
Model 740B
PERFORMANCE CHECK TEST CARD
Section V
Hewlett-Packard Model 740B
DC Standard/Differential Voltmeter
Serial No.
Tests performed by
D a t e - - - - - -
,....
TEST
READING TEST LIMITS
A. DC STANDARD
1.
1 V output, 1 V range
-24 JlV to +24 JlV
2.
Line Regulation, high line
Within 6 JlV of #1.
3.
Line Regulation, low line
Within 6 JlV of #1.
4. 1 V output, 10 V range
- 60 Jl V to + 60 Jl V
5. 2 V output, 10 V range - 40 Jl V to + 40 Jl V
6. 3 V output, 10 V range
- 33
JlV
to +33
JlV
7.
4 V output, 10 V range
- 30
JlV
to +30
JlV
8. 5 V output, 10 V range
-28 JlV to +28 JlV
9.
6 V output, 10 V range
-27 JlV to +27 JlV
10. 7 V output, 10 V range
- 26
Jl
V to + 26
Jl
V
11. 8 V output, 10 V range -25 JlV to +25 JlV
12. 9 V output, 10 V range
- 24 JlV to +24 JlV
13. 10 V output, 10 V range -24 JlV
to +24
JlV
14. 100 V output, 100 V range - 24 JlV to +24 JlV
15. 1000 V output, 1000 V range
- 24 JlV to +24 JlV
16. Maximum Output Current
50 rnA min
17. Minimum Output Current
5 rnA max
18. Load Regulation
-15 JlV to +15 JlV
19. 0.01 Hz to 1 Hz noise, 1 V Range
-
1JlVto+ 1JlV
20. 0.01 Hz to 1 Hz noise, 10 V Range
-10 Jl V to + 10 Jl V
21. 0.01 Hz to 1 Hz noise, 100 V Range
-100 JlV to +100 JlV
22. 0.01 Hz to 1 Hz noise, 1000 V Range
-1 mV to +1 mV
23.
1 Hz to 1 MHz noise, 1 V Range
100 JlV
rms max
24. 1 Hz to 1 MHz noise, 10 V Range
100 JlV
rms max
25.
1 Hz to 1 MHz noise, 100 V Range
1 mV rms max
26.
1 Hz to 1 MHz noise, 1000 V Range
10 mV rms max
27.
Zero Control Limits
-10 JlV to +10 JlV
min
