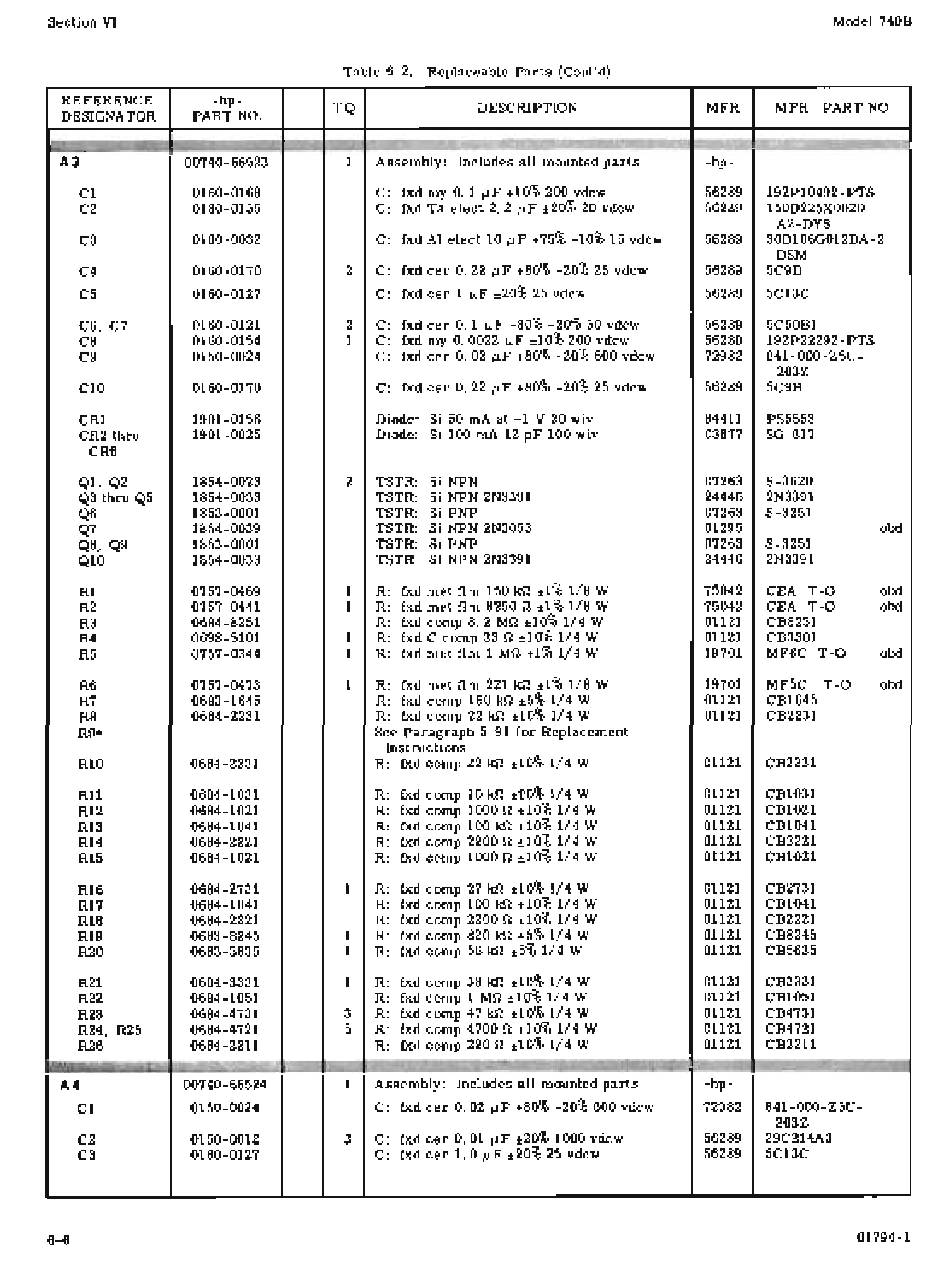

HP 740B Operating And Service Manual page 76

Section VI
Table 6-2. Replaceable Parts (Cont'd)
Model 740B
REFERENCE
-hp-
TQ
DESCRIPTION MFR.
MFR. PART NO.
DESIGNATOR PART NO.
~
A3 00740-66523 1 Assembly: Includes all mounted parts -hp-
Cl
0160-0168
C: fxd my 0.1
/IF
±to% 200 vdcw 56289 192PI0492-PTS
C2
0180-0155 C: fxd Ta elect 2.2
/IF
±20% 20 vdcw 56289 150D225X0020
A2-DYS
CS
0180-0032 C: fxd Al elect 10 /IF +75% -10% 15 vdcw
56289 30Dl06G012BA-2
DSM
C4
0160-0170 2
C: fxd cer O. 22
/IF
+80% -20% 25 vdcw 56289 5C9B
C5
0160-0127 C: fxd cer 1 /IF ±20% 25 vdcw 56289 5C13C
C6, C7 0160-0121 2
C: fxd cer O. 1
/IF
+80% -20% 50 vdcw 56289 5C50Bl
C8
0160-0154 1 C: fxd my 0.0022 /IF ±10% 200 vdcw 56289 192P22292-PTS
C9
0150-0024
C: fxd cer O. 02
/IF
+80% -20% 600 vdcw 72982 841-000-Z5U-
203Z
CI0
0160-0170 C: fxd cer O. 22
/IF
+80% -20% 25 vdcw 56289 5C9B
CRI
1901-0156 Diode: Si 50 rnA at +1 V 20 wiv
84411
PS5553
CR2 thru
1901-0025 Diode: Si 100 rnA 12 pF 100 wiv 03877 SG-817
CR6
Ql, Q2 1854-0023 2 TSTR: Si NPN
07263 S-3620
Q3 thru Q5
1854-0033 TSTR: Si NPN 2N3391
24446 2N3391
Q6
1853-0001 TSTR: SiPNP
07263 S-3251
Q7
1854-0039 TSTR: Si NPN 2N3053 01295 obd
Q8, Q9
1853-0001 TSTR: Si PNP 07263 S-3251
QI0 1854-0033
TSTR: Si NPN 2N3391 24446 2N3391
Rl 0757-0469
1 R: fxd met flm 150 kn ±1% 1/8 W
75042
CEA T-O
obd
R2
0757-0441 1
R: fxd met flm 8250 n ±1 % 1/8 W 75042 CEA T-O obd
R3 0684-8251
R: fxd comp 8.2 Mn ±10% 1/4 W 01121 CB8251
R4
0698-5101 1 R: fxd C comp 33 n ±10% 1/4 W
01121 CB3301
R5
0757-0344 1 R: fxd met flm 1 Mn ±1% 1/4 W
19701 MF6C T-O obd
R6
0757-0473 1 R: fxd met flm 221 kn ±1% 1/8 W 19701 MF5C T~O obd
R7
0683-1645 R: fxd comp 160 kn ±5% 1/4 W
01121 CB1645
R8 0684-2231
R: fxd comp 22 kn ±10% 1/4 W 01121 CB2231
R9*
See Paragraph 5-91 for Replacement
Instructions
RIO
0684-2231 R: fxd comp 22 kn ±10% 1/4 W
01121 CB2231
R11
0684-1031 R: fxd comp 10 kn ±fO% 1/4 W
01121 CBI031
R12
0684-1021 R: fxd comp 1000 n ±10% 1/4 W
01121 CBI021
R13
0684-1041
R: fxd comp 100 kn ±10% 1/4 W 01121 CBI041
R14
0684-2221 R: fxd comp 2200 n ±10% 1/4 W 01121 CB2221
R15
0684-1021 R: fxd comp 1000 n ±10% 1/4 W
01121 CBI021
R16 0684-2731 1
R: fxd comp 27 kn ±10% 1/4 W 01121 CB2731
R17
0684-1041
R: fxd comp 100 kn ±10% 1/4 W
01121 CBI041
R18
0684-2221
R: fxd comp 2200 n ±10% 1/4 W 01121 CB2221
R19 0683-8245 1
R: fxd comp 820 kn ±5% 1/4 W 01121 CB8245
R20 0683-5635
1 R: fxd comp 56 kn ±5% 1/4 W
01121 CB5635
R21
0684-3331 1 R: fxd comp 33 kn ±10% 1/4 W 01121 CB3331
R22
0684-1051 R: fxd comp 1 Mn ±10% 1/4 W
01121 CBl051
R23
0684-4731 3 R: fxd comp 47 kn ±10% 1/4 W
01121 CB4731
R24, R25 0684-4721 5
R: fxd comp 4700 n ±10% 1/4 W 01121 CB4721
R26 0684-2211
R: fxd comp 220 n ±10% 1/4 W
01121 CB2211
A4
00740-66524 1 Assembly: Includes all mounted parts
-hp-
CI
0150-0024
C: fxd cer 0.02
/IF
+80% -20% 600 vdcw 72982 841-000-Z5U-
203Z
C2
0150-0012 3 C: fxd cer 0.01
/IF
±20% 1000 vdcw 56289 29C214A3
C3
0160-0127 C: fxd cer
1.
0 /IF ±20% 25 vdcw
56289 5C13C
6-6
01794-1
