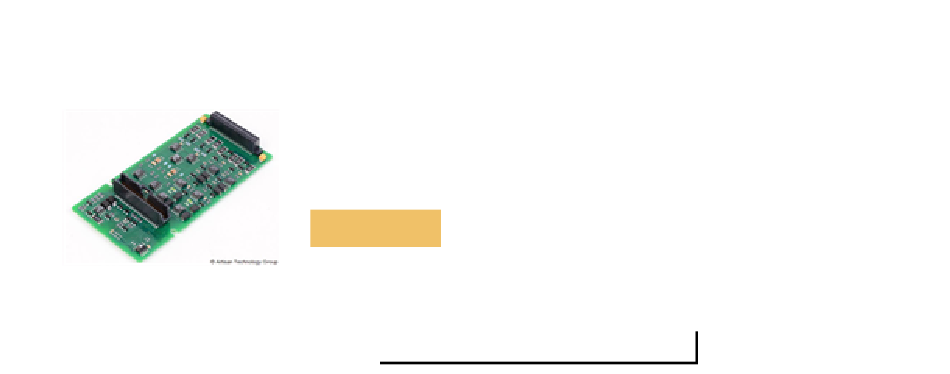

HP E1518A 4-Channel of 4-Wire Resistance Measurement SCP Module Limited Availability Used and in Excellent Condition Open Web Page https://www.artisantg.com/52336-28 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
Page 2
Signal Conditioning Plug-on HP E1518A User’s Manual Enclosed is the User’ s Manual for t he HP E1518A Signal Conditioning Plug-on. Insert this manual in your HP E1413/E1313 or HP E1415 manual behind the “ Signal Conditioning Plug-ons” divider. This SCP w ill operate in: An HP E1413/E1313 w ith Flash revision A.06.02 or later, and Driver...
Resistance Measurement Signal Conditioning Plug-on Introduction The HP E1518 is a Signal Conditioning Plug-on (SCP) that provides four excitation current sources and four corresponding sense input channels. Each current source can be programmed to provide either 30µA, or 488µA. Each sense input provides a fixed-gain amplifier (X16) with fixed bandwidth filtering (7Hz).
(the SCP’s last 4 channels). Figure 1 shows the general method of connection for both 4-wire and 2-wire connections. Figure 1 Wiring for Resistance and Temperature 4 HP E1518 Resistance SCP Field Wiring Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 6
SCP. Use the appropriate label for the type of Terminal Module you have: • For the HP E1413C and HP E1415A, use the label sheet marked C-size (Figure 2). • For the HP E1313A, use the label sheet marked B-size (Figures 3 and 4).
Page 7
Figure 3 HP E1518 B-size Terminal Module Connections (Ch 00-31) Figure 4 HP E1518 B-size Terminal Module Connections (Ch 32-63) Figure 5 HP E1413A/B Terminal Module Connections 6 HP E1518 Resistance SCP Connecting To The Terminal Module Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Programming With SCPI Commands The SCPI commands shown here are covered in Chapters 3 and 5 of your HP E1413/E1313 manual or Chapters 3 and 6 of your HP E1415 manual. This section will relate those commands to the parameter values which are specific to this SCP.
Page 9
1 or 0 Querying the Filter While the HP E1518 does not provide programmable cutoff frequency the filter frequency can be queried. The response to this query will always be 7. Cutoff Frequency To query any channel for its cutoff frequency use the INPut:FILTer[:LPASs]:FREQuency? (@<channel>) command.
15 enter statement here Querying the While the HP E1508’s amplifiers have fixed gain, the channel gain can be queried. The response to this query will always be 16. To query any channel Channel Gain to determine its gain setting use the INPut:GAIN? (@<channel>) command.
Page 11
0, 8, 16, 24, 32, 40, 48, and 56 To enable Open Transducer Detection on all 4 sense channels on SCP 1: DIAG:OTD ON, (@112) 10 HP E1518 Resistance SCP Programming With SCPI Commands Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 12
State • channel must specify a single one of the SCP’s last 4 channels. To check the state of OTD for the HP E1518A in SCP position 3 send DIAG:OTD? (@128) ch is first sense chan on SCP 3 enter statement here...
Page 14
488µA output on all 4 Chs Current Source Specifications The general specifications for the HP E1518 reflect the performance of the current source section by itself. The resistance performance specification reflects the combined performance of the HP E1413/E1313 or HP E1415 and the SCP.
Page 15
.015 Ω .917 Ω .057 Ω 3.70 Ω .231 Ω * Specs apply only with Open Transducer Detect OFF 14 HP E1518 Resistance SCP Current Source Specifications Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 16
Sense Channel Specifications These specifications for the sense section reflect the combined performance of the HP E1413/E1313 or HP E1415 and the HP E1518 Signal Conditioning Plug-on. These specifications are not to be added to those presented in the HP E1413/E1313 or HP E1415 User’s Manual.
Page 17
The temperature accuracy specifications include instrument and firmware (simplified specifications, see linearization errors. The linearization algorithm used is based on the IPTS-68(78) temperature accuracy graphs in HP standard transducer curves. Add your transducer accuracy to determine total E1413/E1313 manual for details) measurement error.
Page 18
0 to 30 °C 30 to 60 °C 60 to 90 °C 90 to 115 °C A/D Filter 0.015°C 0.016°C 0.018°C 0.022°C Sense Channel Specifications HP E1518 Resistance SCP 17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 19
Notes 18 HP E1518 Resistance SCP Sense Channel Specifications Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
