Section V

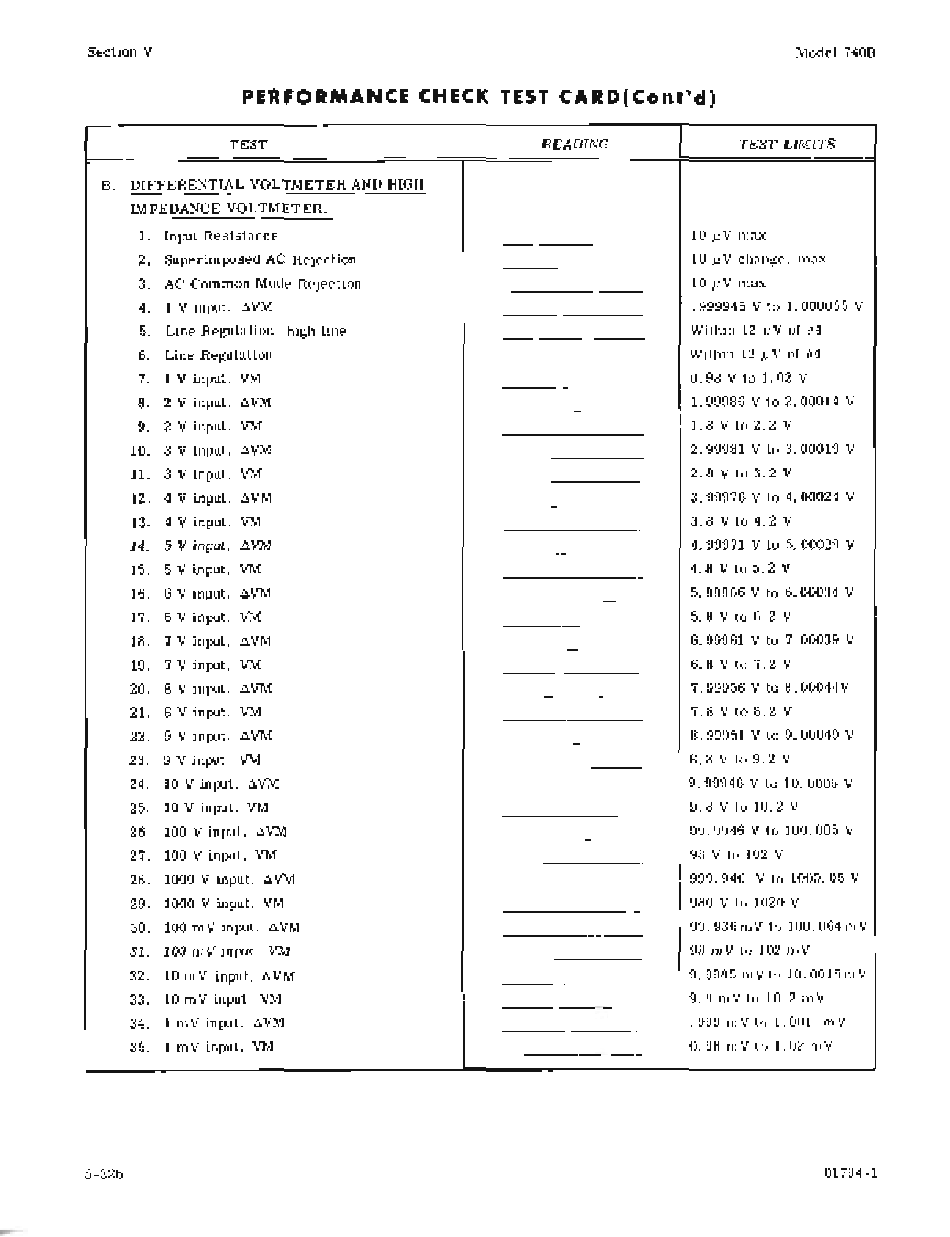

PERFORMANCE CHECK TEST CARD(Cont'd)
Model 740B
TEST
READING TEST LIMITS
B. DIFFERENTIAL VOLTMETER AND HIGH
IMPEDANCE VOLTMETER.
1. Input Resistance 10 IlV max
2. Superimposed AC Rejection
10 IlV
change, max
3. AC Common Mode Rejection
10 IlV
max
4. 1 V input, LWM .999945 V to 1. 000055 V
5. Line Regulation, high line Within 12 IlV of #4
6. Line Regulation Within l<!
11
V of #4
7. 1 V input, VM
0.98 V to 1. 02 V
8. 2 V input, .:lVM
1. 99986 V to 2.00014 V
9. 2 V input, VM
1. 8 V to 2.2 V
10. 3 V input, .:lVM
2.99981 V to 3.00019 V
11. 3 V input, VM 2.8 V to 3.2 V
12. 4 V input, .:lVM
3.99976 V to 4.00024 V
13. 4 V input, VM 3.8 V to 4.2 V
14.
5 V input, .:lVM 4.99971 V to 5.00029 V
15. 5 V input, VM 4.8 V to 5.2 V
16. 6 V input, .:lVM 5.99966 V to 6.00034 V
17. 6 V input, VM 5.8 V to 6.2 V
18. 7 V input, .:lVM 6.99961 V to 7.00039 V
19. 7 V input, VM 6.8 V to 7.2 V
20. 8 V input, .:lVM
7.99956 V to 8.00044V
21. 8 V input, VM 7.8 V to 8.2 V
22. 9 V input, .:lVM 8.99951 V to 9.00049 V
23.
9 V input, VM 8.8 V to 9.2 V
24. 10 V input, .:lVM 9.99946 V to 10.0005 V
25. 10 V input, VM 9.8 V to 10.2 V
26. 100 V input, .:lVM 99.9946 V lo 100.005 V
27. 100 V input, VM
98 V to 102 V
28.
1000 V input, .:lVM 999.946 V lo 1000.05 V
29. 1000 V input, VM
980 V to 1020 V.
30. 100 mV input, .:lVM 99. 936mV to 100. 064mV
31. 100 mV input, VM
98 mV lo 102 mV
32. 10 mV input, .:lVM
9.9985 mVlo 10.0015mV
33.
10 mV input, VM
9. 8 m V to 10. 2 m V
34. 1 mV input, .:lVM .999 mV lo 1. 001 mV
35.
1 mV input, VM
0.98 mV lo 1.02 mV
5-32b 01794-1
