Model740B

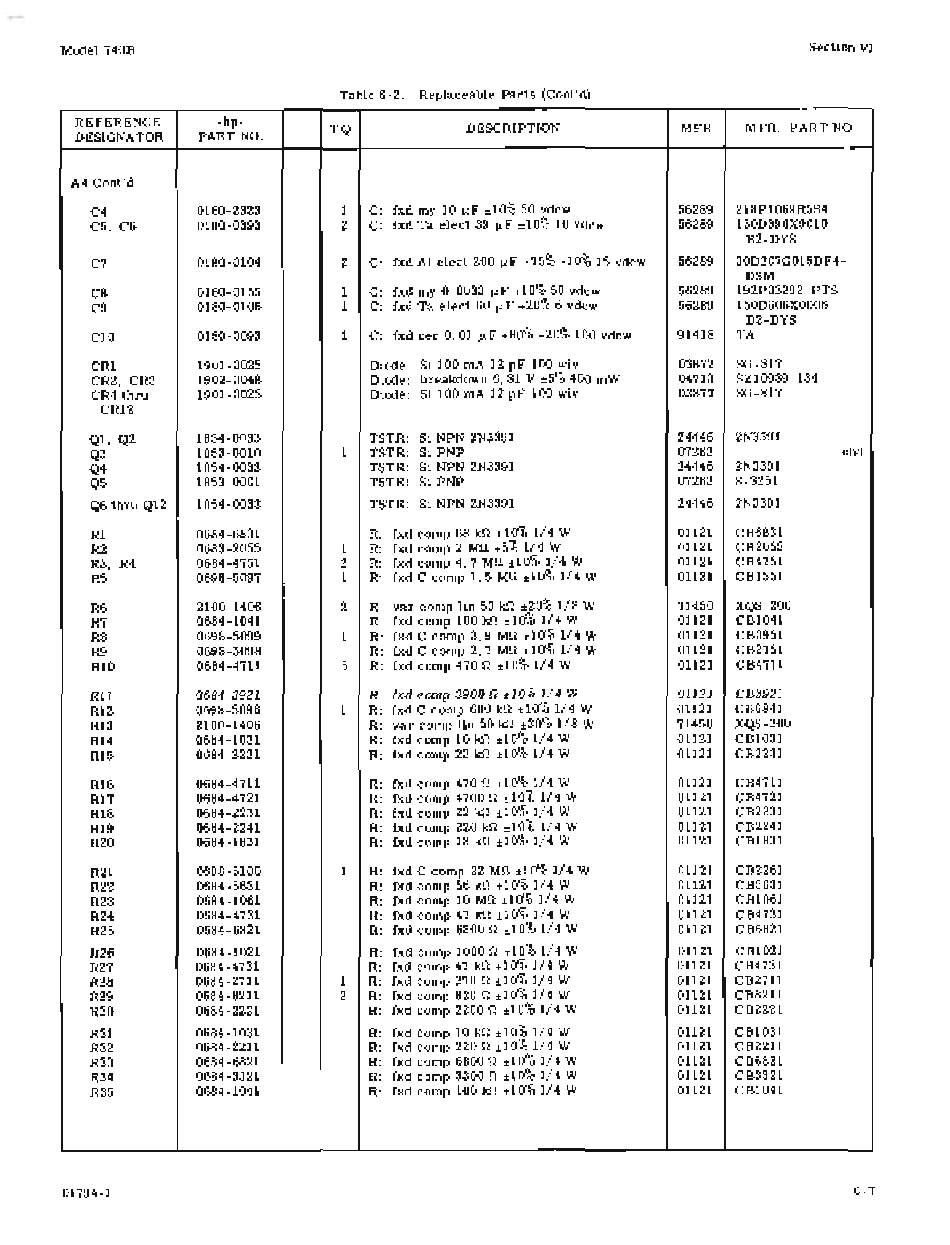

Table 6-2. Replaceable Parts (Cont'd)
Section VI
REFERENCE
-hp-
TQ DESCRIPTION
MFR. MFR. PART NO.
DESIGNATOR PART NO.
A4 Cont'd
C4
0160-2323 1 C: fxd my 10 J.J.F ±10% 50 vdcw
56289 218P1069R5S4
C5, C6
0180-0393 2
C: fxd Ta elect 39 J.J.F ±10% 10 vdcw 56289 150D396X9010
B2-DYS
C7
0180-0104 2
C: fxd Al elect 200 J.J.F +75% -10% 15 vdcw 56289 30D207G015DF4-
DSM
C8
0160-0155
1 C: fxd my 0.0033 J.J.F ±10% 50 vdcw
56289 192P33292-PTS
C9
0180-0106 1 C: fxd Ta elect 60 J.J.F ±20% 6 vdcw
56289 150D606XOO06
B2-DYS
CI0
0150-0093
1 C: fxd cer 0.01 J.J.F +80% -20% 100 vdcw
91418
TA
CRl
1901-0025
Diode: Si 100 rnA 12 pF 100 wiv 03877 SG-817
CR2, CR3
1902-0048
Diode: breakdown 6.81 V ±5% 400 mW 04713
SZ10939-134
CR4 thru
1901-0025 Diode: Si 100 rnA 12 pF 100 wiv
03877 SG-817
CR12
Ql, Q2
1854-0033 TSTR: Si NPN 2N3391
24446 2N3391
Q3
1853-0010 1 TSTR: Si PNP
07263 obd
Q4
1854-0033
TSTR: Si NPN 2N3391 24446
2N3391
Q5
1853-0001 TSTR: SiPNP
07263 S-3251
Q6 thru Q12 1854-0033
TSTR: Si NPN 2N3391 24446 2N3391
Rl
0684-6831 R: fxd comp 68 kQ ±10% 1/4 W
01121 CB6831
R2
0683-2055
1 R: fxd comp 2 MQ ±5% 1/4 W 01121 CB2055
R3, R4
0684-4751 2 R: fxd comp 4.7 MQ ±10% 1/4 W
01121 CB4751
R5
0698-5097 1
R: fxd C comp 1. 5 MQ ±10% 1/4 W 01121 CB1551
R6
2100-1406
2 R: var comp lin 50 kQ ±20% 1/8 W 71450
XQS-200
R7
0684-1041
R: fxd comp 100
kQ
±10% 1/4 W 01121 CBI041
R8
0698-5099 1
R: fxd C comp 3.9 MQ ±10% 1/4 W 01121 CB3951
R9
0698-5098
R: fxd C comp 2.7 MQ ±10% 1/4 W
01121 CB2751
R10 0684-4711
5 R: fxd comp 470 Q ±10% 1/4 W
01121 CB4711
R11
0684-3921
R: fxd comp 3900 Q ±10% 1/4 W 01121 CB3921
R12 0698-5096
1 R: fxd C comp 680 kQ ±10% 1/4 W 01121 CB6841
R13 2100-1406
R: var comp lin 50 kQ ±30% 1/8 W 71450
XQS-200
R14 0684-1031
R: fxd comp 10
kQ
±10% 1/4 W
01121 CBI031
R15 0684-2231
R: fxd comp 22
kQ
±10% 1/4 W
01121 CB2231
R16 0684-4711
R: fxd comp 470 Q ±10% 1/4 W 01121 CB4711
R17 0684-4721
R: fxd comp 4700 Q ±10% 1/4 W
01121 CB4721
R18
0684-2231
R: fxd comp 22
kQ
±10% 1/4 W 01121 CB2231
R19 0684-2241
R: fxd comp 220
kQ
±10% 1/4 W
01121 CB2241
R20
0684-1831
R: fxd comp 18 kQ ±10% 1/4 W 01121 CB1831
R21
0698-5100 1 R: fxd C comp 22 MQ ±10% 1/4 W
01121 CB2261
R22 0684-5631
R: fxd comp 56 kQ ±10% 1/4 W
01121 CB5631
R23
0684-1061
R: fxd comp 10 MQ ±10% 1/4 W 01121 CB1061
R24 0684-4731
R: fxd comp 47
kQ
±10% 1/4 W 01121 CB4731
R25 0684-6821
R: fxd comp 6800 Q ±10% 1/4 W
01121 CB6821
R26 0684-1021
R: fxd comp 1000 Q ±10% 1/4 W
01121 CBl021
R27
0684-4731
R: fxd comp 47 kQ ±10% 1/4 W 01121 CB4731
R28 0684-2711
1 R: fxd comp 270 Q ±10% 1/4 W 01121 CB2711
R29
0684-8211 2 R: fxd comp 820 Q ±10% 1/4 W
01121 CB8211
R30
0684-2221 R: fxd comp 2200 Q ±10% 1/4 W
01121 CB2221
R31 0684-1031
R: fxd comp 10 kQ ±10% 1/4 W
01121 CBI031
R32 0684-2211
R: fxd comp 220 Q ±10% 1/4 W 01121 CB2211
R33
0684-6821 R: fxd comp 6800 Q ±10% 1/4 W
01121 CB6821
R34
0684-3321
R: fxd comp 3300 Q ±10% 1/4 W 01121 CB3321
R35
0684-1041 R: fxd comp 100
kQ
±10% 1/4 W
01121 CB1041
01794-1
6-7
