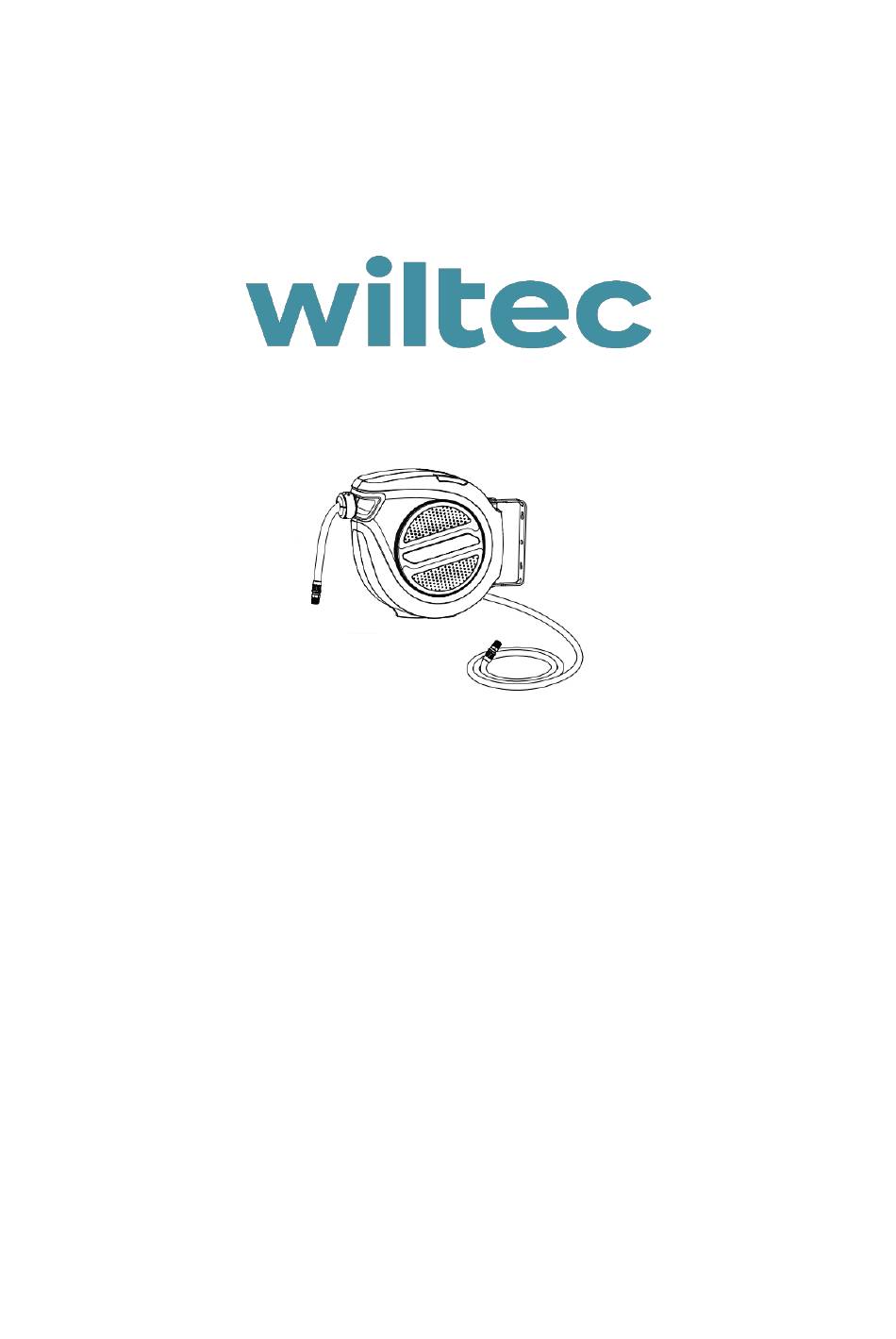

Operation Manual
Compressed-air Hose Reel
65435
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WilTec 65435
Summary of Contents for WilTec 65435
- Page 1 Operation Manual Compressed-air Hose Reel 65435 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 All rights re- served. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 • Avoid bending or kinking the hose excessively, as this can reduce its lifespan. • Ensure the hose reel is securely mounted to prevent it from falling. © by WilTec Wildanger Technik GmbH Item 65435 Page 3 http://www.wiltec.de 11 2024-1...
- Page 4 Wear eye protection when using power tools, such as an electric drill. Warning! Ensure there are no live electrical wires or pipes in the wall where you are drilling. © by WilTec Wildanger Technik GmbH Item 65435 Page 4 http://www.wiltec.de...
- Page 5 5 mm between the wall and the screw head. 6. Hang the hose reel on the screws (see illustration). 7. Tighten the screws securely. 8. Connect the inlet hose end to the compressor. © by WilTec Wildanger Technik GmbH Item 65435 Page 5 http://www.wiltec.de...
- Page 6 Using the hose reel 1. Pull the hose out to the desired length. The hose will automatically lock in this position. 2. Pressurise the hose reel and use your air-powered tool. © by WilTec Wildanger Technik GmbH Item 65435 Page 6 http://www.wiltec.de...
- Page 7 If the hose becomes tangled and cannot retract, slowly pull the hose past the tangled section. Then allow the hose to retract slowly while guiding it back into the reel. Always ensure the hose is clean and not twisted. © by WilTec Wildanger Technik GmbH Item 65435 Page 7 http://www.wiltec.de...
- Page 8 Remove tools from the extension hose after use. Do not allow tools to hang from the hose. Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 65435 Page 8 http://www.wiltec.de...
