Operating instructions

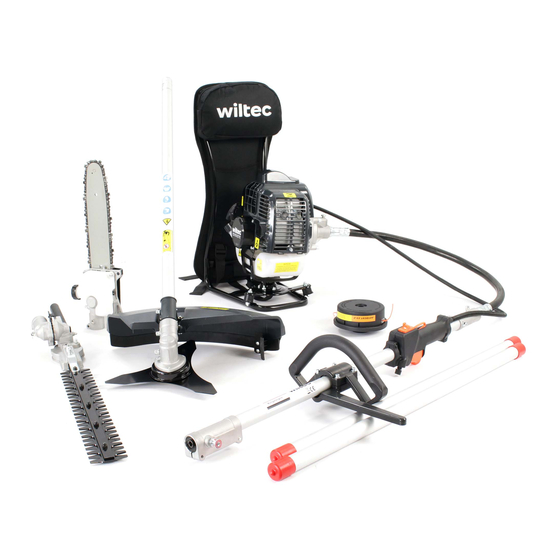

4-in-1 Multi Gardening Tool with 2-stroke Motor
64755
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec 64755
Summary of Contents for WilTec 64755

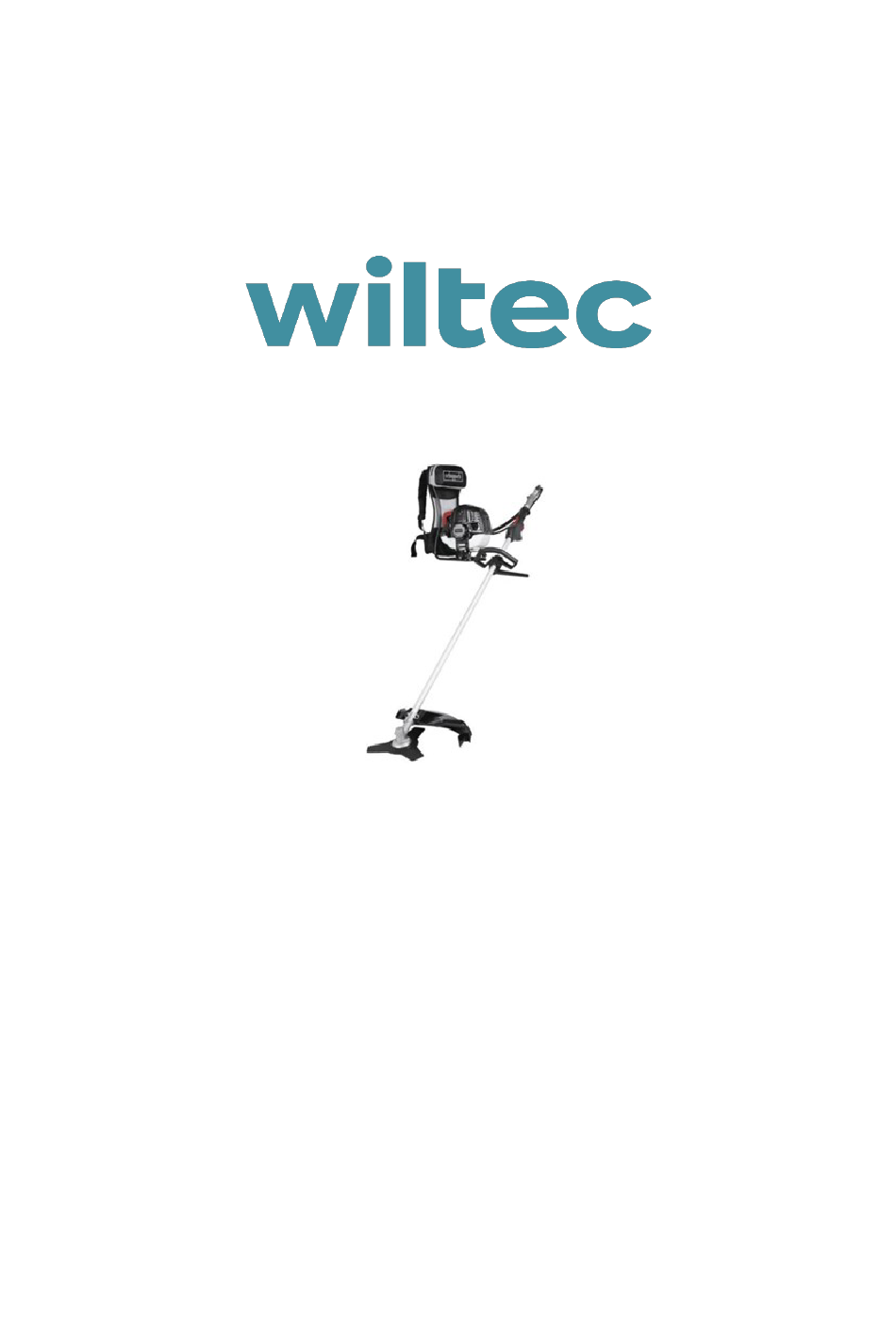

- Page 1 Operating instructions 4-in-1 Multi Gardening Tool with 2-stroke Motor 64755 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Children should be supervised to ensure that they do not play with the device. © by WilTec Wildanger Technik GmbH Item 64755 Page 3 http://www.wiltec.de...
- Page 4 Use unleaded petrol intended for use in motor vehicles and Fuel having an octane rating of 91 ([R+M]/2) or higher. Use engine oil for air-cooled two-stroke engines. © by WilTec Wildanger Technik GmbH Item 64755 Page 4 http://www.wiltec.de 09 2023-1...
- Page 5 Keep all bystanders, especially children, at least 15 m (50 ft) away from the work area. • Always comply with local laws and regulations governing the use of electrically powered tools. © by WilTec Wildanger Technik GmbH Item 64755 Page 5 http://www.wiltec.de...
- Page 6 All covers and guards must be in place before take-off. • Make sure that the spark-plug cap and the ignition cable are undamaged to avoid the risk of electric shock. © by WilTec Wildanger Technik GmbH Item 64755 Page 6 http://www.wiltec.de...
- Page 7 Make sure that the device is cleaned and fully serviced before long-term storage. • The transport lock must always be attached to the cutting tool when transporting or storing the device. © by WilTec Wildanger Technik GmbH Item 64755 Page 7 http://www.wiltec.de...
- Page 8 • If you notice discomfort, redness, and swelling on your fingers, followed by whitening and loss of sensation, you should consult your doctor before further exposure to cold and vibration. © by WilTec Wildanger Technik GmbH Item 64755 Page 8 http://www.wiltec.de...
- Page 9 Protective shield Petrol engine D-shaped handle Chain saw Fuel tank Drive-shaft assembly Hedge cutter Shoulder-strap connector Adaptor with knob Lower drive shaft Flexible-shaft assembly Nylon cutting head © by WilTec Wildanger Technik GmbH Item 64755 Page 9 http://www.wiltec.de 09 2023-1...
- Page 10 1.5 / 7000 1.3 / 7000 2.0 / 7000 Tank volume (ℓ) Empty weight (㎏) Carburettor Diaphragm Ignition Contact-free electronic ignition Starting procedure Pull starter Fuel Petrol-oil mixture (40:1) © by WilTec Wildanger Technik GmbH Item 64755 Page 10 http://www.wiltec.de 09 2023-1...
-
Page 11: Fitting The Handle
M5×25 screws (11) (10 = straight part of handle). ASSEMBLING THE DRIVE SHAFT Pull out the pin (12), connect the front and rear drive shaft assemblies, replace the pin, and tighten the handle (13). © by WilTec Wildanger Technik GmbH Item 64755 Page 11 http://www.wiltec.de 09 2023-1... - Page 12 Do not fill the device near an open fire or sparks. • Be sure to wipe off any spilled fuel before attempting to start the engine. • Do not try to refuel a hot engine. © by WilTec Wildanger Technik GmbH Item 64755 Page 12 http://www.wiltec.de 09 2023-1...
- Page 13 Do not use throttle If the fuel tank was empty, repeat steps 3 to 7 under “Starting a cold engine” after refilling. Turning off the engine Set the switch to “STOP.” © by WilTec Wildanger Technik GmbH Item 64755 Page 13 http://www.wiltec.de...
- Page 14 Note! Only adjust the carburettor when nec- essary. If you have problems with the carburettor, contact a specialist workshop. Improper adjust- ment may cause engine damage and invalidate the warranty. © by WilTec Wildanger Technik GmbH Item 64755 Page 14 http://www.wiltec.de 09 2023-1...
- Page 15 • Insert the flexible shaft into the coupling housing – turn the shaft back and forth at the same time. © by WilTec Wildanger Technik GmbH Item 64755 Page 15 http://www.wiltec.de 09 2023-1...
-
Page 16: Troubleshooting
Install a new spark plug with the correct spacing. • If you have a serious problem with the device, do not attempt to repair it yourself, but leave it to an expert. © by WilTec Wildanger Technik GmbH Item 64755 Page 16 http://www.wiltec.de... - Page 17 Retighten. Leakage in crankcase Remove. Compression normal Poor contact between Tighten spark-plug cap. high-voltage wire spark plug Failure of stop switch or Repair or replace. short circuit © by WilTec Wildanger Technik GmbH Item 64755 Page 17 http://www.wiltec.de 09 2023-1...
- Page 18 Clean. short circuit High-voltage wire dropped Reconnect. Important note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 64755 Page 18 http://www.wiltec.de...
