User's Manual
Hose Reel
64155–64157
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Table of Contents
Related Manuals for WilTec XPOtool 64155
Summary of Contents for WilTec XPOtool 64155

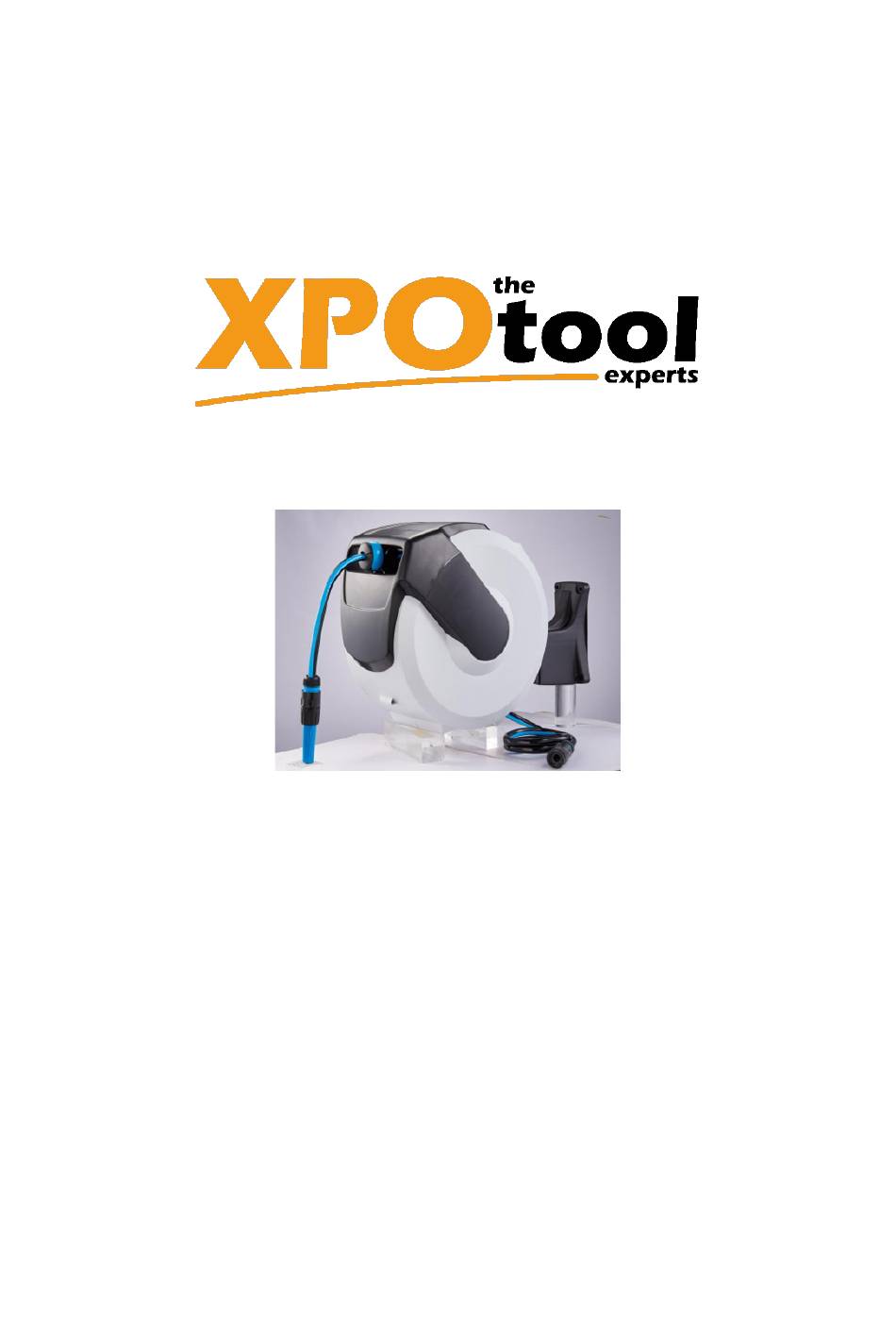

- Page 1 User’s Manual Hose Reel 64155–64157 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Introduction Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to always take some basic safety precautions when using this product. Please read this operating manual carefully and make sure that you understand it. Keep these operation instructions in a safe place.
- Page 4 Screw Washer Plastic dowel Technical specifications Item number 64155 61556 61557 Hose diameter (㎜) Length of inlet hose (m) Length of outlet hose (m) Max. operation pressure (bar) Choosing the best installation site This product can be mounted in many ways. It is important to choose the mounting spot carefully. on- sider the following points when mounting the reel to a certain surface: proximity of the source of water –...
- Page 5 Fixing the reel directly to wood Recommended tools • Masking tape • Bolt finder • Level • Electric drill machine • ⌀3-mm drill • ross-head screwdriver Steps Find the bolt with the help of the bolt finder and mark the point. 2.
- Page 6 3. Drill four holes in the mid of the template with a 10-mm wall drill. 4. Drive plastic dowels (B3) in the holes using a hammer or mallet. 5. Set the hose reel to the wall holder and secure it by inserting the fixing bolt.
- Page 7 • Always reel the hose up then it is not in use. Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 64155–64157 Page 7 The Tool Experts...
